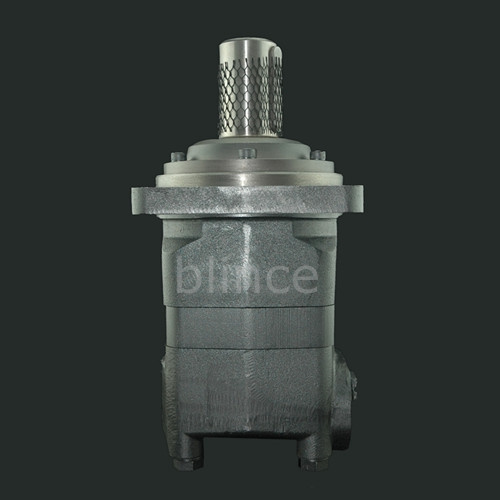

China Blince Bmv Omv630cc 800cc Heavy Duty High Torque Hydraulic Motor

Prod Model:	BMV800cc orbit motor
Markets:	North America,South America,Southeast Asia,Western Europe
Usage:	Hydraulic Oil
Certification:	ISO9001 CE
Motor Flange Shape:	Square and Rhombus Flange
Motor Material:	Cast Iron
Processing:	Forging & Cutting &Phosphating
Standard Or Nonstandard:	Standard
Motor Shafts:	Straight, Splined and Tapered
Warranty:	One Year
Motor Operate:	with Electrical Machine/Pump /Cyclinder/Valve/
Application:	Plastic Machine, Agriculture Machine
Type:	Hydraulic Power Units

Product Description

China BLINCE BMV OMV series heavy duty low speed high torque hydraulic motor

OMV series motor adapt the advanced Geroler gear set designed with disc distribution flow and high pressure. The unit can be supplied the individual variant in operating multifunction in accordance with requirement of applications.


Characteristic features:
* Advanced manufacturing devices for the Geroler gear set, which use low pressure of startup, provide smooth and reliable operation and high efficiency.
* The output shaft adapts in tapered roller bearings that permit high axial and radial forces. The case can offer capacities of high pressure and high torque in the wide of applications.
* Advanced design in disc distrbution flow, which can automatically compensate in operating with high volume efficiency and long life, provide smooth and reliable operation.

Flange 1: 4holes Φ 18 Square-flange Φ 200, Pilot Φ 160x11
Flange 2: 4 holes Φ 18 Wheel-flange Φ 224, pilot Φ 180x10

Shaft 1: Shaft Φ 50, paraller key 14x9x70
Shaft 2: Shaft Φ 53.975, splined key 16-DP8/16
Shaft 3: Shaft Φ 57.15 Parallel key 12.7x12.7x57.15

Port1: G1/2 Drain port: G1/4
Port2: 1-5/16-12UN, 9/16-18UNF

Type		OMV 315	OMV 400	OMV 500	OMV 630	OMV 800	OMV 1000
Displacement (cc/rev)		333	419	518	666	801	990
Max torque (n.m)	cont	920	1180	1460	1660	1880	2015
	int	1110	1410	1760	1940	2110	2280
Max pressure (Mpa)	cont	20	20	20	18	16	14
	int	24	24	24	21	18	16
Max speed rate (rpm)	cont	510	500	400	320	250	200
	int	630	600	480	380	300	240
Max flow (L/min)	cont	160	200	200	200	200	200
	int	200	240	240	240	240	240
Weight(kg)		31.8	32.6	33.5	34.9	36.5	38.6
