| Prod Model: |
V Series Single Pumps |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No: |
20V/25V/35V/45V |
| Type: |
Vane Pump |
| Acting Form: |
Single-Acting |
| Displacement: |
Quantitative Pump |
| Nominal Displacement(Ml/R): |
2-75 |
| Mounting Type: |
Flange Mounting |
| Allowed Driving Speed(R /Min): |
1800(1200)-600 |
| Shaft Extension: |
Major Shaft Standard or Minor Shaft |
| Direction Of Rotation: |
Right Rotation Standard or Left Rotation |
| Inlet Position: |
Upper(Standard)/Bottom/Right/Left |
| Impeller Number: |
Single-Stage Pump |
| Working Pressure: |
High Pressure Pump |
| Influent Type Of Impeller: |
Single Suction Pump |
| Position Of Pump Shaft: |
Vertical Pump |
Product Description

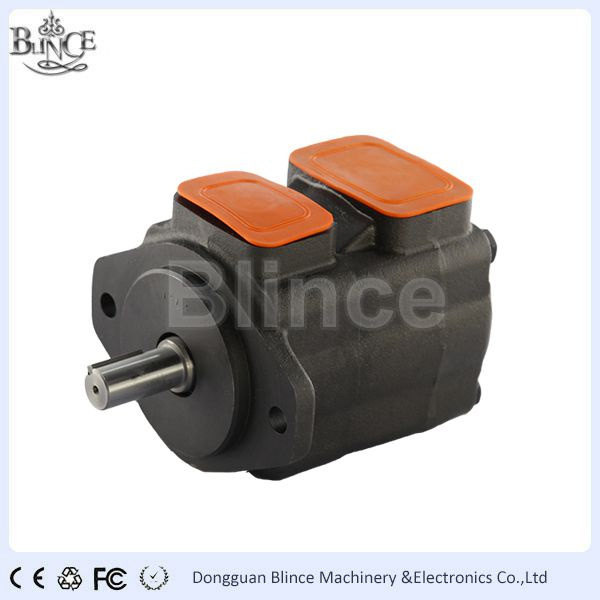

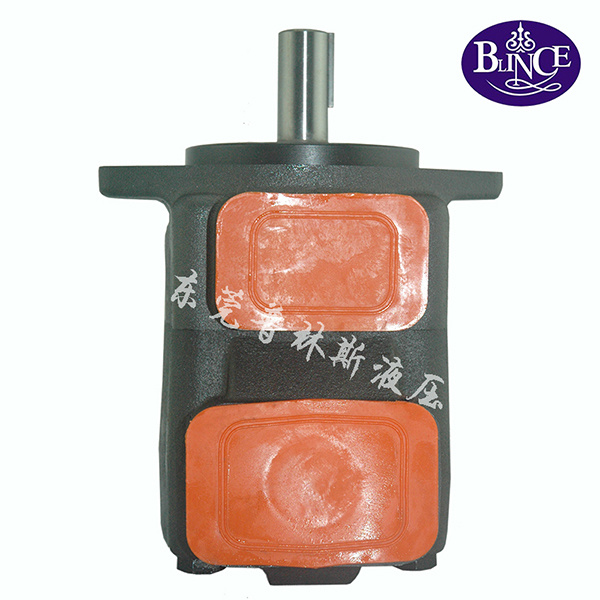

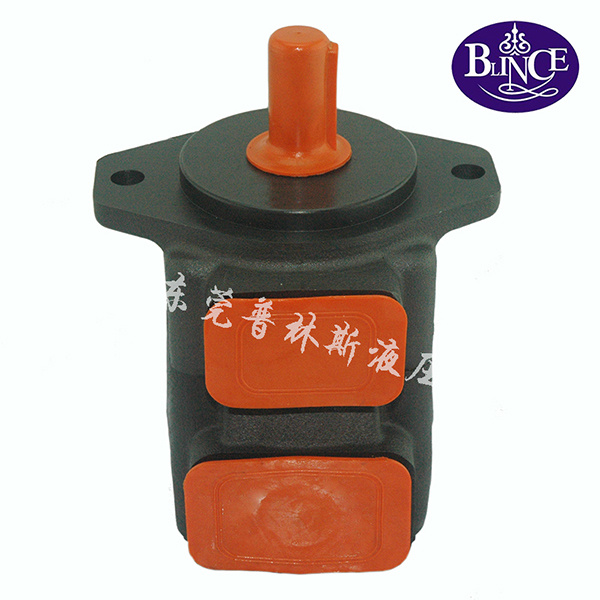

Blince V Series high pressure vane pumps with lower noise
Products introduction
V series of composition vane in high performance are developed for industrial application can be applied properly in the hydraulic system of plastic injection machinery,rubber machinery,casting machinery,machine tools industry,etc.
The main feature:
1.The designing structure of composition vanes reduces its impact on the stator,so the pump will have further stability and longer lifetime while working with high pressure and high speed.
2.The designing structure of composition vanes itself reduce the noise .The design of 12 vanes makes smaller plow pulsation and lower noise.
3.Multi-displacement option and the cartridge structure of pump core make flexible application and easy maintenance.
| Models | Displacement code | Geometric displacement(ml/r) | Max pressure(Mpa) | Max speed (r/min) |
20v | 2 | 7.5 |
13.8 |
1800 |
| 3 | 10 |
| 4 | 13 |
| 5 | 17 |
20.7 |
| 6 | 19 |
| 7 | 23 |
| 8 | 27 |
| 9 | 30 |
| 10 | 32.5 |
| 11 | 36 |
| 12 | 40 | 15.9 |
| 14 | 45 | 13.8 |
25v | 10 | 32.5 |
17.2 |
1800 |
| 12 | 40 |
| 14 | 43 |
| 15 | 45 |
| 17 | 55 |
| 19 | 59 |
| 21 | 67 |
35v | 21 | 67 |
17.2 |
1800 |
| 25 | 81 |
| 30 | 97 |
| 32 | 100 |
| 35 | 112 |
| 38 | 121 |
| 45 | 142 |
45v | 42 | 138 |
17.2 |
1800 |
| 45 | 142 |
| 50 | 162 |
| 57 | 183 |
| 60 | 193 |
| 66 | 212 |
| 75 | 237 | 13.8 |
