Casting & Forging Manufacturers and Factories

Home Casting & Forging Products Chinease Foundry Ductile Iron Manhole Cover/ Manhole Covers for Rainwater

Chinease Foundry Ductile Iron Manhole Cover/ Manhole Covers for Rainwater

Chinease Foundry Ductile Iron Manhole Cover/ Manhole Covers for Rainwater
Price: US $ 20-30/Ton
Trade Terms: FOB,CFR,CIF
Min Order: 100/Piece
Pay Type: L/C,T/T
Prod Model: As your drawings
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item: Manhole Covers/ Manhole Cover
Raw Material: Ductile Iron, Cast Iron, Qt500
Size: Dn100-1000mm
Tchincs: Casting
Brand Name: Shengao,OEM
Factory: Over 15 Years'experience
Process: Sand Casting + Machining
Surface: Polishing, Anodising, Powder Coating
Welcome: Drawings of Manhole Cover
Export Markets: Global
Type: Clay Wet Sand
Application: Manhole Cover for Parking,Road
Machining: Sand Casting

Product Description

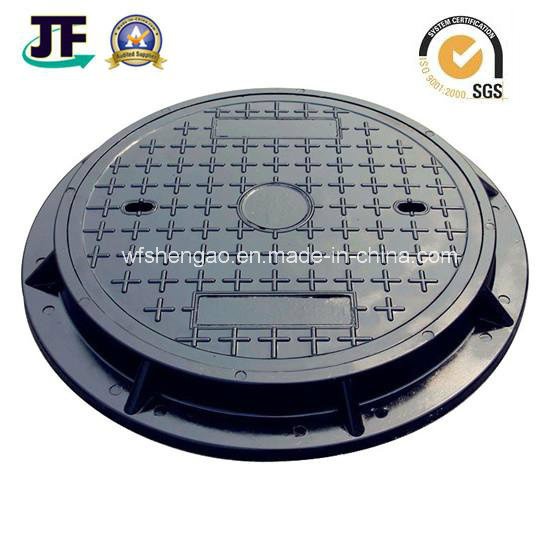

Chinease Foundry Ductile Iron Manhole Cover/ Manhole Covers

Manhole Cover
Cast iron manhole cover

We can produce all kind of manhole cover with customers' drawing or sampe.
OEM ans ODM are welcomed.

Details of the product:
1.Material & Standard:grey iron,ductile iron,malleable iron,carbon steel,alloy steel(high Manganese steel,high Chromium steel and others),Stainless steel,Aluminum alloy,Copper alloy;
2.Moulding processing:Green sand,Resin sand,Waterglass sand,Lost wax/Silicon sol or Die casting.
3.Melting facilities:Cupola furnace,medium frequency induction electric furnace or electric arc furnace.
4.Casting Inspection facilities:Direct-reading spectrum instrument,metallographic analysis,magnetic particle inspection,ultrasonic inspection,X-ray inspection,mechanical properties inspection.
5.Heat treatment facilities:Aging oven,Electric furnace,Normalizing,Quenching and Tempering equipments.

6.Surface treatment:Shot blast cleaning,polishing,Chrome plating,Zinc plating,powder coating and others.
7.Machining facilities:CNC centres,NC lathes,NC milling machines,NC boring machines,drilling machines and other common machines.

8.Inspection facilities:CNC 3-D inspecton facilities and others.
9.Industrial categories:Tractor,Heavy-duty truck industry,Car industry,Farm machinery,Construction engineering machine industry,Electricity power industry,Elevator industry,Valve industry,General machine industry and others.
10. Part Unit weight range:
     For grey iron casting: up to 15000kgs;
     For ductile iron casting:up to 4000kgs;
     For high manganese steel casting:up to 5000kgs;
     For carbon steel & alloy steel casting:up to 10000kgs;
     For Aluminum/copper alloy die casting:from 8g up to 12kgs;
     For Investment/lost wax casting:up to 80kgs;
11.Representative product:machine bed,machine table,bearing stand,housing,casing,cover,valve body,pump body,big ring gear,big pulley,big sheave,bolster,frame,rear frame,front frame,engine block,mill-ball,hammer,jaw plate,bucket tooth,front idler,excavator sprocket,link rod,Bucket link rod,barre liner,grate plate,top grate,open grate,front wall and rack etc.

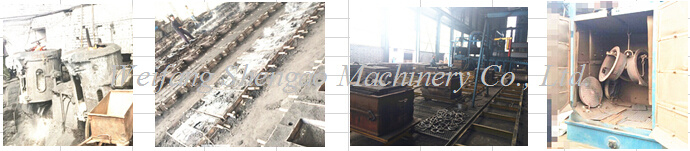

Manhole Cover Workshop:

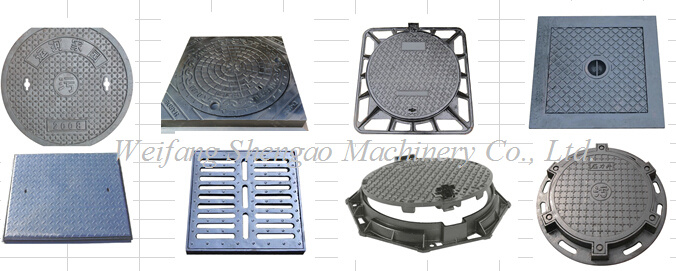

Manhole Cover:

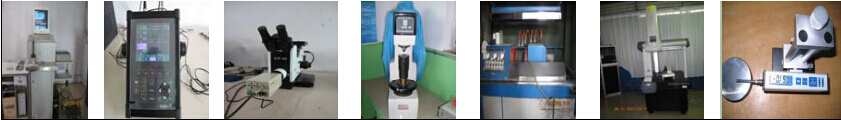

Qualtiy Control:




Item: Drain,Grating,Manhole Cover
Materail:Cast Gray Iron,Ductile Iron
Shape:Round,Square,Rectangle,and Triangle
Process:Drawing-mould making-raw casting-sand blasting-rough machining-surface treatment-product inspection
Size range 200mm to 1200mm,Weight range 7kgs-154kgs
Surface treatment:Spray coated,Epoxy,Painted,Enamel etc.
Certificate:ISO9001:2000,SGS
Class:A15,B125,C250,D400,E600,F900

manhole covers,smc composite manhole cover,drainage,trench drain,drain pipe,drains,manhole covers,manhole,gulley,manhole covers sale

1. Q: Why choose Shengao product?
     A: We shengao have our own plant-- Weifang Shengao machinery Co.,Ltd, therefore, we can surely promise the quality of every product and provide you comparable price.

2. Q: Do you provide OEM Service?
     A: Yes, we provide OEM Service.

3.  Q: Do you provide customized products?
      A: Yes. Customers give us drawings and specifications, and we will manufact accordingly.

4. Q: What is your payment term?
     A: We provide kinds of payment terms such as L/C, T/T, Paypal, Escrow, etc.



If there's anything I can help, please feel free to contact with me.



WeiFang Shengao Machinery Co., Ltd is located in WeiFang the famous city in China and the world center of kites. It is 140 kilometers far away from Qingdao port, the transporation is very convenient. Our company use the location advantages of ShanDong province to integrate resources so that we can processing according to the drawings of customers. We mainly undertake the casting parts, machined parts and other products. Our Import and Export Department have many years experiences of foreign trade, products are mainly exported to the United States, Denmark, Italy, Russia, Australia etc.

Over the years, company adhere to the guideline for management of "Quality first, Reputation first, Delivery just-in-time, Price best". We will try our best to improve the technical level and perfect the enterprise management. Our company will depend on superior quality of products and sincere service to cooperate with dometic and overseas, new and old customers and establish eternal friendship to create a bright future.
