Product Description
1. Name:

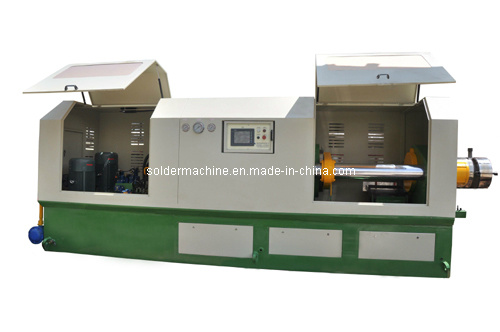

High Quality Smoothly 99.99% Pure Solder Wire Extrusion Machine
2. About our company:
Victory Technology Internation Ltd is a foreign Enterprise, which is specialiszed in equipment manufacture &develop for solder powde, solder paste, solder wire, solder bar /stick, silver wire and metal spraying materials, pure zinc, zinc alloy wire ect.
We have been making experience and technologies for electronic solder equipmengt, along with mature solder product producng technologies and formula with more than 20 years history, In 2004, our vivtory has been covering of 33, 000 square meter standard modernized factory building, being the largest electronic solder machine production base.
3. Standard configuration:
1. Main oil vat: Adopt plunger type cylinder(Germany technology). Vat diameter 450mm, rated working pressure 210Mpa. Hydraulic system adopts steady speed structure to assure the extruding stability of the metal & flux flow.
2. Inside oil vat: Diameter 120mm, rated working pressure 21Mpa. With the advantage of quick oil injecting to shorten the idle running time and enhance the productivity.
3. Hydraulic variable pump one set, hydraulic plunger pump one set.
4. Hydraulic valves: 8pcs
5. Speed control valve: Adopt Rexroth technology variable valve control.
6. Motor: Adopt top brand China(Dong Guan Motor), two sets at: 11KW-6&5.5KW-4.
7. Temperature control: Adopt Japan RKC temperature control system, for extruder head, front crossbeam and flux tank three phases.
8. Flux tank: Adopt stainless steel, oil heating to enable the flux temperature invariableness. With flux status checking window to assure it will be always in best status.
9. Extruder mould: Adopt heating processed rough model with special heat treatment.
10. Extruding billet size: Diameter 85mm*200mm or 90mm*220mm.
11. Material feeding: Adopt hydraulic photoelectricity double assurance control. Fully automatic control for the feeding process.
12. Electric equipment: Adopt Taiwan brand SHSI, Japan RKC, Schneider brand(simple switches adopted China CHINT brand).
13. Current requirement: 380V, 50HZ(can make per customer's application for different country)
14. Machine weight: 8T Total power: 20KW
4. Spare part with machine:
1. Solder wire take-up traction machine one set.
2. Solder wire pay-off stand one set.
3. Colling water tank one set.
4. Wire take-up tray 4pcs.
5. Flux tank one set(Including tie-in, air pressure valve, ball valve, adjust rack).
6. Flux nib one pcs.
7. Flux arm one pcs.
8. Extruding tungsten die 2pcs(diameter 9mm-12mm)
9. Radiation panel 2pcs.
10. Nonstandard tools one set.
11. Billet casting mould two sets.
12. Check out Certificate one copy.
5. Machine advantages:
Adopt West-Germany Technology, oil cylinder designed to be compound two inside the machine. With the advantage of quick oil indraft to save extruding vacancy then enhance efficiency accordingly. A variable pump can adjust the oil dosage according to the hydraulic pressure to make the extruding process evenly and ensure the liquidity & stability of the flux to avoid the lack or uneven distributing of the flux. The extruding mould was made by H13 material with advantage of long life span and no distortion or break for long time use. Shorten the extruding pole to avoid the deflection range during the extruding process to bump the extruding mould and create solder scraps. Temperature system control the tolerance to be +/-3 Material feeding: Adopt hydraulic Photoelectric double insurance control. Fully automatic control for the feeding process.
Guarantee: One year free maintenance (Man-made damage not included)i. E.: Within one year since delivery date, if any problem arises, the supplier offers free maintenance(Not include consumable parts like radiation panel, extruding canister, extruding pole and flux nib).
NO |
Item |
parameter |
Remark |
1 |
Main vat working power |
350T |
|
2 |
Cylinder length (MM) |
450mm |
|
3 |
Main motor power (KW) |
19 |
|
4 |
Main vat working pressure (Mpa) |
21 |
|
5 |
Advanced Speed (mm/s) |
80 |
|
6 |
Withdraw Speed (mm/s) |
80 |
|
7 |
Sub-motor power (KW) |
11 |
|
8 |
Extruding heating power (KW) |
15 |
|
9 |
Extruding heating temperature (°C) |
480 |
|
10 |
lead billet size (MM) |
85X185 |
|
11 |
Outlet wire dimension (MM) |
any diameter per your request |
2 wire outlet |
12 |
Extruding ratio |
25 |
|
13 |
Extruding speed |
1-1.5mm/s |
60-90mm/min |
14 |
Wire speed |
25-35mm/s |
1.5-2.1m/min |
15 |
Extruding time per billet |
3min/pc |
|
16 |
Output |
200kg/h |
|
