| Prod Model: |
VT-1T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Apple Green |
| Service: |
Engineer Is Available Oversea |
| Guarantee: |
1 Year Free Maintenance |
| Place Style: |
Horizontal |
| Manufacturing Level: |
E |
| Media: |
Non Ferrous Metal |
| Burning Style: |
Chamber Combustion Boiler |
| Pressure: |
Low Pressure |
| Water Circulation: |
Natural Circulation |
| Gas Flow Type: |
Exhausting Hook |
| Usage: |
Industrial |
| Fuel: |
Electric Heating |
Product Description
Parameter:
Model: VT-1T
Available crucible space: About 1 Ton
Melting rate: About 250kg /hr Rating Power: 45KW
Daily output: 3.5-4T/24h Outlet wire diameter:? 12mm
Specification:

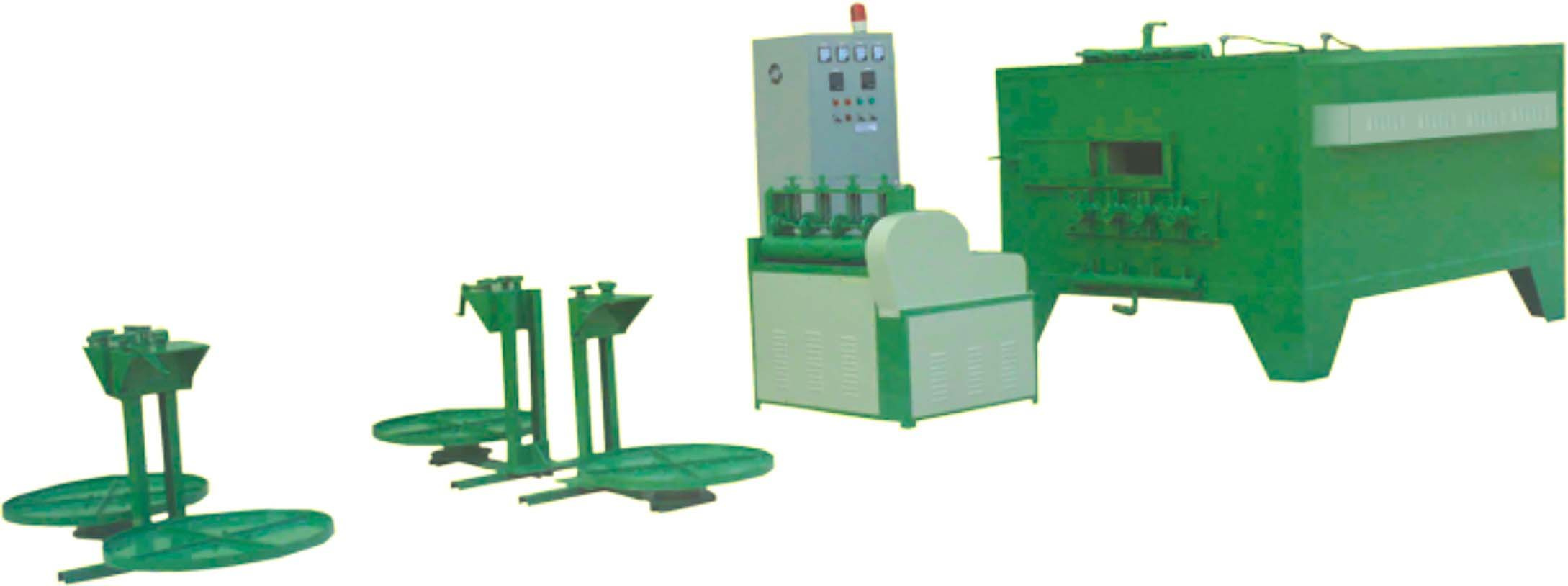

The machine is consists of furnace body, crystallizer, traction organization, electric control system ( a low frequency core-type induction furnace (common industrial electricity 50 cycle), four crystallizers. Four sets horizontal traction group, four sets wire winding stands and water supply system. )
This Melting & Casting Furnace which is with electricity-run is mainly applied to zinc wire making. And it is of parallel traction for thicker wire. With easy operation and stable quality to ensure a better further drawing quality.
The temperature which adopt SCR can be controlled within 0— 1000 degree c with a tolerance of ± 15degree C
Furnace back door are equipped with power off protection and power off alarming function.
Traction Machine adopt double inverter control
|
Item |
VT-1T |
|
Finish spec. |
12-16 |
|
Outlet rod number |
4 |
|
Heater power |
50KW |
|
Traction power |
1.1KW+2.2KW |
|
Temerature control |
SCR control |
|
Power control |
Double inverter control |
|
Voltage |
380v |
|
Max speed |
1M/min |
|
Machine dimension |
8000*1950*1570mm |
|
Machine weight |
5T
|
