Product Description

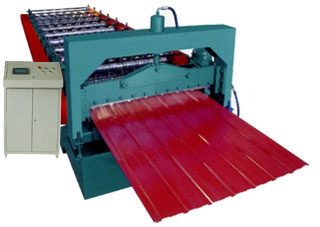

The colored steel tile made by this roll forming machine has beautiful sppearance, it looks elegant and special, can be used in manufacture, beauty spot, pavilion, hotel, villa, exhibition hall, holiday village and ect. It has light material and high intensity, high wind resistance and waterproof function, high building efficiency with low cost.
1. Passive leak: Manual up tight, passive leak
2. Leak rack load: 4T
3. Rack: Using 250H steel welding
4. Forming Machine-driven feeding frame Type: Side roller
5. Forming Machine Type: Wall-type chain drive
6. Shaft Diameter: 70 mm
7. Chain: 0.6-inch single-row
8. Forming Motor Power: 3KW Speed Reducer
9. Forming Machine speed: 8m/min
10. Forming Machine Road Number: 11
11. Roll Material: High quality forged steel
12. Hydraulic station motor: 3kw
13. Hydraulic Pump Station: Gear pump
14. Cutting method: Hydraulic shear
15. Scissors film forming material: Cr12
16. Shearing blades Heat treatment: HRC58 ° -60 °
17. Rolling thickness: 0.3-0.8 mm
18. Material Expand Width: 1000mm/1200mm
19. Length Length Accuracy: ± 2mm
21. The computer use of PLC, Japan's Panasonic
22. Computer Operator
We can provide almost all the types with different Coil width and Height of wave, we will supply the profile drawing as your inquiry.
Service: One-year warranty, responsible for commissioning, and we will provide the technical support for the whole life of the equipment
Jinchengxin roll forming machinery factory is a leading manufacturer of roll forming machinery in China. We have many years' experience in researching, developing and producing various of roll forming machines. We own a high-quality and professional team in design, scientific research, manufacturing, sales and after-sales services. Our technique power is very strong, there are 150 professional talents in related fields, 20 employees have senior professional titles, more than 50 employees have medium professional titles and 80 technicians. We own advanced production equipments, strong production capacity and perfect aftersales service system. Our enterprise passed ISO9001: 2000 international quality system certification, we always carry Out 9001 standards strictly in the course of producing. We provide customers with excellent products and integrated service, so our products and barand have been approved unanimous and gained very good reputation from customers of domestic and overseas, therefore so many customers from home and abroad are willing to keep long and good cooperation with us. Our products not Only extended all over our country but also entered international markets, our products have been exported to Russia, SaudiArabia, Canada, Spain, Australia, NewZealand, Singapore, Korea, Srilanka, Malaysia, Nigeria, Armenia, Tanzania, Azerbaijan, Kazakhstan, Brazil, Mexico, etc.
We are specialized in producing Roof board and wall board forming machine Series, Glazed tile forming machine series, Floor plate forming machine series, C and Z steel products forming machine series, Doubledeck color steel tile forming machine series, Roll shutter door forming machine series, Clip core board line series, Ridge tile and attached equipment forming machine series, Arch equipment series, Checking level machine series, Plate Cut-off equipment series, Highway guardrail equipment series, Uncoiler and stacker series, Drainpipe forming machine series, Plate shearing machine and bending machine and Slitter machine series, Other supporting facilities and so on.
At the same time, we can customize the design and fabrication on the particular type of machine for coustomer.
Our technician team always pay close attention to and keep up with the develop trend of technologies and adopt new technologies in our products, so our products have characteristics of high efficiency, high flexility and low production cost, this characteristics keep our products' competitive power. So all of our products are popular to steel building industry as light construction, reasonable design and update style.
Customer's benefit is the first, we know that deeply our development and success come from development and success of our customer, we run this mind through the whole process from design products to after-sales service, we design and produce product according to the demand and request of customer to help them advance efficiency, reduce cost and increase competitive power.
Our perfect after-sales service ensure we can supply high quality service to every customer. We will insist on the principle of "Customer is our god, Quality is our life, Service gain trust, Innovation gain development, Credit cast brand, Beyond cast resplendence " to supply satisfactory products and high quality service to every customer.
Warmly welcome friends from all circles of the world to visit our factory, we sincerely hope to establish long and good business relationship with all friends, looking forward to create a beautiful future with you!
