| Prod Model: |
VARISORT CSS-M |
Product Description
Application profile
Inspection of: Bulk products
Used in: Recycling industry
Typical applications:
- separates copper
- brass
- separates aluminium
- grey metals
Product description

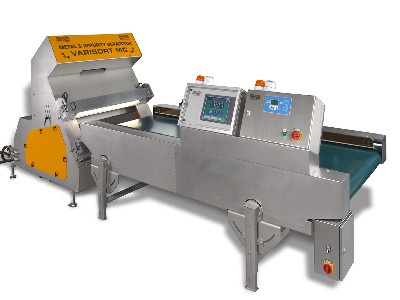

VARISORT CSS-M combined metal separation systems identify and remove different types of metals. The material to be inspected is spread out on a fast-moving conveyor so that the pieces are optimally individualised before continuing into the inspection area of the selective metal sensor and CCD linear camera which identify them according to their physical and optical characteristics. Electronics evaluate their exact location and ejection nozzles are activated with pinpoint accuracy and at precisely the right time to blow out the appropriate pieces of metal into a vertical chute.
Advantages
- several types of metal can be evaluated at the same time
- sensitivity setting using technical software
- evaluation of the entire visible light spectrum
- self-teaching evaluation electronics
- removes contaminants with pinpoint accuracy
- modular design
System components
Detection Unit: CCD linear camera
Selective metal sensor
Segmented single-face metal detector
Sorting unit:
Control Unit: Industrial PC
Conveyor belt: Polyurethane flat belt
Drive: Motor with integrated gear box
Technical data
Maximum scanning sensitivity Fe-ball: 20 mm mm
