Product Description
Application profile
Inspection of: Web, woven or sheet materials
Used in: Plastics industry
Textile industry
Typical applications:
- Inspection of needle-punched nonwovens for broken needles
- Protection of calander rollers and cutters
Product description

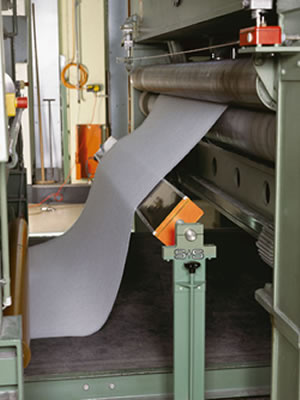

The PROTEX-E range of single face metal detectors is used to inspect web, woven or sheet materials (needle-punched nonwovens, felts, woven and tufted carpets etc) between 1 and 4 metres wide.
PROTEX-E systems are equipped with multi-channel metal detectors and detect all magnetic and non-magnetic metals (steel, stainless steel, aluminium etc). They provide outstanding detection results, even if the gap between product and sensor surface is quite large. The sensor area is divided into segments which are 256mm wide. If metal is detected a signal can be sent to the process controller, or a marking device or cut-off equipment can be activated. Also available is the option to highlight the segment containing the metal with an LED.
Advantages
- Easy and cost-effective to install; Fully floating on shaft and pedestal bearings
- Standard versions available for web widths between 1 and 4m
- Optimal detection across the entire web width
- Accurate detection even with greater distances between product and sensor surface
- Highly reliable and resistant to inteference
System components
Detection Unit: Multi-segment metal detection coil
Segmented single-face metal detector
Control Unit: Microprocessor-controlled evaluation and user interface
Technical data
Protection rating: IP 54
