Product Description

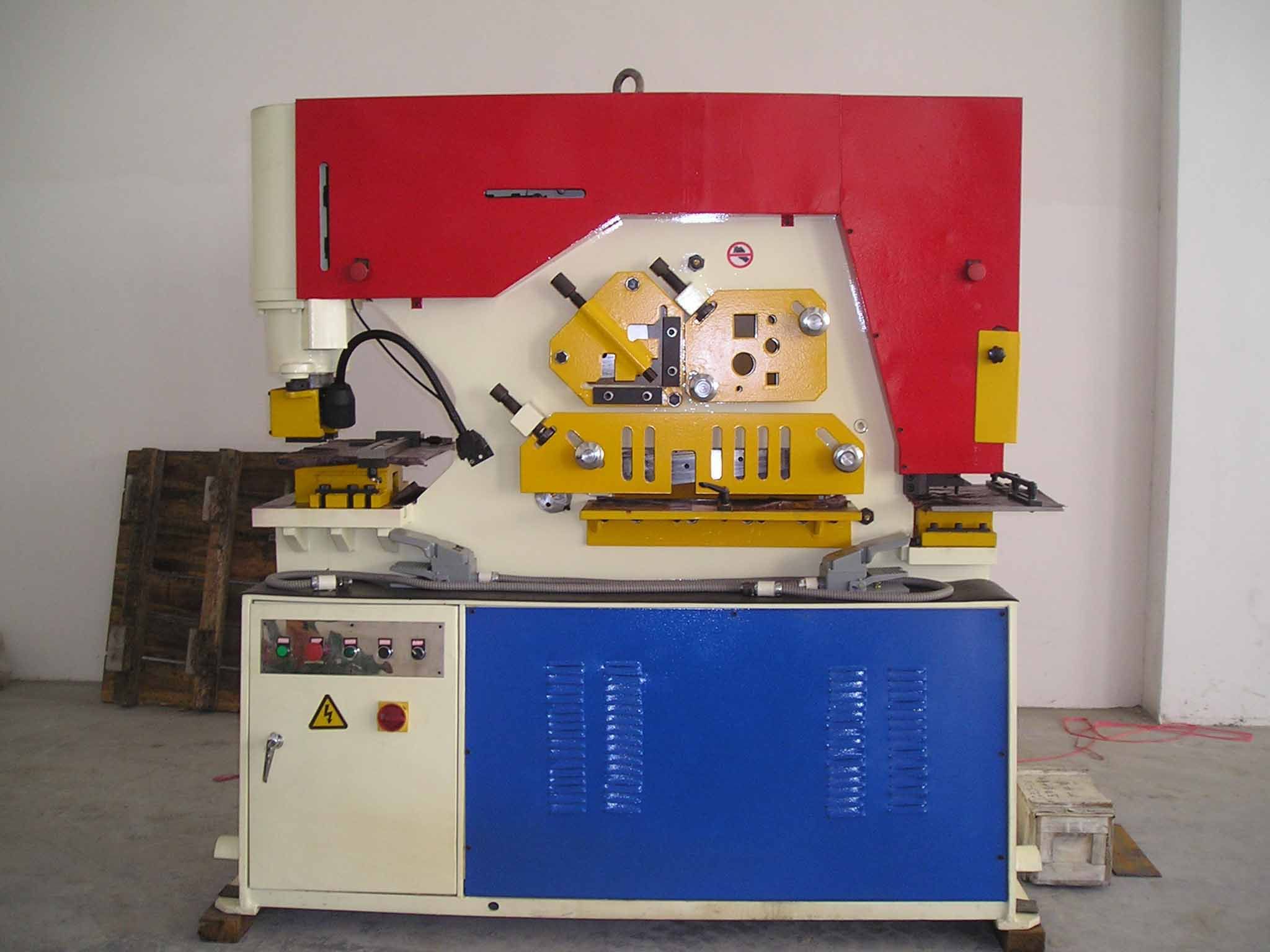

Hydraulic Combined punching and shearing machine
Hydraulic combined punching and shearing machine is a special multifunctional machine combined the functions of punching and shearing. The machine could be used to cut, punch and notch various section metal materials, such as plate, square bar, round bar, angle, channel and I beam. It is also equipped with a back gauge for cutting.
MODEL
Q35Y-16
Q35Y-20
Q35Y-25
Q35Y-30
PRESSURE ( T )
66
90
120
165
MAX THICKNESS OF PLATE ( MM )
16
20
25
30
CUTTING ANGEL
7 °
8 °
8 °
8 °
CUTTING SIZE IN A HIT (T × Wmm)
16×250 8×400
20×330 10×480
25×330 16×600
30×335 20×600
RAM STROKE
80
80
80
80
H IT /MIN
8
8
6
6
THROAT DEPTH(MM)
300
355
400
600
MAX PUNCH THICKNESS ( MM )
16
20
25
26
MAX PUNCH DIMETER ( MM )
25
30
35
38
MAIN MOTOR POWER ( KW)
4
5.5
7.5
11
DIMENSION(MM)
1640×730×1770
1860×800×1900
2355×960×2090
2680×1040×2300
MACHINE WEIGHT (KG)
1600
2400
4800
6800
We are pleased to introduce ourselves as one of the professional manufacturer of Press Brake, Shearing machine, Rolling machine, Punch machine, CNC lathe, CNC machine center in China.
We also make the Tools for Press Brake, Blades for Shear Machine, Dies for Punch Machine.
AMADA, MURATA, TRUMF, STRIPPET, LVD, FIN POWER, JIN FANGYUAN, YANGLI, JIEMAI IN JINAN, TAILIFT
Our international brand is ALUKE MACHINE TOOL Co., Ltd
We have been working in the same field since 1982.
In the mean while we have Supplied a number of metal process machinery all over the world of all Capacities, model and all type of sheet metal machineries. We have qualified with CE mark, ISO 9002-ISO 2000.
We have satisfied customers throughout over world who gaves us repeated order due to very good sales, services and customers relationship.
Our Sales Net are: UK, USA, Italy, Romania, Russia, Ukraine, Brazil, Colombia, Peru, Venezuela, Ecuador, Paraguay, Chile, India, Pakistan, Singapore, Vietnam, Iran and so on, more than 50 countries.
If any of the items can reach your filed, please contact us freely, we are always at your service.
