| Prod Model: |
HDLW12T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
42CrMo, Hb260-300 |
| Rollers: |
4 Rollers |
| Application: |
Machinery & Hardware |
| Type For Fold-bending Machine: |
Hydraulic Fold-bend Machine |
| Type For Cutting Machine: |
Bending |
Product Description

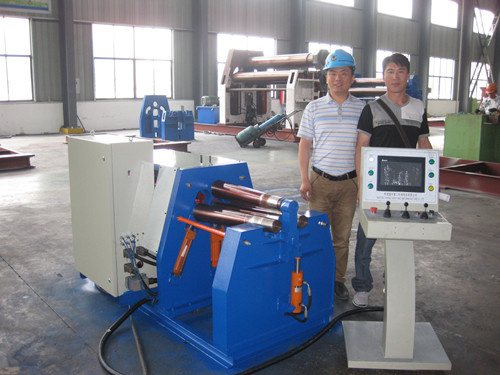

HDLW12TNC- ACR-Down 4 roller hydraulic cone rolling machine is combined international advanced technology with our unique specialties. It is designed for making conical tube, with high efficiency, low power consumption, and easy to operate.
The upper roller and the lower roller are driven by the motor through reducer. The lower roller can move horizontally and vertically to clamp the material. The two side rollers are driven by the oil cylinder to perform arc movement.
This machine is very integrated which enables easy maintenance. Numerical device shows the vertical movement of the lower roller and the arc movement of the side rollers, which makes the machine more accurate and more easy for operation. The side oil cylinder controls the overturn and reset of the upper roller overturn frame, and also the balance of the upper roller, which makes it more convenient to take out the finished product.
The material of rollers is 42CrMo, HB260-300, comply with GB/T6402-1991 roll steel standards
This type of machine is your best choice, if you:
1. Not familiar with rolling machine. Because this machine is very easy to operate, which is very suitable for people who is lack of experience.
2. Requires high accuracy and excellent quality.
3. Want to cut labor cost. This machine need only one person to operate.
4. Want the machine to be removable, due to reasons.
5. Want to use CNC to avoid the products be effected by personal and other fators.
See the following table of technical parameters...
As the development of technology, our products are advanced continually, so the parameters maybe adjusted.
|
Type |
W12TNC-4×600 |
|
Max Plate Width |
600mm |
|
Work Length Of Rollers |
650mm |
|
Max Plate Thickness |
4mm(σs≤245MPa) |
|
Diameters Of Rollers |
Small Sideφ60 mm |
|
|
Big Sideφ120 mm |
|
Straight Edge Length |
≤2*Tmm |
|
Coiling Capacity(σs≤245MPa) |
T4*B600*Small Sideφmin80mm
Big Sideφmin280mm |
|
Rolling Speed |
Approximately 4(m/min) |
|
Total Power Of The Main Motor |
11kW |
Nantong Shengli Heavy Machine Manufacturing Co., Ltd. is a professional machinery manufacturing company which is engaged in the research and development of rolling machines(W11S, W11, W12series), shearing machines(QC11Y series) and press brake(WC67Y), tube benders and other project large scale machineries. Located in Nantong, Jiangsu Province, China
In recent years, our company has been focusing on the principles of "people-first" and aims to manufacture products in line with ISO2000: 9001, CE international management standards. We strengthen management and keep the overall capability in this industry, and the quality of our product has been greatly improved. Our advantages lie at quality, prices and services
Our company owns the import and export licenses. Our products are mainly exported to Asia, America and Europe. Our company has won the recognitions from foreign and domestic customers with good quality and has established long-term co-operative relationships with them.
We are willing to provide the most satisfactory services for customers around the world and sincerely welcome foreign and domestic friends to visit our company and co-operate on win-win situations.
