| Prod Model: |
YT500X2 |
| Markets: |
South America,Southeast Asia,Africa,Mid East,Eastern Asia |
| Casting Method: |
Special Casting |
| Casting Form Material: |
Graphite |
| Casting Metal: |
Nonferrous Alloys |
| Casting Form Usage Count: |
Disposable |

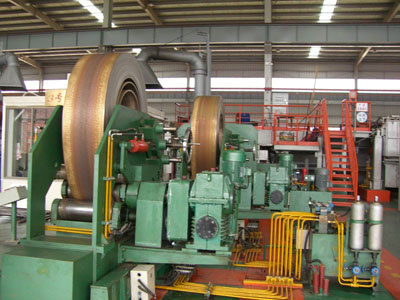

Product Description
Functional characteristics:
1. Melting and holding temperature furnace adopt large-area jet-melt ditch.
2. Crystallizer adopt cavity-type structure, so it has a good cooling effectiveness.
3. Holding temperature furnace adopt stepless pressuer-regulator, so the control of temperature is continuous and automatic.
4. The driven system of tractor adopt keyless connection and seamless gear drive.
Item unit parameter
Mode stream 1; 2
Material ofc copper bronze; Brass
Width mm 330; 450; 650
Thickness mm 12-20
Speed mm/min 120-180
Power of melting furnace kw 400; 500
Power of holding furnace kw 170; 200
Power of tractor kw 7.5; 11
Capacity ton/year 4000t; 6500t
Max temperature 1350
Weight of coil kg 3000; 6000; 8000
Keda copper and equipment company was restructured in 2000 from it is specializing in equipment manufacture for copper and aluminum fabricating industry. It is engaged in designing, manufacturing, installing and commissioning of copper fabricating equipments.
Our main products are horizontal continuous casting machine (for copper and aluminum strip, copper tube, copper rod), (copper strip 200mm-650mm), up casting machine for copper tube, copper rod, copper busbar or flat, semi-continuous casting machine, continuous extrusion machine for copper rod, wire, aluminum tube.
Our technique team is very experienced in installation and commission, which can save customer's commission time and cost largely. We also have a very efficient after-market service team which is ready to resolve any related problems from our costumers.
