Product Description

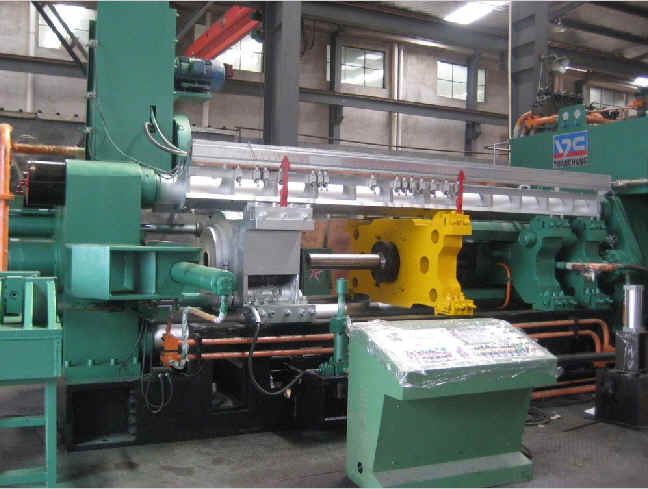

1. The machine has a four-column horizontal structure consisting of top-mounted oil tank, well-laid hydraulic piping and integrating electrical system.
2. Mobile beam can be located at four positions and centre-adjusted. Reasonable design of tools and moulds can greatly reduce production cost.
3. Different extruding process can be set to produce tubes having different bores with the way of following and fixed piecer.
4. Large flow ratc plug-in valve system used in hydraulic unit results in a good seal and low temperature risc.
5 PLC dcviccs from Japan Mitsubishi arc of reliability and sensitivity.
Rated sys pressure: 21MPa; Rated extruding force: 12500KN, center height of main unit: 1185mm; Dimension of container: Φ135-Φ165x650; Main motor power: 528Kw; Overall dimention: 12x2.5x3.4
(13x2.5x3.4)
Wuxi Yuanchang Machinery Manufactury Co., Ltd was founded in 1995 which is specially engaged in manulacturmg various non-ferrous metals pressure equipment. At present, it has produced series products with more than 30 specification in 3 major species from 300 tons to 3000 tons, which applied for aluminum, cooper, or magnesium processing industries and our products are used by a great many ferrous enterprise as well as scientific research institutes, colleges, universities and foreign clients. Now the products are distributed throughout the country and are exported abroad, such as USA, Argentina, Australia, Turkey, Uzbekistan, Russia, Lebanon, Syria, India, Kenya etc. The company is the domestic professional apotheosis and business pioneer of the extruder manufacturing line.
The company is one of the earlier established private limited enterprise in Jiangsu province. It has a floor space of over 30, 000m and strong machining capability, including a variety of production equipments, such as large-sized floor mounting boring machine, large-sized floor mounting lathe, double housing planer, vertical lathe, 8m extension lathe, etc. Varieties of extruding equipments and extruding production lines are manufactured and sold up to over 200 sets per year.
