Copper Rod Continuous Casting and Rolling Line
| Price: |
US $ 350000/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
| Prod Model: |
UL+Z-1800+255/4+8 |
| Markets: |
North America,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| 255/4+8: |
Ccr Line (8mm Copper Rod) |
Product Description

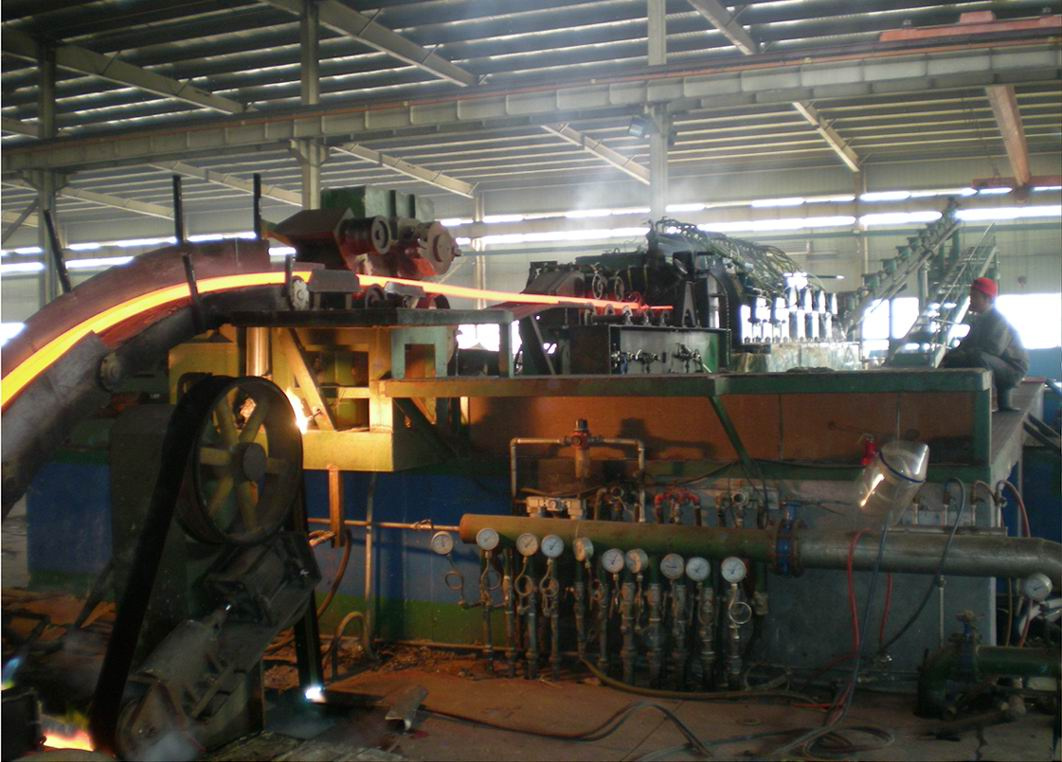

UL+Z-1800+255/4+8 Copper Rod Continuous Casting & Rolling Line
1.The line is designed to produce φ8mm low oxygen bright copper rod by means of continuous casting and rolling, the raw material is copper cathode or copper scrap. The line is composed of one set of 60t reverberatory furnace, five-wheel type continuous casting machine, pulling machine, automatic shearer, straightening & edge shaving machine, cast bar brushing machine, continuous rolling machine, bright orbital coiler, electric control system and so on.( The furnace, casting machine, outer water supply systems of all cooling machines and air compressor should be supplied by the consumers.)2.Copper scraps of Grade One or Grade Two(feeding materials) →stationary reverberatory furnace(melting and refining) → Launder(protecting the melted body) → casting ladle →continuous casting machine(casting bars) → cast bar treatment unit(shearing → straightening → shaving edges → removing scraps ) → Rolling mill entrance(sending materials automatically)→ continuous rolling mill(rolling rods)→ Copper rod cooling unit(rod surface recovery)→ Continuous annular swinging rod unit(preformed)→orbital coiler (copper rod in coil)3. Main technical parametersProduced copper rod dia. φ8mmProduction capacity about 16t/hCoil's weight 3.0-5.0 tTotal size of main equipment (excludes melting furnace, circulating cooling and filting system) 42×7.8×5.1mTotal weight of main equipment(excludes melting furnace) ~ 82tTotal power of main equipment (excludes melting furnace) 600kwVtechnical standard and compositionFive-wheel continuous casting machine 1 set (patent No.: ZL00244512.3)Crystallizing wheel dia. φ1820mmRotation speed of crystallizing wheel 1.84-2.814r/minCasting bar speed 10.17-15.56 m/minCasting section 2250mm²Motor Y132S-4 5.5 kw 1440r/min (frequency conversion)Cooling water pressure 0.3-0.5MpaCooling water consumption 170m³/h (soften water is the best)Cooling water temperature <35ºCLifting motor of casting ladle 2.2KW 1400r/minLifting motor of strobe 0.75KW 1390r/minTension pulley cylinder QGBZ250-600-MB3Pressing pulley cylinder QGBZ200-125-MB3 Lifting cylinder QGBZ160-125- MB34.Composition:
Five-wheel type continuous casting machine 1 setAutomatic shearer with front pulling machine 1 setStraightening & edge shaving & cast bar brushing machine 1 setAutomatic feeding continuous rolling machine 1 setEmulsion lubricating system of continuous rolling machine 1 setCoiler 1 setElectric control system 1 set
We, Deyang Dongfang Zhuoyue Electrotechnical Equipment Co., Ltd are located in Deyang of China, the major technology and equipment manufacturing base. Now, our manufacturing factory building covers an area of more than 10, 000 square meters. We have more than 100 sets of large and medium-sized processing and manufacturing equipment, and a well-trained design, marketing, managing, machinery processing and equipping team composed of nearly 200 people.
We can manufacture various of complete plant(the latest model in domestic market), such as, Aluminium&Alloy Rod Continuous Casting And Rolling Line, Copper Rod Continuous Casting and Rolling Line, Tubular Stranding Machine, Rigid Frame Stranding Machine, Continuous Lead Extruding Line, Straight-line Aluminium &Alloy Rod Breakdown Machine, Straight-line Copper Rod Breakdown Machine, etc.
We have strong production ability and excellent sales team, we sell our products to our user directly, also, we always sell our products by some trading company or middle trader. We exported so many products to other countries such as Kazakhstan, Indonesia, India, Thailand, Korea, Ukraine, Mexico, Brazzil, Vietnam, Argentina, Kenya and so on.
We would like to provide the high-quality products and the good service, meanwhile, we will quote you the lowest market price.
We will be together with all the staff and workers, wholeheartedly offer our service, wait for your presence and stride forward with you hand in hand towards a brighter future.
