Copper Rod Continuous Casting & Rolling Line (UL+Z-1800+255/4+8)
| Price: |
US $ 350000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
UL+Z-1800+255/4+8 |
| Markets: |
North America,Southeast Asia,Africa,Mid East,Eastern Asia |
| Copper Rod Continuous Casting And Rollin: |
Copper Rod with 8mm Diameter |
| Certification: |
CE |
| Transmission Type: |
by Motor |
Product Description

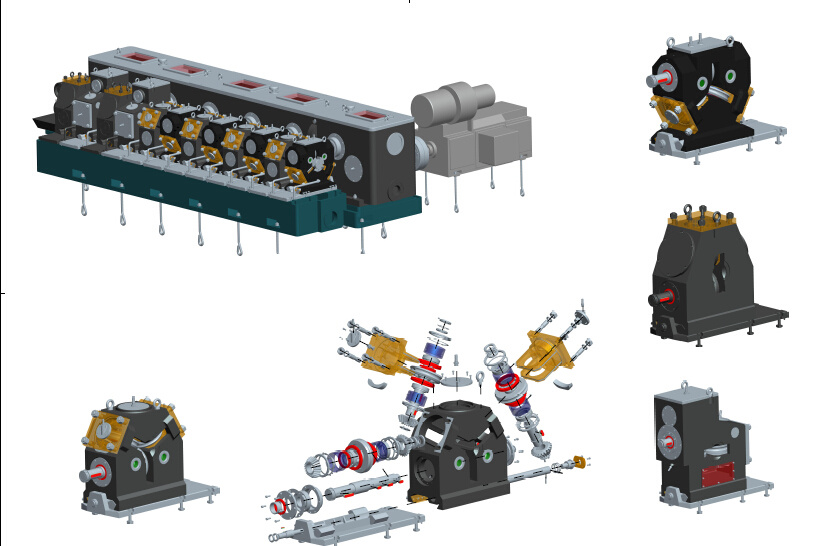

UL+Z-1800+255/4+8 Copper Rod Continuous Casting & Rolling Line
(New Product of the Third Generation)
I.The line is designed to produce φ8mm low oxygen bright copper rod by means of continuous casting and rolling, the raw material is copper cathode or copper scrap. The line is composed of one set of 60t reverberatory furnace, five-wheel type continuous casting machine, pulling machine, automatic shearer, straightening & edge shaving machine, cast bar brushing machine, continuous rolling machine, bright orbital coiler, electric control system and so on.( The furnace, casting machine, outer water supply systems of all cooling machines and air compressor should be supplied by the consumers.)II. Brief Technological Process Copper scraps of Grade One or Grade Two(feeding materials) →stationary reverberatory furnace(melting and refining) → Launder(protecting the melted body) → casting ladle →continuous casting machine(casting bars) → cast bar treatment unit(shearing → straightening → shaving edges → removing scraps ) → Rolling mill entrance(sending materials automatically)→ continuous rolling mill(rolling rods)→ Copper rod cooling unit(rod surface recovery)→ Continuous annular swinging rod unit(preformed)→orbital coiler (copper rod in coil)III. Demand for the Raw Material(Copper Scraps)The melting shaft furnace and holding furnace require National Grade One copper cathode as their raw material. If copper scrap is used, it must be the copper scraps of Grade One or Grade Two.1. Copper scraps of Grade One ( Pb<100,Sn<300,Ni<50,Zn<50,Fe<50,Sb<20). Composed of clean, non-alloy copper wires without tin-plate, which mustn't include frangible burnt wires.2.(Pb<1000,Sn<800,Ni<150,Zn<300,Fe<500,Sb<100,S<200)Copper scraps of Grade Two( Pb<1000,Sn<800,Ni<150,Zn<300,Fe<500,Sb<100,S<200). Composed of small diameter copper wires, which are not insulating, such as the telephone wire, varnished or paper insulating copper wires and copper plate, and clean copper bars.The proportion of the raw material sent to the furnace is as follows: 60% copper of Grade One +40% copper of Grade TwoIV main technical parameters φ8mmProduced copper rod dia. φ8mm 16t/h Production capacity about 16t/h 3.0-5.0 tCoil's weight 3.0-5.0 t 42×7.8×5.1m()Total size of main equipment (excludes melting furnace, circulating cooling and filting system) 42×7.8×5.1m() ~ 82 Total weight of main equipment(excludes melting furnace) ~ 82t() 600 kWTotal power of main equipment (excludes melting furnace) 600kwV technical standard and composition (ZL00244512.3)Five-wheel continuous casting machine 1 set (patent No.: ZL00244512.3) φ1810mmCrystallizing wheel dia. φ1810mm 1.84-2.814r/minRotation speed of crystallizing wheel 1.84-2.814r/min 10.17-15.56 m/minCasting bar speed 10.17-15.56 m/min 2250mm²Casting section 2250mm²Y132S-4 5.5 kw 1440r/min ()Motor Y132S-4 5.5 kw 1440r/min (frequency conversion) 0.3-0.5MpaCooling water pressure 0.3-0.5Mpa 170m³/h()Cooling water consumption 170m³/h (soften water is the best) <35ºCCooling water temperature <35ºC 2.2KW 1400r/minLifting motor of casting ladle 2.2KW 1400r/min 0.75KW 1390r/minLifting motor of strobe 0.75KW 1390r/min QGBZ250-600-MB3Tension pulley cylinder QGBZ250-600-MB3 QGBZ200-125-MB3Pressing pulley cylinder QGBZ200-125-MB3 QGBZ160-125- MB3Lifting cylinder QGBZ160-125- MB3
We, Deyang Dongfang Zhuoyue Electrotechnical Equipment Co., Ltd are located in Deyang of China, the major technology and equipment manufacturing base. Now, our manufacturing factory building covers an area of more than 10, 000 square meters. We have more than 100 sets of large and medium-sized processing and manufacturing equipment, and a well-trained design, marketing, managing, machinery processing and equipping team composed of nearly 200 people.
We can manufacture various of complete plant(the latest model in domestic market), such as, Aluminium&Alloy Rod Continuous Casting And Rolling Line, Copper Rod Continuous Casting and Rolling Line, Tubular Stranding Machine, Rigid Frame Stranding Machine, Continuous Lead Extruding Line, Straight-line Aluminium &Alloy Rod Breakdown Machine, Straight-line Copper Rod Breakdown Machine, etc.
We have strong production ability and excellent sales team, we sell our products to our user directly, also, we always sell our products by some trading company or middle trader. We exported so many products to other countries such as Kazakhstan, Indonesia, India, Thailand, Korea, Ukraine, Mexico, Brazzil, Vietnam, Argentina, Kenya and so on.
We would like to provide the high-quality products and the good service, meanwhile, we will quote you the lowest market price.
We will be together with all the staff and workers, wholeheartedly offer our service, wait for your presence and stride forward with you hand in hand towards a brighter future.
