North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Machine Color:
Made-to-Order
Brand Name:
Zhongyuan
Place Of Origin:
China
Rollers Material:
Forged Steel
Cutter Material:
Cr12 Mould Steel
Cutting Type:
Cut Tp Length
Control System:
Mitsubishi PLC
Operate Language:
English or as Requred
Main Motor:
7.5 Kw
Name:
Corrugate Iron Sheet Making Machine
Forging Forming Method:
Cold Roll Forming
Product Description

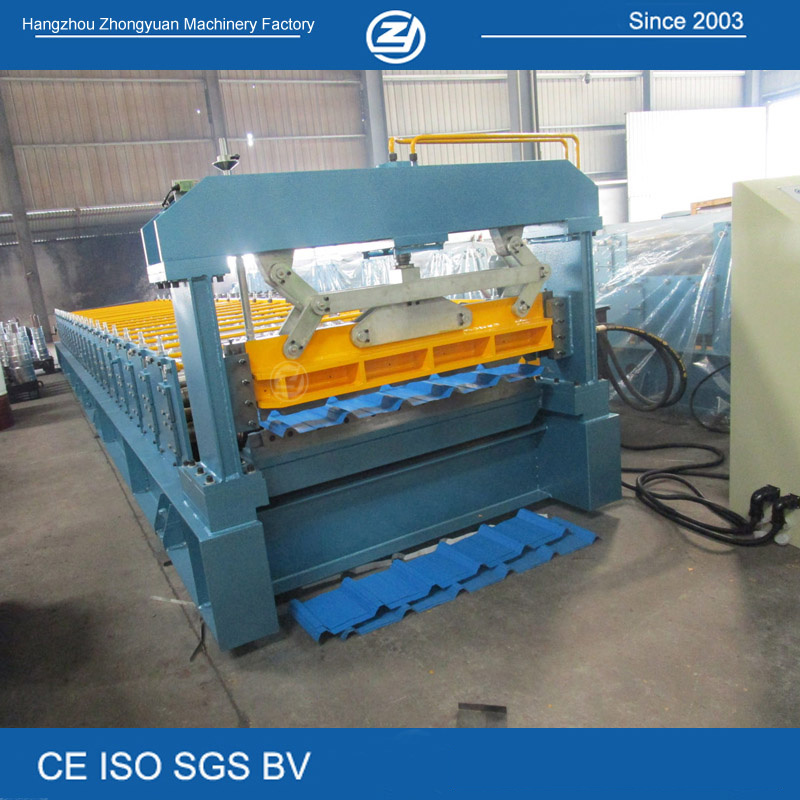

Corrugate Iron Sheet Making Machine
1. Our strength
With Zhongyuan products you save time and money! Zhongyuan is a "All-in-house source" --from raw material to the final high-precision forming machine. We have our precise tooling center. When roll forming machine must be delivered immediately, depending on customer`s features, we can manufacture and deliver machine in only 5-8 weeks.
You can rely on our team! The dedicated staff at Zhongyuan is our key to success. We have engineers with experience more than 15 years in metal forming industry. Employees and their development are of fundamental importance to Zhongyuan.
Quality by Zhongyaun Zhongyuan is certified according to the standards ISO 9001: 2008 and EN982: 2008, EN ISO12100-1: 2003, EN ISO 14121-1: 2007. Our Integrated Management System comprises Quality, Environment, Employment and Health Protection. When it comes to safety, there are no compromises.
2. Certificate
CE; ISO; SONCAP
3. The third party inspection: SGS, BV
Technical parameter
Item
Specification
Raw Material
Type
Pre-painted steel coil & galvanized coils
Thickness(mm)
0.3-0.7
Yield strength(mpa)
235-550
Roller material
45# steel , coated with Chrome
Shaft for rollers
Solid shaft with 72mm,processed with cylindrical grinder
Forming speed(m/min)
About 20-25
Output speed(m/min)
About 12 for 6m length sheet
Speed adjusting mode
Mitsubishi frequency transformer
Roller drive
Decelerating motor + Chain drive
Cutting mode
Hydraulic cutting
Cutter material
Cr12 mould steel
Length measurement
Nemicon Encoder
Control mode
Mitsubishi PLC
Operating mode
Button + Mitsubishi Touch screen
Main motor power(kw)
5.5KW
Total power(kw)
7.7 KW
Process flow
Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting – product to run out table
Components of machine
Decoiler (manual decoiler and hydraulic decoiler for option)
1set
Feeding & guiding device
1set
Main roll forming machine
1set
Hydraulic cutting system
1set
Controlling system
1set
Run out table (auto. Stacker for option)
1set
Established in 2003, Zhongyuan Machinery Factory is experienced manufacturer of metal forming machinery with ISO quality system. We offer a vast range of products, including in sandwich panel line, metal tile forming machine, cladding forming machine, metal decking forming machines, etc. We also can supply steel coils, EPS sandwich panels, PU sandwich panels to suit diverse requirements of our global customers.
At Zhongyuan, our R&D department is staffed with senior engineers who has more than 10 years experience in metal forming machine industry, So we are able to assist customers with professional designing and solution. And more, Our own tooling center is equipped with CNC turning-lathes, Grinding machine for roller shaft, Heavy planing machine, etc, which allow us to complete the majority of our processing procedures on-site. So we can better control the machine quality and delivery time of machines. All our forming machines are undergoes a series treatments, like cutting frames with heat treatment to remove stress of steel, to ensure all our performance requirements are met.
At Zhongyuan, we endeavor to provide quality built metal forming machines at economical prices. By purchasing qualified raw materials from suppliers which we have long term relationships with, we greatly reduce our material cost. Our company is located in Hangzhou City, about 2 hours from Shanghai and 1.5 hours from Ningbo port. This location allows us to ship products quickly and economically to our customers all over the world. As a result, we are able to satisfy our customers with both a high quality and economical metal forming machines.
Today, we have established lasting business relations with customers in more than 20 countries, such as America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Australia, Fiji, Papua New Guinea, Kuwait, Syria, Oman, U. A. E, Nigeria, Tanzania, Ethiopia, Gana, South Sudan, Algeria, Niger, Philippines, Indonesia, India, and others.
We have rich experience for metal forming machine solution, competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.
