Corrugated Metal Roofing Sheet Cold Roll Forming Machine

Prod Model:	CUS-SX-CRFM-900
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage:	Manufacture Roof Sheet
Thickness Of The Material:	0.3-0.8mm
Raw Material:	Galvanized, Galvalume, Aluminum, PPGI
Control System:	Siemens PLC Computer Control
Roller&Cutter Material:	Cr12
Materials:	Steel
Machine Frame Stand:	Welded Structural Steel
Dimension:	7m * 1.2m * 1.5m
Voltage:	380V 3pH 50Hz (or as Buyer Request)
Number Of Rollers:	11-18 Pairs
Forging Forming Method:	Mold Forging

Product Description

1. Cold roll forming machine introductions
Different cold roll forming machine can produce different shapes of steel roof, wall sheets according to the clients' profile drawings and requirement. Steel roof, wall sheets are new building materials with various thickness and colors.

2. Cold roll forming machine advantages:
Cold roll forming machine has many advantages, such as low cost, easy installation, short building period, re-cycle use, beautiful appearance, and are light weight but high strength. Cold roll forming machine is used as the roof and walls of gymnasiums, airports, theatres, factories, warehouses, garages, exhibition centers, etc.

3. Cold roll forming machine main components
Manual decoiler, Main forming machine, Hydraulic press forming unit, Hydraulic system, Electrical control system, Hydraulic cutter, Normal receiving stand

4Cold roll forming machine Workflow
Decoiling the sheet — Sheet guiding — Roll forming — Press — Measure length Cutting the panel— Panels to the supporter

5. Cold roll forming machine raw materials
1. Hot dipped galvanized steel coil.
2. Galvalume steel sheet(Zinc- aluminum galvanized steel sheet)
3. Aluminum sheet.


6. Cold roll forming machine machinery:
Number of forming rollers: 13-18groups
Material of shaft: 45# steel adjustable treatment. Outer diameter 75mm
Material of roller: 45#steel, plating hard chrome on the surface, rigidity HR55° -57°
Main motor power: 5kw
Speed of forming: 5-10m/min
Stand: 350# steel welding
The plating chromium of rollers' surface: 0.05mm
Thickness of the steel: 0.4-0.8mm
Chains: 1 inch
Thickness of wall plate: 14mm
Dimension of the machine: 7 m*1.2m*1.5m (depend on final design)
Weight of the machine: 4 ton (depend on final design)

7. Cold roll forming machine installation and training:
1)If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
2)Without visiting, we will send you user manual and CD to teach you to install and operate.
3)If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
4)Spare parts: Bearings, buttons, chains, magnetic valve etc.

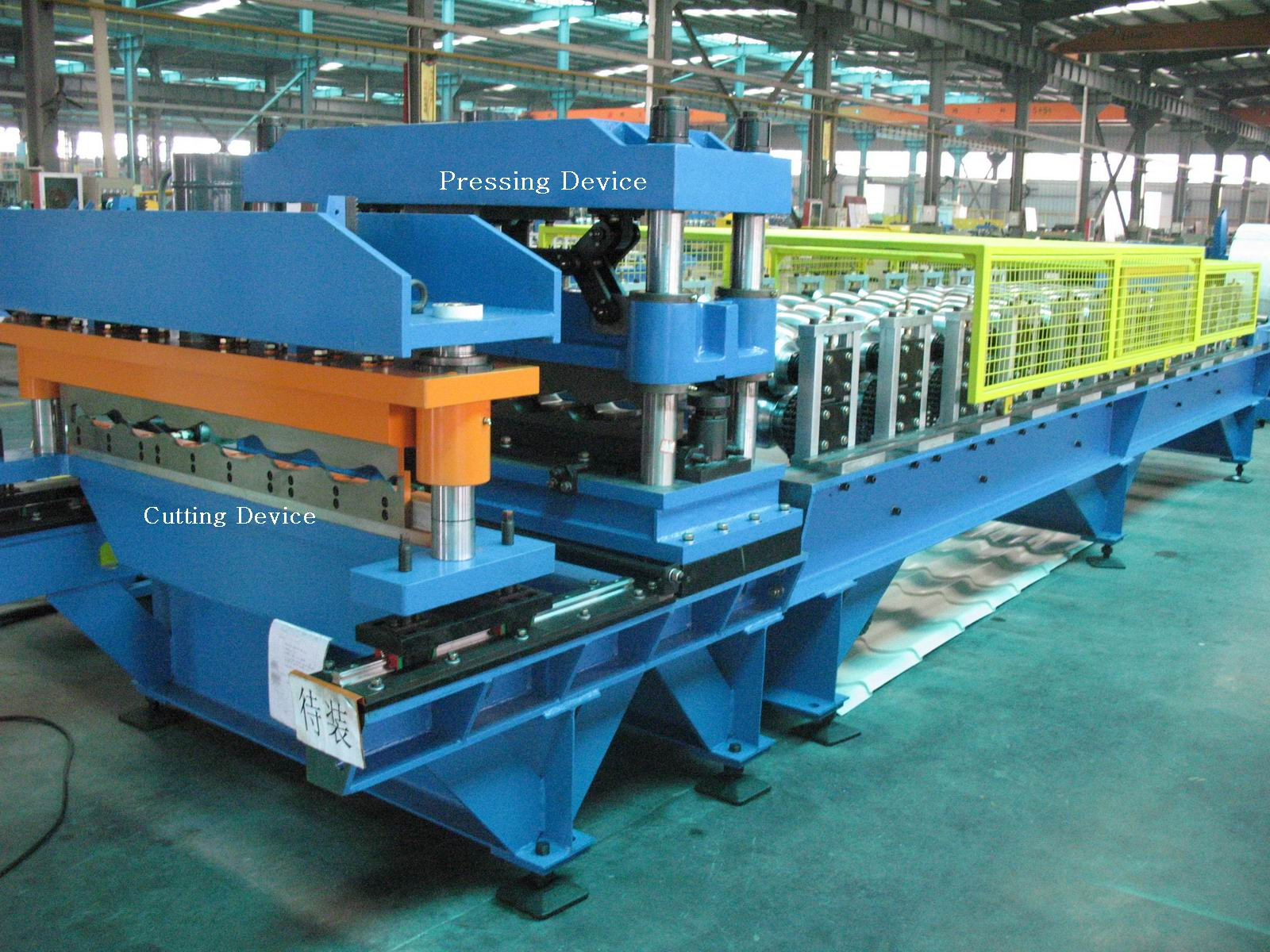

Main machine:



Loading Pictures:


Workshop:

No.	Cold Roll Forming Machine
1	Suitable to process	Color steel plate
2	Width of the plate	1000mm
3	Thickness of the plate	0. 3 - 0.8 mm
4	De-coiler	Manual one, can load 5 tons raw material
5	Rollers  for forming	9  rows
6	Diameter of the roller	70 mm
7	Rolling material	Carbon  Steel 45#
8	Main motor p ower	4 kw
9	Productivity	8-1 2 m/min
10	Cutting method	Hydraulic mould cutting
11	Material of the cutting  b la d e	Cr12
12	Hydraulic cutting power	3kw
1 3	Processing precision	Within 1.00mm
1 4	Control system	Delta  PLC control
15	Side panel of machine	14mm
16	Main structure of the machine	300 H steel
17	Weight	About 3.0T
18	Dimensions	5.5 *1. 45 *1.1 m
19	Voltage	380V 50Hz 3phases (changeable as needs)
20	Certificate	CE/ISO /TUV
