| Prod Model: |
cus-CRFM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Scope: |
Cold Roll Forming Machine |
| Usage: |
Manufacture Wall Panel |
| Raw Material: |
Galvanized,Galvalume,Aluminum,PPGI |
| Control System: |
Delta PLC |
| Roller&Cutter Standard: |
Cr12 |
| Materials: |
Steel |
| Machine Frame Stand: |
Welded Structural Steel |
| Voltage: |
380V 3pH 50Hz ( or as Your Requirement) |
| Forging Forming Method: |
Mold Forging |
Product Description

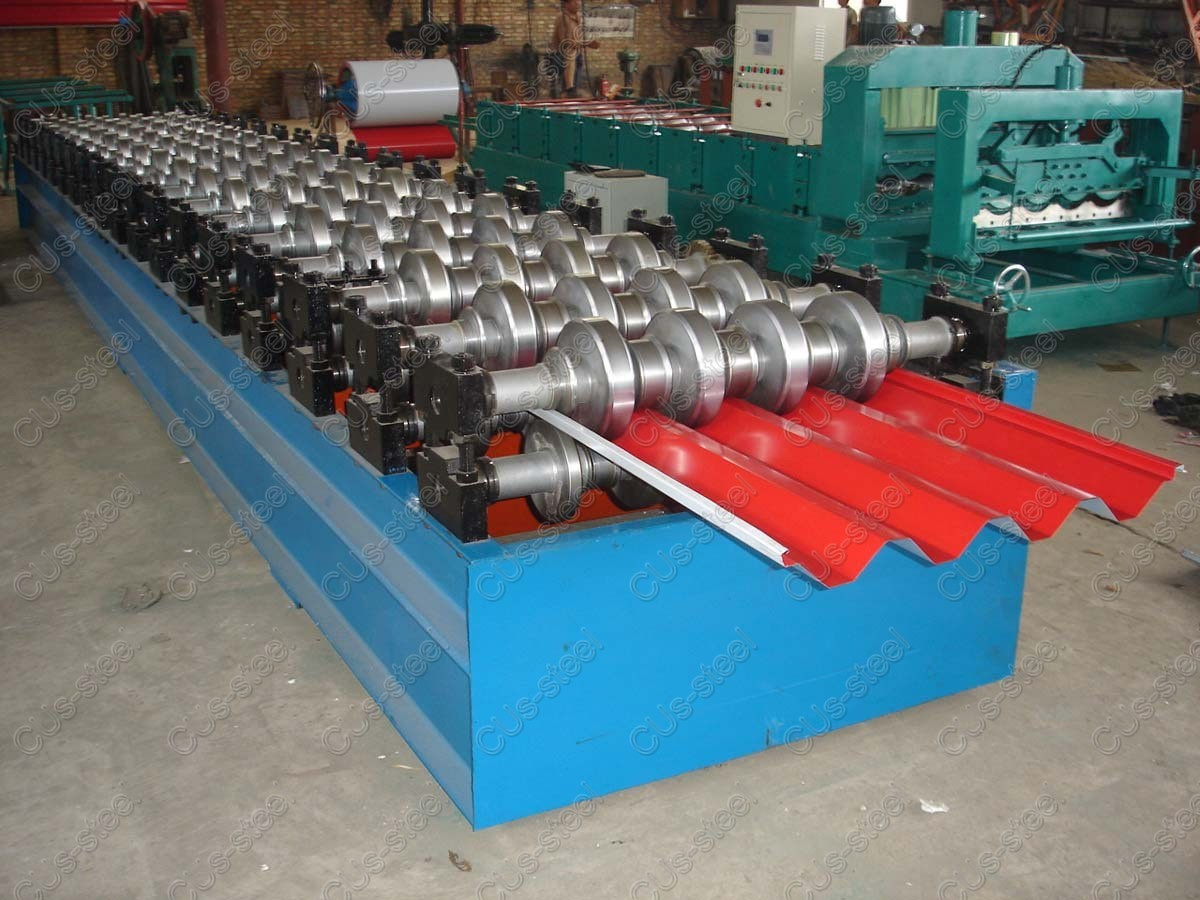

Quick Details of metal roofing round wave sheet machine
Type: Tile Forming Machine
Tile Type: Steel
Production Capacity: 8-12meter/min
Place of Origin: Henan China (Mainland)
Brand Name: CUS-STEEL
Model Number: Roof sheet machine
Power(W): 5 kw
Voltage: 380V 50Hz 3pH
Dimension(L*W*H): 6.8*1.5*1.3
Weight: 4 ton
Certification: CE
Warranty: 1 year warranty, one year
After-sales Service Provided: Engineers available to service machinery overseas
Forming speed: 8-15 m/minute
Diameter of Shaft: 72mm
Controlling system: PLC
Precutter: Hydraulic precutter
Roller: Solid rollers
One set of metal roofing round wave sheet machine includes:
Forming machine, forming press system, hydraulic system, computer controlling system, counter, cutting system, material feeding support.
Service of buying metal roofing round wave sheet machine
Our products are widely used in various industrial factory, beauty spot, holiday village building, hotel, exhibition, easy steel building manufacturing, and have features such as nice appearance and durable.
Within in one year if any parts go broken we will send new ones to replace for free, after the warranty period, we will help you repair the machine, you only responsible for the labour and parts if the machine have some problems.
| 1.Suitable material | Color steel sheet , galvanized steel sheet,aluminum sheet |
| 2. Installation Dimension (L*W*H): | 8 m*1.5m*1.4m |
| 3.Main motor power | 3KW with Cycloidal reducer |
| 4.Hydraulic station power | 3KW |
| 5. Hydraulic oil pump | CB-E 310 |
| 6.Thickness of material | 0.3mm~1.0mm |
| 7.Diameter of principal axis | Φ80mm |
| 8.Material expand width | 1000mm |
| 9.Electric tension | 380V 3phase 50HZ or as the customer's requirements |
| 10.Material of roller | High grade 45# forged steel plated with hard chrome plating |
| 11.Controlling system | PLC |
| 12.Processing speed | 8-12m/min |
| 13.Processing precision within | 1.00mm (depend on design) |
| 14.Material of cutting blade | Cr12 mould steel with quenched treatment |
| 15.Kind of drive | 0.6 inch chain link bearing model 6210 |
| 16.Roller station | 16 Rollers |
| 17.Roller material | high grade 45#steel; Cr12 quenching |
| 18. Leak frame load-bearing | 5T
|
