| Prod Model: |
836 |
| Forging Forming Method: |
Mold Forging |
Product Description

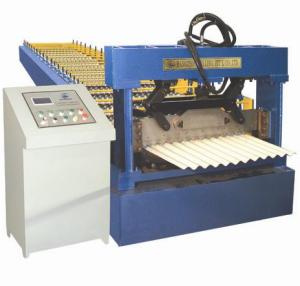

1. Components of Corrugated Roll Forming Machine
The roll forming machine consists of manual uncoiler, infeed guide, fixed position driven forming stations, cutting equipment, hydraulic station, control console, and manual unload product run out table.
2. Technical Parameters
Material specification: Aluminum, galvalume, galvanized and pre-painted galvanized steel.
Thickness: 0.3 mm to 0.7mm.
Main motor power: 4 kw.
Hydraulic station power: 3 kw.
Feeding width: 914/1000/1200mm.
Cover width: 760/836/988mm.
Yield stress: 235Mpa(33KSI) ~ 345Mpa (50KSI).
Roll forming Speed: 12 m/minute.
Cutting Tolerance: +/-2.5mm(length≤ 5000mm); +/-3.0mm(5000mm
Manual Uncoiler: Max. Capacity: 5000kgs.
Coil inner diameter: 508mm.
Voltage: As per customer's request.
Numbers of stands: 18 stands/stations/pairs.
Type of cutting: Roll-formed and length-set profile cutting.
3. Material of Main Equipment
Roller Material: High grade No. 45 forged steel, coated with hard chrome.
Active Shaft Material: High grade No. 45 carbon wrought steel, which can improve the integrated mechanic feature of the shaft.
Electric Elements: PLC control panel, transducer imported from Mitsubishi of Japan.
Other elements are from famous suppliers of China.
Cutter blades: Cr12 mould steel with quenched treatment.
4. Process sketch
Uncoiling the sheet --- Infeed guiding --- Roll forming --- Measure length --- Cutting the panel --- Panels to the supporter (option: Automatic stacker).
