| Prod Model: |
ZYYX |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Machine Color: |
Made-to-Order |
| Certificate: |
CE, ISO |
| Place Of Origin: |
China |
| Main Motor Power: |
2.2 Kw |
| Crimping Length: |
Min. 25 Mm |
| Operation Language: |
English or as Per Client`S Required |
| Guarantee Time: |
First Year Free, Lifetime Services |
| Controlling System: |
Mitsubishi PLC & Converter |
| Shaft Diameter: |
72mm |
| Quality System: |
ISO |
| Type: |
Crimping Machine |
| Forging Forming Method: |
Crimping |
Product Description

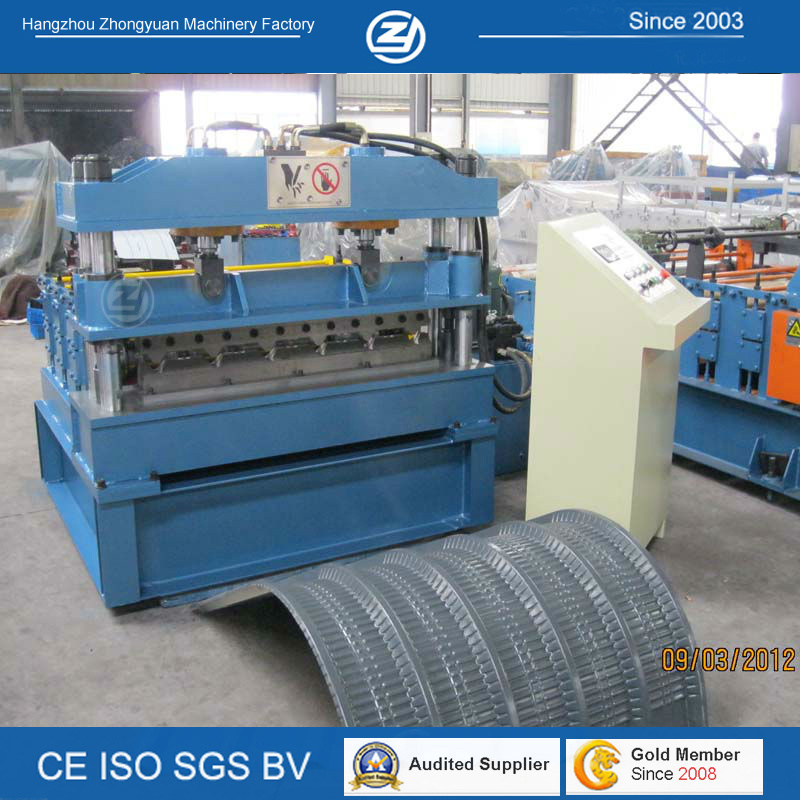

Crimping Forming Machine
Products feature:
This crimpling machine is used to curve panel for formed sheet. Profile can be designed according to customers request.
Why choose this machine?
1. Certificate: ISO 9001, CE,
2. Lifetime services
3. 72mm diameter solid steel shaft. Roller cover with 0.05mm chrome; Lifetime>10years.
4. Introduced Mitsubishi PLC with touch screen to machine controll system.
5. One worker operation (minimum)
6. Heat treatment:Cutting blade. Quenched treatment: Cr12 mould steel cutter
7. Product cut-to-length.
8.Technician overseas installing and training available
Main technical parameters
1) Material thickness: 0.4-0.6mm color steel sheet or galvanized steel sheet.
2) Main motor power: 2.2kw (Depend on final design)
3) Hydraulic station power: 5.5kw (Depend on final design)
4) Crimping length: Min. 25 mm
5) Crimping times: About 12times /minute
6) Feeding Table: About 1500mm
7) Bending: By hydraulic
8) Control: PLC control
9) Curving roller material: Cr12 mould steel.
10) Size of machine: 3000mmX1750mmX1600mm
| Item | Specification |
| Mterial | Thickness (mm) | 0.4-0.6 |
| Yield strength (mpa) | 235-345 |
| Roller material | 45#Chrome steel |
| Speed adjusting mode | AC Frequency |
| Control mode | Mitsubishi PLC |
| Main motor power (kw) | 5.5 kw (Depend on final design) |
| Hydraulic station power | 2.2 kw (Depend on final design) |
| Total power (kw) | 7.7 kw |
| Machine`s size | About 3*1.75*1.6m (Depend on final design) |
| Crimping length | Min. 25 mm |
| Crimping times | About 12times /minute |
| Feeding Table | About 1500mm |
| Bending | By hydraulic |
Controller:
Controller is the "CPU" of forming machine. We choose Mitsubishi PLC from Japan.
With touch screen mode, let your workers enjoy the easy operation;
With auto working mode, let your workers free their hands!
About us
We are professional in making roll forming machines since 2003. Company occupies 6650, in which 5650 for workshops.
1. Capacity: 12-15 sets/month
2. Delivery: in only 5-8 weeks for urgent order
3. Have our own tool center. 12 sets CNC machines.
4. Zhongyuan is a "All-in-house source"
--from raw material to the final high-precision forming machine. We have our precise tooling center.
5. You can rely on our team!
We have engineers with experience more than 15 years in metal forming industry.
Get Free:
"Send" below get profile drawing & design technical support by our 15 year experience technicians FOR FREE!
Established in 2003, Zhongyuan Machinery Factory is experienced manufacturer of metal forming machinery with ISO quality system. We offer a vast range of products, including in sandwich panel line, metal tile forming machine, cladding forming machine, metal decking forming machines, etc. We also can supply steel coils, EPS sandwich panels, PU sandwich panels to suit diverse requirements of our global customers.
At Zhongyuan, our R&D department is staffed with senior engineers who has more than 10 years experience in metal forming machine industry, So we are able to assist customers with professional designing and solution. And more, Our own tooling center is equipped with CNC turning-lathes, Grinding machine for roller shaft, Heavy planing machine, etc, which allow us to complete the majority of our processing procedures on-site. So we can better control the machine quality and delivery time of machines. All our forming machines are undergoes a series treatments, like cutting frames with heat treatment to remove stress of steel, to ensure all our performance requirements are met.
At Zhongyuan, we endeavor to provide quality built metal forming machines at economical prices. By purchasing qualified raw materials from suppliers which we have long term relationships with, we greatly reduce our material cost. Our company is located in Hangzhou City, about 2 hours from Shanghai and 1.5 hours from Ningbo port. This location allows us to ship products quickly and economically to our customers all over the world. As a result, we are able to satisfy our customers with both a high quality and economical metal forming machines.
Today, we have established lasting business relations with customers in more than 20 countries, such as America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Australia, Fiji, Papua New Guinea, Kuwait, Syria, Oman, U. A. E, Nigeria, Tanzania, Ethiopia, Gana, South Sudan, Algeria, Niger, Philippines, Indonesia, India, and others.
We have rich experience for metal forming machine solution, competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.
