| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Suitable To Process: |
Color Steel |
| Thickness Of The Plate: |
0.2-0.7mm |
| Material Length: |
4-6m |
| Angle: |
7 Kinds of The Under Mold |
| Degrees: |
45-135 ° |
| Size: |
6.3*0.8*2m |
| Forging Forming Method: |
Tire Mold Forging |
Product Description
Raw material: Aluminium
Coil weight: 5000Kg
Thickness: 0.18-1.2mm
Material width: 1240mm and 1550mm
2. Process flow
Decoiling--feeding--leveling--cutting --slitting--recoiling
(for 1250mm width material)--recoil(for 1550mm width material)
3. Manual Decoiler
1. Material coil inner diameter: 405mm-505mm
2. Max coil width: 1600mm
3. Carrying capacity: 5000kg
4. Leveling device
1. Shaft material: 45# steel 45# steel quenching and retempering treatment,
Outer diameter 85mm
2. Number of shaft: 1 step of feeding, leveling shaft up: 5 pieces, down: 6 pieces
3. Gear transport
4. Max Forming speed: 50m/min
5. Main motor power: 5.5kw
5. Hydraulic
Cutting device
1. Hydraulic Station: 1set
2. With hydraulic station, motor 5.5 KW
3. Cutting press 40 ton
4. Hydraulic cutter
5. Blade and mold material: G12 steel with quenched treated 60-62° C
6. Cutting system: Advanced hydraulic drive, automatic cutting after
Forming, no distorting or wasting, high level safety factor.

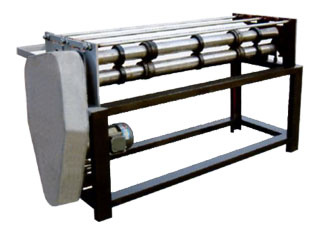

6. Slitting device
1. Material width for slitting: 1240mm
2. Slitting width: 310mm---1240mm
3. Number of strip: 2 strips or 4 strips
4. Width tolerance: ± 1mm
5. Slitting Speed: 50 m/min
6. Slitter distance can be adjusted
7. Slitter material: GI or PPGI
8. The slitting and cutting can work separately.
7. Control
Device
1. Screen: Taida touch screen
2. PLC: Dalta
3. Automatic length measurement
4. Automatic quantity measurement
5. PLC is used to control length and quantity.
Machine will automatically cut to length and stop when required quantity is achieved
6 Length inaccuracy can be amended easily
8. Electric recoiler
1. Material coil inner diameter: 405mm--505mm
2. Max coil width: 1600mm
3. Carrying capacity: 5000kg
4. Manual expanding
5. Motor power11kw
6. Manual stop device
7. Transport by chain
Botou xinsheng roll forming machinery factory, dedicated to focus on cold_formed metal plate roll forming equipment and manufactureing, now has a unique mode of management and product development capacity, ranking with the industy-leading level. My plant products due to structural light, design reasonable, constantly updated and greatly favored customers.
My factory is located in the Bohai Sea Economic circle, China foundary city-Botou city, north of Beijing and Tianjin, East Bohai Sea, 104, 106National Road, Beijing-Shanghai Railway, Beijing-Fuzhou Expressway runs through the city, convenient transportation and location.
My factory'main products include: Glazed tile equipment, building equipment contractors board, C/Z shaped steel forming equipment, composite plate molding equipment, automobile car plate, anode plate, such as dust removal equipment, and in accordance with the actual needs of the user-made production. At the same time provide users with pre-sales, after a series of technical guidance, production, installation, repair through-train service.
