| Prod Model: |
4m |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Suitable To Process: |
Color Steel |
| Thickness Of The Plate: |
0.2-0.7mm |
| Material Length: |
4-6m |
| Angle: |
7 Kinds of The Under Mold |
| Degrees: |
45-135 ° |
| Size: |
6.3*0.8*2m |
| Forging Forming Method: |
Tire Mold Forging |

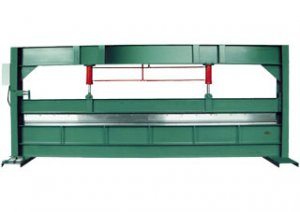

Product Description
Suitable to process: Color steel
Thickness of the plate: 0.2-0.7mm
Material length: 6m
Angle: 7 kinds of the under mold
Productivity: 10m/min
Mold material: Cr 12
Rolling material: Forging steel 45#
Degrees: 45-135 °
Frame: 300H
Specifications of frame: Q235
Hydro-sylinder: 16t
Reducer: NO. 4(speed ratio1: 56)
Control syste: PLC
Size: 6.3*0.8*2m
Weight: 0.5t
Main motor power: 3kw
Hydraulic power: 3kw
Voltage: 380V OR 220V
Botou xinsheng roll forming machinery factory, dedicated to focus on cold_formed metal plate roll forming equipment and manufactureing, now has a unique mode of management and product development capacity, ranking with the industy-leading level. My plant products due to structural light, design reasonable, constantly updated and greatly favored customers.
My factory is located in the Bohai Sea Economic circle, China foundary city-Botou city, north of Beijing and Tianjin, East Bohai Sea, 104, 106National Road, Beijing-Shanghai Railway, Beijing-Fuzhou Expressway runs through the city, convenient transportation and location.
My factory'main products include: Glazed tile equipment, building equipment contractors board, C/Z shaped steel forming equipment, composite plate molding equipment, automobile car plate, anode plate, such as dust removal equipment, and in accordance with the actual needs of the user-made production. At the same time provide users with pre-sales, after a series of technical guidance, production, installation, repair through-train service.
