Product Description
Specifications
1. High wave, high strongness, high atuomation
2. Passed by CE and ISO9001
3. Adopt PLC system and easy to handle
The panel produced by this machine has high strength with big wave. It adheres well to concrete. It is used on high buildings. It not only saves steel mold plate, but also saves investment.

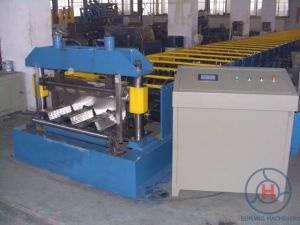

The deck floor panels forming by this machine is used for high building surface panels, it has so many good advantages, such as high wave, high strongness, high atuomation, low cost.
Main technical parameters:
Number Items Unit\Type RF-FD
1 Steel Thickness mm 0.8-1.2
2 Steel feeding width mm 1000-1250
3 Forming Speed m/min 10-15
4 Roller stands stand 30-36
5 Roller Material 45# steel, coated with chrome
6 Hydraulic cutting Power Kw 18
7 Hydraulic pressure Kw 5
8 Hydraulic pressure Mpa 12
9 Power Supply 380V, 50HZ, 3 phase
10 Tolerance mm 1.5
11 Material of cutting Cr12
12 Control system PLC with touch screen
13 Machine net weight T 16
Machine Components:
Unpowered Decoiler, Main forming machine, Forming cutter, Computer control system, Hydraulic station, Product Rack
Working Flow
Decoiling guiding and feeding roll forming cut to length run out table
|
Number |
Items |
Unit\Type |
RF-FD |
|
1 |
Steel Thickness |
mm |
0.8-1.2 |
|
2 |
Steel feeding width |
mm |
1000-1250 |
|
3 |
Forming Speed |
m/min |
10-15 |
|
4 |
Roller stands |
stand |
30-36 |
|
5 |
Roller Material |
|
45# steel, coated with chrome |
|
6 |
Hydraulic cutting Power |
Kw |
18 |
|
7 |
Hydraulic pressure |
Kw |
5 |
|
8 |
Hydraulic pressure Mpa |
Mpa |
12 |
|
9 |
Power Supply |
|
380V, 50HZ,3 phase |
|
10 |
Tolerance |
mm |
1.5 |
|
11 |
Material of cutting |
|
Cr12 |
|
12 |
Control system |
|
PLC with touch screen |
|
13 |
Machine net weight |
T |
16 |
Botou Zhongteng Machinery factory supply all kinds of roll forming machine, our main production: colored steel roll forming machine, Gusset plate machinery, C/Z purlin forming machine, double decked roll forming machine, floor deck roll forming machine, glazed tile roll forming machine, ridge tile roll forming machine, Roof Panel Roll Forming Machine, shutter door roll forming machine, Cutting machine, Bending machine, etc. We have advanced technology and equipment, detection means is consummate, and developed the automatic intelligent production line for roll forming machine.
Our company has perfect after-sales service network, can provide full support to you, helping you get the most satisfactory equipment, and insure you get the device timely to solve all the problems in process. We always put the interests of customers in the first place, and put the concept through design to after-sales service, enables our products to help customers improve efficiency, reduce costs, enhance competitiveness, we will completely according to your requirements and needs to carry on the design and manufacturing, and give you the most ideal machine.
