Decking Roll Forming Machine

Decking Roll Forming Machine
Price: US $ 48000-150000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T
Prod Model: ZYYX
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Machine Size: 15*1.7*1.5m
Main Motor: 11*2kw
Hydraulic Motor: 5.5kw
Operation Language: English or as Per Client`S Required
Rollers Material: No.45 Forged Steel with Hard Chrome
Cutter Material: Cr12 Mould Steel with Quench Treatment
Cutting Style: Automatic Cut to Length
Cotrol System: Mitsubishi PLC & Converter
Shafts For Rollers: Grand Twice, 72mm Diameter Solid Steel
Machine Type: Decking Roll Forming Machine
Forging Forming Method: Cold Roll Forming

Product Description

Decking Roll Forming Machine

Why choose this decking roll forming machine?

1. Certificate: ISO 9001, CE,
2. Lifetime seivices
3. 72mm diameter solid steel shaft. Roller cover with 0.05mm chrome; Lifetime>10years.
4. Introduced Mitsubishi PLC with touch screen to machine controll system.
5. One worker operation (minimum)
6. Heat treatment:Cutting blade.  Quenched treatment: Cr12 mould steel cutter
7. Product cut-to-length.
8.Technician overseas installing and training available


Parameters
ItermSpecification
MaterialTypeColor steel sheet or galvanized steel sheet
Thickness(mm)0. 8 -1.2
Yield strength(mpa)235 -345
Roller material45#Chrome steel
Forming speed(m/min)About 12-15m/min
Speed adjusting modeAC Frequency
Roller drive                                               Decelerating motor + Chain drive
Cutting modeHydraulic cutting
Cutter material Cr12 mold steel
Length measurementEncoder
Control modeMitsubishi  PLC
Operating modeButton + Mitsubishi Touch screen
Main motor power(kw)11*2 kw  (Depend on final design)
Hydraulic station power 5.5 kw  (Depend on final design)
Total power(kw)17.5 kw
Uncoiler's loading capacityMax. Capacity: 5000kgs
(can be increased to be 10T)
Machine`s sizeAbout 15*1.7*1.6m  (Depend on final design)
Machine weightAbout 16000kgs

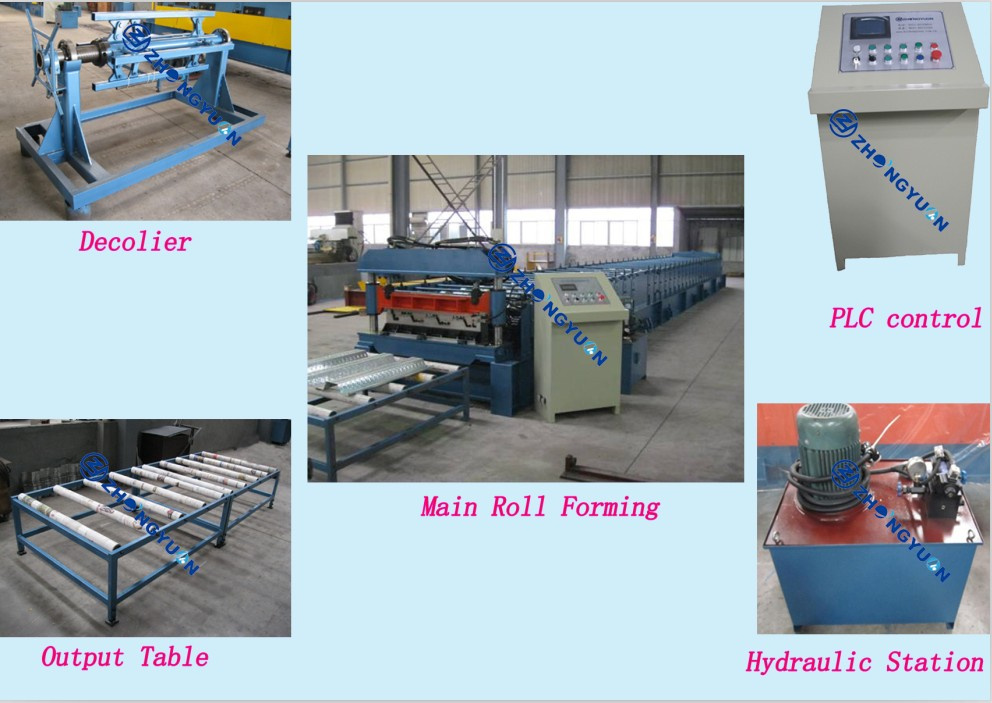

Components of machine:
Decoiler1set
Feeding & guiding device1set
Pressing system1set
Main roll forming machine1set
Cutting device1set
Hydraulic cutting system1set
PLC Controlling system1set
Run out table 1set


Process flow:
Decoiler -- Feeding & Guiding -- Pressing--Roll Forming--Hydraulic Cutting - Product to Run Out Table

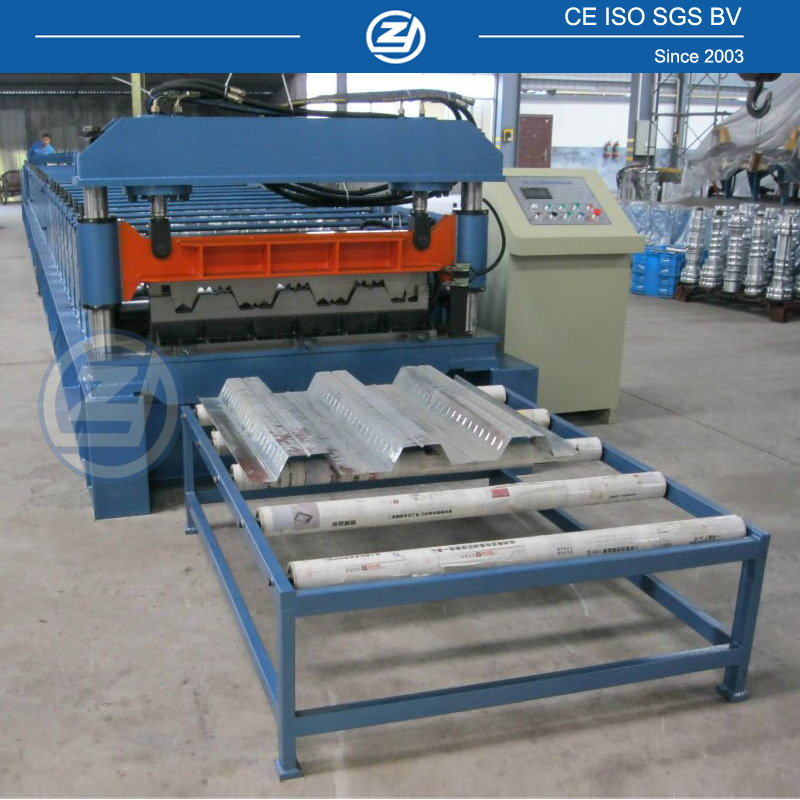

Machine over view

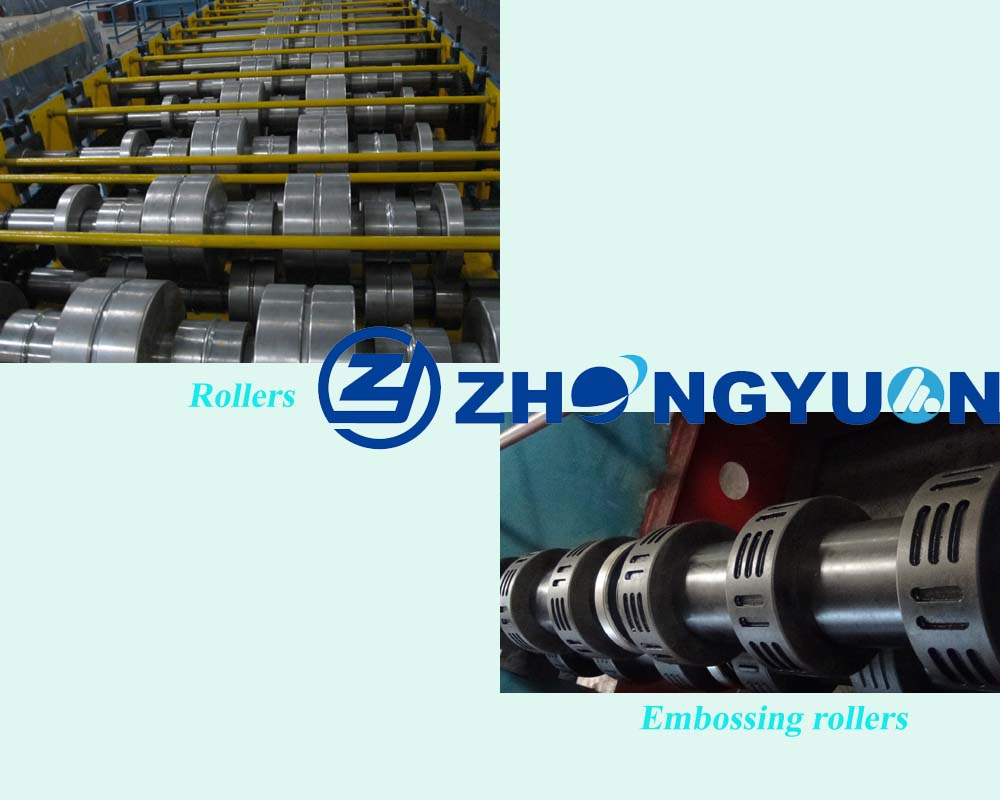

82mm solid steel shafts; hard chome covered rollers

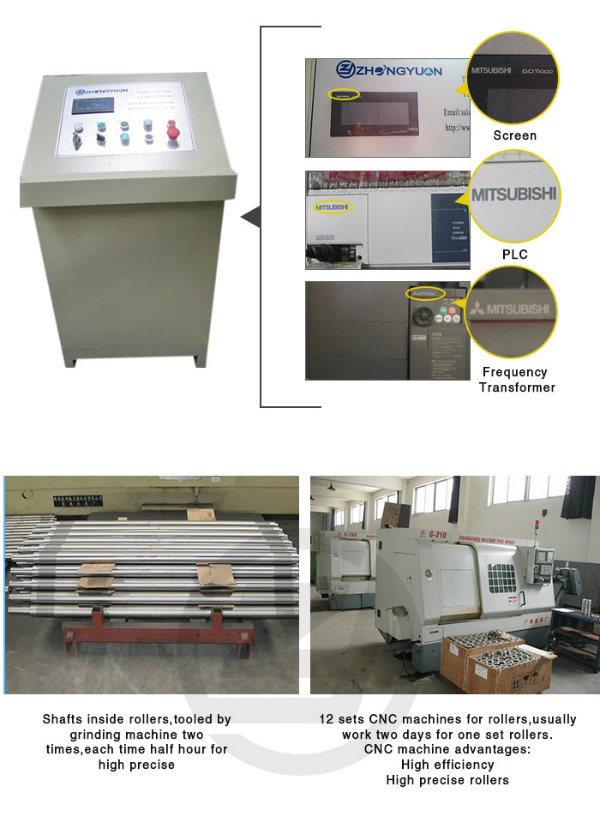

Controller:
We choose Mitsubishi PLC from Japan.
With touch screen mode, let your workers enjoy the easy operation;
With auto working mode, let your workers free their hands!

About us
We are professional in making roll forming machines since 2003. Company occupies 6650, in which 5650 for workshops.
1.  Capacity: 12-15 sets/month
2.  Delivery: in only 5-8 weeks for urgent order
3.  Have our own tool center. 12 sets CNC machines.
4. Zhongyuan is a "All-in-house source"
     --from raw material to the final high-precision forming machine. We have our precise tooling center.
5.  You can rely on our team!
      We have engineers with experience more than 15 years in metal forming industry.


Get Free:
"Send" below get profile drawing & design technical support by our 15 year experience technicians FOR FREE!




Established in 2003, Zhongyuan Machinery Factory is experienced manufacturer of metal forming machinery with ISO quality system. We offer a vast range of products, including in sandwich panel line, metal tile forming machine, cladding forming machine, metal decking forming machines, etc. We also can supply steel coils, EPS sandwich panels, PU sandwich panels to suit diverse requirements of our global customers.

At Zhongyuan, our R&D department is staffed with senior engineers who has more than 10 years experience in metal forming machine industry, So we are able to assist customers with professional designing and solution. And more, Our own tooling center is equipped with CNC turning-lathes, Grinding machine for roller shaft, Heavy planing machine, etc, which allow us to complete the majority of our processing procedures on-site. So we can better control the machine quality and delivery time of machines. All our forming machines are undergoes a series treatments, like cutting frames with heat treatment to remove stress of steel, to ensure all our performance requirements are met.

At Zhongyuan, we endeavor to provide quality built metal forming machines at economical prices. By purchasing qualified raw materials from suppliers which we have long term relationships with, we greatly reduce our material cost. Our company is located in Hangzhou City, about 2 hours from Shanghai and 1.5 hours from Ningbo port. This location allows us to ship products quickly and economically to our customers all over the world. As a result, we are able to satisfy our customers with both a high quality and economical metal forming machines.

Today, we have established lasting business relations with customers in more than 20 countries, such as America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Australia, Fiji, Papua New Guinea, Kuwait, Syria, Oman, U. A. E, Nigeria, Tanzania, Ethiopia, Gana, South Sudan, Algeria, Niger, Philippines, Indonesia, India, and others.

We have rich experience for metal forming machine solution, competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.
