| Prod Model: |
XZ-400B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe |
| Model: |
Xz-400b |
| Power: |
400kw |
| Frequency: |
0.5kHz-20kHz |
| Application Case: |
Diameter 150 Round Bar Forging |
| Molding Style: |
Forging |
| Processing Object: |
Metal |
Product Description

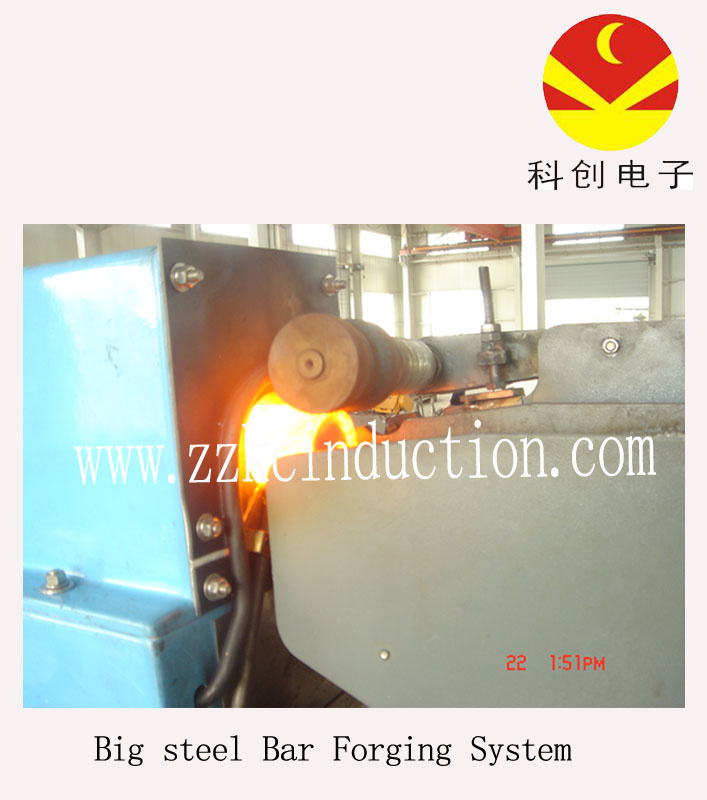

1. Diameter 150 Round Bar Forging Production Line XZ-400KW Description:
Input Power: 400kw
Input voltage: 380V 50Hz
Oscillating Frequency: 0.5-20 kHz
Water pressure: 0.15-0.3MPA
2. Kechuang diameter 150mm round bar forging production line technology:
(1)Adopts series resonance technique, induction coil output high voltage and small current, resonance circuit loss is average lower 25 times than parallel resonance, whole machine save energy 10-20%. It saves energy 50% and more than old fashion medium machine. It is the most save electric heating equipment in domestic at present.
(2)Induction furnace adopts thermal insulation, keep temperature, insulation technique processing, not only heat loss minimum, and greatly reduces the sensor maintenance cost. Induction coil structure is simple, easy maintenance, the abandonment of traditional casting process, won't have crack and scrap.
(3) The 12 pulse technology thorough solve the induction heating machine pollution problem to power network.
(4) Improve coil voltage and save energy, at the same time, adopts patent technology
Solved throughtly for the coil voltage high lead in flint fault, bringing unsafe factors.
(5) Integration design, compact structure, simple operation,
(6) bar could heat to Φ 300mm, the furnace and core temperature controlled.
(7) It has finished forging to copper, aluminium, etc.
(8)Configure automatic feeding, feed, sorting, fast material, etc, it can realize automation control.
Zhengzhou Kechuang Electronic Co., Ltd, as a king induction heating machine manufacturer in China, we have the following advantages:
1. Induction heating machine power from 8KW-1000KW, with frequency range from 0.1kHz-500kHz.
2. Main circuit adopts Siemens IGBT series resonance circuit.
3. We focus on the metal parts heat treatment production line.
4. We cooperate with the Zhengzhou University.
5. We have CE, SGS certification.
Zhengzhou Kechuang Electronic Co., Ltd is Henan high& new technology enterprise, China heat treatment association membership. From the company's founding, Kechuang Electronic always takes the scientific& technological innovation as the company development driving force. Company has obtained more than ten national patents, has won many many national and provincial science&technology innovation award. Set up henan province induction heating engineering center, has developed hundreds of market welcome products. Has already passed the European Union CE certification, not only in all over China, Asia, Europe, America, Africa, Oceania, everywhere you can see kechuang products and also the engineer local service figure.
