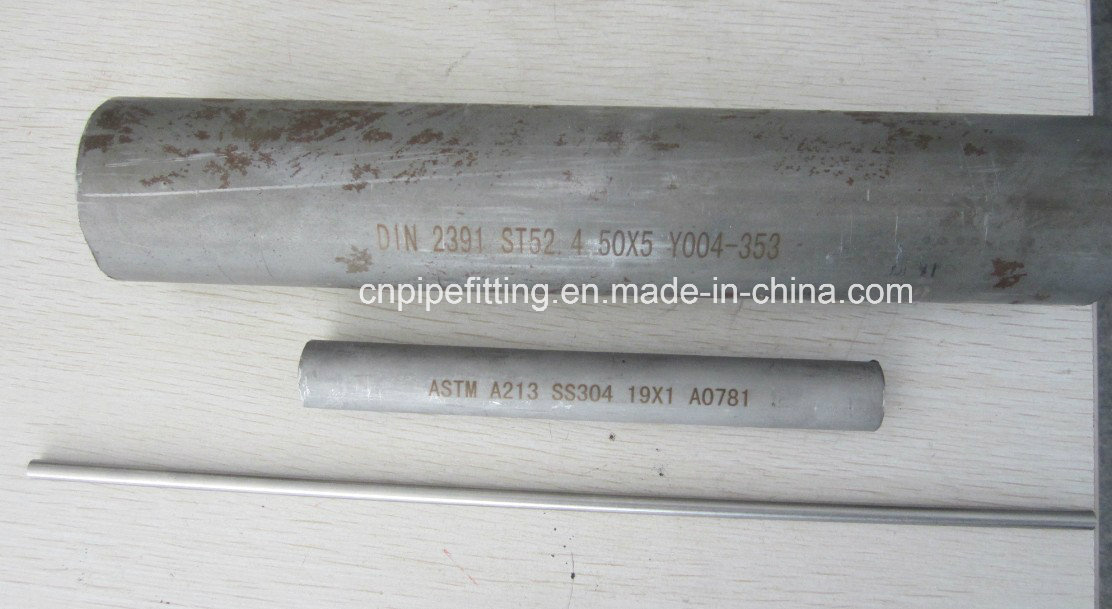

DIN 2391, En 10305-1, Bs 6323 Precision Seamless Steel Pipes

Name: DIN 2391, En 10305-1, Bs 6323 Precision Seamless Steel Pipes
Brand: china-castingforging.com
SKU: 697008382
Availability: InStock
Rating: 5 (60 reviews)

Price:	US $ 800/Ton
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Ton
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Dingxiang C&N Huarui Forging Co., Ltd.

Showroom Product Company Profile

Prod Model:	DIN 2391, EN 10305-1, BS 6323 steel pipes
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Heat Treatment:	Bk, Bks, Gbk, Nbk,Stress Relief, Normalizing, ...
Type:	Seamless
Usage:	Pipeline Transport
Section Shape:	Round
Technique:	Cold Drawn
Application:	Gas Pipe
Certification:	CE

Product Description

Seamless Steel Hydraulic Tube

Precision tubes are finished up by special cold drawing. Precision tubes corresponds to the usage in which a high surface quality and excellent Dimensional accuracy.
1- Outside Diameter: 30 to 53mm 2- Thickness: 2 to 4mm 3- Grades: 304, 304L, 316, 316L, 321, 310S... 4- Applications: A) Precision machine equipment B) Medical treatment C) Semiconductor D) Food E) Cylinder F) Biochemical industry G) Nuclear power H) Sensor I) Thermocouple J) Instrumentation Tubing K) Aviation

+C	+LC	SR	+A	+N
BK	BKW	BKS	GBK	NBK
Cold-drawn/hard	Cold-drawn/soft	Stress relieving	annealed	normalized

Quick Details

Thickness:	2 - 50 mm	Section Shape:	Round	Outer Diameter:	21.3 - 508 mm
Place of Origin:	China	Secondary Or Not:	Non-secondary	Application:	Boiler Pipe
Technique:	Cold-drawn	Certification:	API	Surface Treatment:	oil-coated or bitum-coated
Special Pipe:	API Pipe	Alloy Or Not:	Non-alloy	Grade:	St52.4,ST37.4,ST35-ST52
Standard:	DIN 2391, EN 10305-1, BS 6323

Packaging & Delivery

Packaging Detail:	Mill Standard Package
Delivery Detail:	according to quantity

Specifications
DIN 1630 st37.4 st44.4 st52.4 high perfermance seamless steel pipe
1.OD:33.7-355.6mm
2.WT:3.2-55mm
3.L:1-12m
4.MOQ:25Ton
DIN 1630 st37.4 st44.4 st52.4 high perfermance seamless steel pipe
1.OD:33.7-355.6mm
2.WT:3.2-55mm
3.L:1-12m
4.MOQ:25Ton
seamless steel pipe :size:1/4"-48".standard:ASTM.A53/A106.GR.B.DIN 1630
seamless steel pipe

1.       Function :for liquid converance,low&medium pressure soiler, for heat exchange .
2.       size:1/4-48
3.       length:5.8m. 6m. 12m. and so on ! or for customers request !
4.       material :10#.20#.
5.       steel grade :ST33, ST37.ST35.ST43.ST45
6.       Standard:ASTM.A53/A106,GR.B/GR.A.   DIN1626. DIN17175. DIN1629/4
7.       Outside: painted black or red . as customers request !

steel grade	china	JIS		ASTM	DIN
carbon steel pipe	material	grade	standard	grade	grade	material	standard
	Q235	GGP STPY41	G3452 G3457	A283-D	st33	1.0033	DIN1626
	10	STPG38	G3454	A135-A A53-A	St37	1.011	DIN1626
		STPG35	G3456	A106-A	St37-2	1.0112	DIN17175
		STS38	G3455		St35.8 St35.4	1.0305 1.0309	DIN1629/4
		STB30	G3461	A179-C A214-C	St35.8	1.0305	DIN17175
		STB33	G3461	A192 A226	St35.8	1.0305	DIN17175
		STB35	G3461		St35.8	1.0305	DIN17175
	20	STPG42	G3454	A315-B A53-B	St42 St42-2	1.0130 1.0132	DIN1626
		STPT42	G3456	A106-B	ST45-8	1.0405	DIN17175
		STB42	G3461	A106-B	ST45-8	1.0405	DIN17175
		STS42	G3455	A178-C A210-A-1	St45-4	1.0309	DIN1629/3

C&N Industrial group limited is a leading manufacturer of steel pipef itting, flange products in China With 10 years in pipeline fields both manufacturing and trading. We have been supplying high quality piping material to our customer all over the world.

Our production scope:

Butt weld Fittings:

Standard: ASME B16.9 16.28/MSS SP-43/DIN 2605/JIS B2311/ 2312

Elbows(45Deg, 90Deg, 180Deg), Tee(Equal&Reducing), Cross, Reducer, Cap, olet, etc

Forged fittings: THREADED/SOCKET WELD

ASME B16.11, BS3799, JIS B2316, MSS-SP-79, MSS-SP-83

ELBOW, TEE, CROSS, UNION, COUPLING, CAP, BOSS, BUSHING, OUTLET, INSERT

Flanges: ASME/ANSI/API JIS, DIN, EN/BS

Welding Neck, Slip on, Threaded, Socket Welding, Blind, Orifice,

We are also offering our customer a total soluation for the whole piping material packages

Which includes, stainless steel pipes, carbon steel pipes, valve, gasket, bolts etc.

For further information about our company and products, please visit our website, and please do not hesitste to drop us a mail for any inquiry.
