Product Description
L Door panel roll forming machine Main technique data:
1) Thickness: 1.2mm
2) Raw material: Galvanized coil
3) Yield strength: ≤ 235MPa
4) Feeding width: Max1350mm
5) Roll forming station: About 12 steps
6) Material of rollers: 45#
7) Line speed: About 10m/min
8) Power: 380V/50HZ
L Door panel roll forming machine Components of machine:
1) Feeding guider 1 set
The vertical can be adjust of guiding device, the hand wheel control one said can be located and locked, the bearing mounted on the feeding month of guiding panel, the chains mounted on the middle side as guider.
Guiding length: 600mm (From feeding bearing to exit )
Width adjusting range: 750/1350± 40mm
2) Leveling device 1 set
Flat and feed the coil into the machine, the leveling roller can be up and down, easy for adjust the space and obliquity.
The device consists of 5 rollers and feeding rollers, it was mounted on the roll forming machine.
Suitable width: 1350mm
Suitable material: Galvanized
Suitable thickness: 1.2mm
3) Punching device 2 set
Includes two sets punching device, one set used for punch lock hole, another set used for punch key hole, hydraulic to drive, lay out the right and left side of the machine, it is possible to adjust according to different width.
4) Main machine 1 set
It adopts cantilever raft structure to roll forming, driven by chains and motor.
About 12 steps to roll form, material of roller is 45#, chroming and quenching on the surface of roller.
It is possible to change different width according to adjust the hand wheel, you can change the particle roller when you produce the cover door profile.
Work power: 380V/50HZ
5) Run out table 1 set
Two parts, total length is 6 meters. In order to collect the final product, and
Stacking is convenient.
6) Hydraulic system 1 set
Offer the power for punching device.
7) Electrical control system 1 set
It adopts frequency control the machine to forward and reversion, automatic to punch, easy to operation.

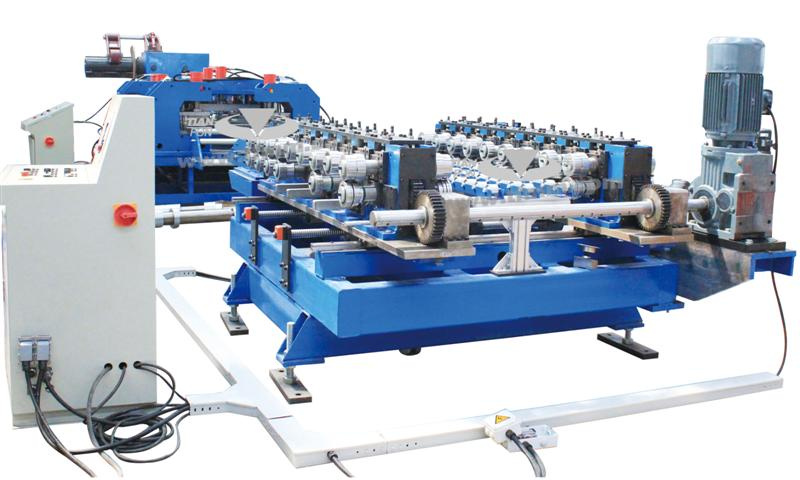

Refer to similar picture
Xinxiang Tianfeng Machinery Manufacture Co., Ltd a leading manufacturer for steel plate coiling machinery, cold-bending & rolling steel plate shaping machineries and automatic production lines. The products are mainly used in steel structure industry for producing C&Z type purlin, colored wall and floor protecting steel plate, thermal insulating plate and load-bearing plate of buildings, and other complementary thin wall cold-bending shaped seel plates, expressway railings, colorful decorating and protecting steel plates for high-grade steel structure residences.
