| Prod Model: |
YLZ-3000 |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Nominal Capacity: |
30000kn |
| Return Force: |
360kn |
| Max. Pressure Of Main Cylinder: |
25MPa |
| Stroke Of Slide: |
500mm |
| Biggest Opening Degree: |
600mm |
| Dimension Of Working Table: |
1500*2500mm |
| Forging Forming Method: |
Mold Forging |
Product Description

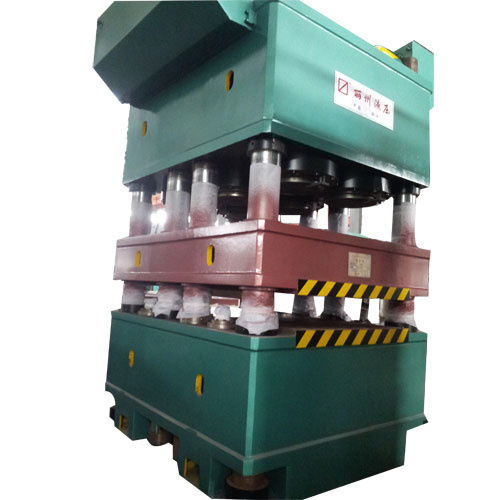

Product Name: Double-Action Hydraulic Drawing Press 3000T
Model NO.: YLZ-3000
Origin: China
Structure
Body with three beams, eight pillar structure. Three beams of high quality steel welding, welding made after aging treatment to eliminate welding stress. Cylinder is 35 forgings, cylinder plunger is chilled cast iron, surface hardness HRC45 or more. Eight columns made of 45, quenched to HBS255-275, hard chrome plated surface hardness of HRC55 or more.
Guide sleeve for the QT450-10 Ductile Iron.
Item
Unit
3000T
Normal force
KN
30000
Return force
KN
425
Max working force
MPa
25
Slide stroke
mm
500
Stroke speed of slide
air-way down
mm/s
100-110
working
mm/s
7-12
return stroke
mm/s
100-110
Table size
L - R
mm
2500
F-B
mm
1500
Motor power
KW
60
Zhejiang Lizhou Hydraulic Equipment Co., Ltd is a new high-tech enterprise which specializes in designing, manufacturing and sales of hydraulic press machine, and providing individualized, various and systematical solutions of metal-forming and nonmetal-forming.
Our main products include single-column, 4-column, hydraulic drawing and stamping press machine. We also specialize in designing and manufacturing various hydraulic press for steel security doors, and hydraulic cylinders, and other hundred kinds of hydraulic and metal-forming equipment. The products are widely used in the fields automobile, aerospace, nuclear power, and shipping etc. With accurate design, reasonable price, professional technology and quality, quick after-sales service, our products have been exported to more than 30 provinces and cities and even to Europe, Japan, Middle East, America, and South-East Asia countries.
If you have special design or requirements, we can customize for you with your drawing. Meanwhile forging moulds and toolings are also in available acccording to customer' S requirements. If you have any inquiry, please feel free to contact us for more details. We highly welcome our customers to visit our factory and make further discuss on our cooperation.
