| Prod Model: |
Yx25-840&YX15-900 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimension: |
800mm/2000mm/1300mm |
| Hydraulic Power: |
1.5kw |
| Motor Power: |
5.5kw |
| Voltage: |
380V/50Hz/3pH |
| Forming Steps: |
14 Steps /9 Steps |
| Working Speed: |
8-14m/Min |
| Thickness: |
0.3-0.6mm |
| Material Width: |
1000mm |
| Effective Width: |
840mm,900mm |
| Forging Forming Method: |
Mold Forging |
Product Description

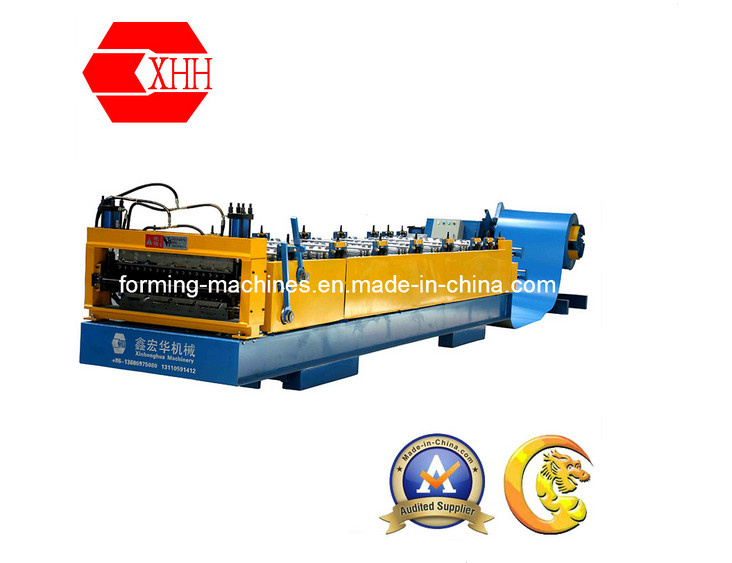

Detail informations of Yx25-840&YX15-900 Double Layer Metal Panel Machine are as follows:
Main Accessories:
(1) Main Forming Machine;
(2) 5 Tons Manual Uncoiler;
(3) Manual Pre-cutter;
(4) Hydraulic System;
(5) PLC Computer Controlling System With Touch Screen
(Brand: Delta or Schneider, or Siemens, choose any one)
(6) Hydraulic Forming Cutter;
(7) Run Out Table(3 PCS);
(8) Tools;
(9) Operation Manual.
Main technical parameter:
1. | Size | Yx25-840&YX15-900 |
| 2. | Dimension | 6800mm/2000mm/1300mm |
| 3. | Wieght | 6500KGS |
| 4. | Motor Power | 5.5KW |
| 5. | Hydraulic Power | 1.5KW |
| 6. | Voltage | 380V/50HZ/3PH |
| 7. | Forming Steps | 14 steps /9 steps |
| 8. | Working Speed | 8-14m/min |
| 9. | Thickness | 0.3-0.6mm |
| 10. | Material Width | 1000mm |
| 11. | Effective Width | 840mm,900mm, |
Established in 2004, Xiamen Xinhonghua Machinery Co., Ltd which is load in nice island city of Xiamen is specialized in manufacturing roll forming machines with hydraulic systems and PLC computer controlling systems. Our company has advanced technologies and great experience in the R&D, manufacture, installation, testing and training.
Our company can supply a wide range of Al-Mg-Mn panel forming machines, standing seam roofing machines, C/Z shaped Auto full adjustment purline machines, tapered-shaped standing seam roofing machines, colored roof panel machines, glazed tile machines, shaft forming machines, rolling door machines, flattening machine with slitting and cutting device, floor decking machines, highway guardrail machines, auto adjustment curving machine and hydraulic bending machines.
We enjoy a good reputation with the enterprise spirit of "Innovation chases the development; Management earns benefit". We insist on the service philosophy of "Satisfying our customers' needs".
Our products sell well at home, and are exported to clients in the Philippines, Indonesia, India, Malaysia, Ameria, Dubai, Singapore, Brazil, Turkey, Canada, Africa, Tailand, Columbia, the Middle East and other countries and regions.
