Product Description
Product Description

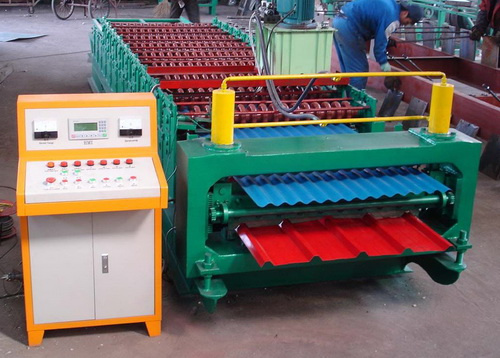

Double Layer Roll Forming Machine ZYYX26-200-1000 And ZYYX32-150-900
Double Layer Forming Machine
1) Machine with CE certificate
2) One machine for two profiles
Double Layer Forming Machine
Components for the Machine
Double layer roll forming machine consists of mechanical uncoiler, coil sheet guiding device, main roll forming system, cutting device, Hydraulic station, PLC control system and run out table.
Technical Parameters
Suitable material color steel sheet
Yield strength Q235 or 34Ksi
Thickness of material 0.4-0.7mm
Forming Speed about 15m/min (excluding in cutting time)
Power Requirement Main motor power: 5.5 Kw (Depend on final design)
Hydraulic station power: About 2.2 Kw (Depend on final design)
Mechanical decoiler Max. Capacity: 5000kgs
Control system Mitsubishi PLC and converter
Type of cutting after roll-formed and length-set cutting
Electric condition 380V/3Phase/ 50Hz
Machine Dimension about 18m× 1.8m× 1.6m (Depend on final design)
Total weight about 15000kg
Material of Main Equipment
1. Roller Material: High grade No. 45 forged steel, with digital-controlled procession, Plated with hard chrome with thickness of 0.05mm.
2. Active Shaft Material: High grade No. 45 carbon wrought steel, which can improve the integrated mechanic feature of the shaft
3. Electric Elements: PLC control panel, transducer imported from Mitsubishi of Japan. Other elements from famous suppliers in China
4. Cutter blade: Cr12 mould steel with quenched treatment.
