| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Forging Forming Method: |
Mold Forging |
Product Description

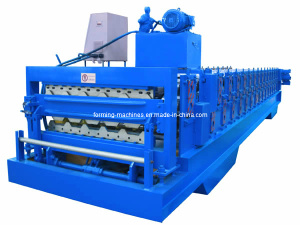

Tile Machine with 7.5kW Main Motor Power and PLC Controlling System
Consists: (We can customize machine according to your requirement)
Uncoiler and its base
Coil sheet guiding equipment
Film covered device
Roll forming system
Pressing equipment
Post-cutting equipment
Hydraulic station
Controlling system
Supporter table
Material: Colored and galvanized steel sheet at yield stress 33KSI
Thickness of coil sheet: 0.5 to 0.6mm
Coil width: 1, 000mm
Working speed: 3 to 4m/min (step distance at 380mm)
Power requirement:
Main motor power: 7.5kW
Hydraulic station power: 5.5kW
Maximum passive uncoiler capacity: 5, 000kg
Quantity of stands: 15 groups
Controlling system: PLC
Type of cutting: Roll-formed and length-set cutting
Voltage: 380V, 3-phase, 60Hz or at buyer's requirement
Machine dimensions: About 18, 500 x 1, 500 x 1, 400mm
Total weight: About 9, 500kg
Working flow:
Decoiling sheet
Sheet guiding
Film covering
Roll forming
Measuring length
Pressing
Cutting panel and panels to supporter
Botou Zhongteng Machinery factory supply all kinds of roll forming machine, our main production: colored steel roll forming machine, Gusset plate machinery, C/Z purlin forming machine, double decked roll forming machine, floor deck roll forming machine, glazed tile roll forming machine, ridge tile roll forming machine, Roof Panel Roll Forming Machine, shutter door roll forming machine, Cutting machine, Bending machine, etc. We have advanced technology and equipment, detection means is consummate, and developed the automatic intelligent production line for roll forming machine.
Our company has perfect after-sales service network, can provide full support to you, helping you get the most satisfactory equipment, and insure you get the device timely to solve all the problems in process. We always put the interests of customers in the first place, and put the concept through design to after-sales service, enables our products to help customers improve efficiency, reduce costs, enhance competitiveness, we will completely according to your requirements and needs to carry on the design and manufacturing, and give you the most ideal machine.
