| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Roll Forming Machine |
Product Description

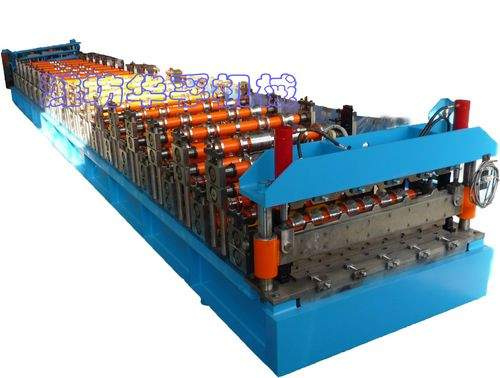

Double tile roll forming machine, glazed tile roll forming machine, Roof/Wall panel roll forming machine, tile forming machine
Technical parameter
Suitable material
Color steel sheet
Thickness of raw material
0.5_0.6mm
Yield strength of material
235Mpa
Working Speed
About 2000-3000mm/min
Step distance
Adjustable according to requirement (>=250mm)
Power Requirement
Main motor power:
5.5Kw (Depend on final design)
Hydraulic station power:
5.5Kw (Depend on final design)
Uncoiler's loading capacity
Max. Capacity: 5000kgs (can be increased to be 10T)
Controlling system
Mitsubishi PLC & converter
Machine's size
About 18m× 1.5m× 1.4m (Depend on final design)
Material of main equipment:
1. Roller material: High grade NO. 45 forged steel, plated hard chrome on the surface of roller with thickness 0.05mm.
2. Active shaft material: High grade NO. 45 carbon wrought steel at diameter 72mm.
3. Cutting blade: Cr12 mould steel with quenched treatment.
This type of sheet can be widely used in plant, house, storage and simple steel roof and wall. It has advantage of pretty appearance, durable using and so on.
Weifang Highfull Machinery Co., Ltd is located in Weifang City, the kite capital, Shandong Province, conveniently located near Qingdao City's sea and air port, Jiqing expressways and Jiaoji railways.
Rely on the good foundation of culture and machinery, as well as our fine product quality, perfect services, we win the market and make rapid progress.
We are a high-tech enterprise of producing the steel plate cold roll forming machine, mainly dealing with Mainwhile, we are able to produce and design the cold roll forming machine according to our customers' specific requirements. With our strong technical force, in the factory, there are more than 60 sets, such as milling machine, planing machine, grinding machine, drilling machine, planer type milling machine, heat-treated furnace and so on. We have 30 high-ranking technicians and engineers or so. The main products includes, roller press, roll bending, forming machine, lever device, slitting machine, color steel tile equipment, C/Z shaped steel equipment, steel structure equipment, colored sheet door equipment, color section equipment, security door equipment, security door frame equipment, square and round steel tube equipment, door frame section, auto car carriage plate equipment, motorized tricycles carriage plate equipment, electrocar carriage plate equipment, container equipment, car sections, stainless steel door equipment, fire door equipment, light steel keel equipment, garage door equipment, solar energy stand equipment, goods shelf section equipment, bridge bus duct equipment, high-speed guardrail equipment, and all kinds of roll mill, roller etc. Cold bending roll forming machine.
Our company pursues progress continuous on the way to technological innovation in recent years. We set up R&D(research and development)center in Shanghai in 2006. We have developed ultrasonic sections, eddy currents etc. Nondestructive testing equipment united with Shanghai Jiaotong University and Shanghai Ligong University etc. Research institutions. We cooperate with friends of home and abroad.
