| Prod Model: |
LSG 100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material Type: |
Steel Strip |
| Roller Material: |
No. 45 Steel |
| Guaranteed Quality: |
CE Certificate |
Product Description
A. Main technical parameter:
1. Suitable material: Thickness 0.5-0.6mm, Yield strength≤ 250MPa
2. Forming speed: 10_12M/min (Cut down time does not include)
3. Forming station: 24 stands
4. Main motor power: 7.5kw
5. Hydraulic motor power: 4kw
6. Roller material: No. 45 steel of high grade material and surface coating with chrome
7. Roller shaft material: No. 45 high grade material after treatment
8. Main roller dimension: 68mm
9. Hydraulic pressure: 10-12Mpa
10. Cutting type: Hydraulic motor drive, cutting after forming
11. Material of cutter: Cr12
12. Control system: PLC frequency control, length error of cutting ≤ 2mm.
B. Structure and components

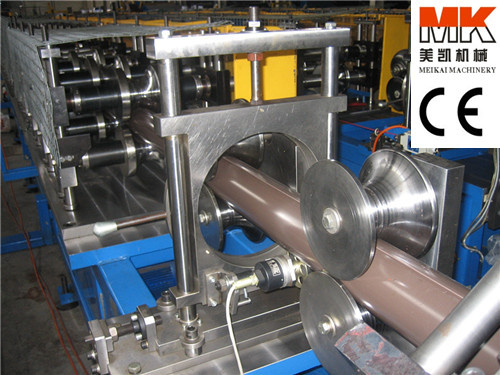

LSG 100 Down pipe roll forming machine compose of 3T manual feeding device, driving device, forming roller and main machine (including oriented platform), forming compaction device, forming cutting device, hydraulic system, electrical control system, output table and so on.
C. Flow chart
Decoiling (the color-coated steel is imported into the open Rack) --- feeding and leveling ( the color-coated steel is imported in main forming machine through oriented platform ) ----roll forming ----compaction after forming ---cutting after forming ---- run out table
D, Warranty, Year warranty
During the warranty period, maintain and change the spare parts for the customers for free (except for the instrument damage caused by human factors or natural disasters. ) And provide technical support for life-long
We make and design roll forming machine according to customer's request. Our machines have passed CE, Guaranteed quality.
