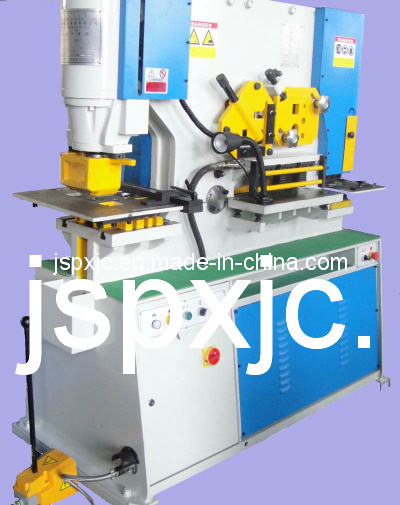

Dual Cylinder Hydraulic Steel Sheet Cutting Machine (Q35Y Series)

Dual Cylinder Hydraulic Steel Sheet Cutting Machine (Q35Y Series)
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Money Gram
Prod Model: Q35Y multifunctional punch/shear/bend cutting
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color Voltage: According to Customer's Request
Machine Type: Hydraulic Punch/Shear/Press Brake Ironworker
Certificate: ISO&CE
Oil Drum: Double Oil Drum
Power: Hydraulic Multifunction Ironworker
Processed Material: Carbon Steel, Stainless Steel, Alloy
Model: Q35y-16/20/25/30/35/40/45/50
Forging Forming Method: Free Forging

Product Description

Hydraulic iron worker punching/ shearing/ notching/ bending machine

Q35Y Multi-function steel sheet cutting machine:

Hydraulic ironworker machine Q35Y is combined punching, cutting, bending and shearing machine, as an all-in-one ironworker. It can cut, shear and punch all kinds of steel materials such as plate, square bar, angle, round bar, channel and so on. It has another special function, that is Q35Y series hydraulic ironworker can also bend(press brake) the plate below 500mm length. With this multifunction, this universal combined punch and shear machine is your first choice among the counterpart machine.

All the components are of the highest quality in their safety, function, capability and maintenance.

Optional Fittings For PUXIN Q35Y Machine:
1. ATOS ATOS hydraulic system
2. Automatic back gauge
3. ABB ABB motor
4. ATOS ATOS pump

Features:

1. Punching Station
Full range of universal punches and dies are available. Unique style of Q35Y hydraulic Iron worker allows for large angle iron punching and large channel punching.

Large viewing window on stripper swing away design for ease of operation. Large two piece gauging table with rulers and stop as standard equipment. Quick change coupling nut and sleeve for rapid replacement of change.

2. Round and Square bar shear has multiple holes for a variety of sizes. Adjustable holddown for clean square cutting. Optional Channel and Beam shears available.

3. Large heavy duty knobs
Precise square bar cutting
Large strong guarding for maximum safety
Mitering with large standard squaring arm

4. The angle iron shear has the ability to cut angle iron at 45 degrees both top and bottom leg. This gives the operator the ability to make a picture frame corner for perfect welds.

5. Diamond shaped blade for quality cuts and no material loss with minimal deformity. Forty five degree miter cut both top and bottom leg for a picture frame corner.

6. Notching Sstation
Unique design allows for unsurpassed cutting of angle and flat bar. Electrically interlocked safety guard for maximum operator safety. Ventilated guard for maximum operator visibility. Three guaging stops for precise positoning.

7. Three foot electronic back guage supplied as standard equipment. Fine adjustment allows for precision cuts. Fully protected electrical harness for safety and reliability. Large contact button for maximum productibity.

8. Flat Bar Shearing Station
Easily adjustable hold down with good operator visibility for accurate cutting. Large 15" squaring arm with inlaid scale as standard equipment.

Specially contoured anti-distortion blade for quality cuts. Lower blade has four usable edges. Allen head set screws allow for easy gapping of the machine. No shimming is required.
Technical Data

Model

Q35Y-16

Q35Y-20

Q35Y-25

Q35Y-30

Working pressure (kn)

550

750

1100

1400

Max. cutting thicknessmm

16

20

25

26

Max. cutting length(mm)

400

480

600

600

Tensile strength of sheet metal

(N/mm²)

≤450

≤450

≤450

≤450

Shear angle(deg)

8

8

8

8

Stroke of ram(mm)

80

80

80

80

stroke times(min)

8

8

8

8

Depth of throat(mm)

300

355

400

600

Max .Capacities(mm)

25×16

30×20

35×25

38×28

Main motor(KW)

4

5.5

7.5

11

Length of machine tool(mm)

1720

1920

2280

2680

Width of machine tool(mm)

790

790

960

1040

Height of machine tool(mm)

1880

1990

2200

2300

Weight of machine tool(kg)

1710

2200

4800

6200

PUNCHING  METRIC(mm)

Max. Capacities

25×16

30×20

35×25

38×26

Max. Stroke Length

80

80

80

80

Throat Depth Standard

300

355

400

600

Largest Hole(optional)
160 160 160 160

Working Height

1030

1084

1142

1209

SHEARING

Flat  Bar

250×16

330×20

330×25

355×30

Alternative

400×8

480×10

600×16

600×20

Angle Flange Trim

100×10

100×13

100×14

100×16

Blade Length

410

485

620

610

Working Height

890

894

851

897

ANGEL CUTTING

At 90°cut

125×12

140×14

160×14

180×16

At 45°Mitre

70×10

70×10

70×10

70×10

Working Height

1130

1139

1200

1220

SECTION CUTTING

Round / Square Bar

45/40

50

60/50

65/55

Channel / Beam

126×53

160×65

200×75

280×86

Tee

90×12

90×12

90×12

90×12

NOTCHING

Material Thickness

10

13

14

16

Width

57

57

57

57

Depth: Vee -Rect.

60-90

60-90

60-90

60-90

Angle Flange

100×10

100×13

100×14

100×16

Working Height

890

883

886

898

We are a hi-tech enterprise in Jingjiang. We are mainly specialized in the research and development of kinds of metal workers.

Products Include: Iron worker, hydraulic iron worker, electro-hydraulic synchronized CNC press brake, hydraulic punching, hydraulic press brake, bending machine, hydraulic shear, hydraulic shearing machine, hydraulic cutting machine, hydraulic swing beam shear, hydraulic guillotine shearing machine, autofeed hydraulic shear, hydraulic shear with pneumatic support device

Our ironworers, which have been sent to Australia, are all equipped with ATOS pump valve of Italy, and Electric's appliances. Before the installation, we will provide two solutions for customers' choices, respectively adopted different configurations of world brand products and Chinese famous brand products. We make sure the quality, and satisfy the clients with comprehensive after-sales service.

Jiangsu Puxin Machinery Manufacturing Co. Ltd is the production of various types of forging press machines and equipment professional firm, the company passed the ISO9001: 2000 quality system certificatian and export of electromechanical products through a national license certification and CE certification.

Company has first-class professional and technical personnel, strong technical skills, complete testing means. Our long-term accumulated experience and lessons to broad areas of advanced technology to constantly adjust product structure, to market the most sophisticated forging machinery. Selling products, a large number of exported to Europe, the Middle East and Southeast Asia, has long been Chinese and foreign custmers alike.

Each of the company manufacturing parts for each machine in a safe, functional, maintenance, and performance in line with the highest quality requirements, its design based on use of human and machine control based on the quality and reliability is our top priority. The company will adhere to the people-oriented, science as a precursor to new business ideas, science service, customers return to the company, and our aim is to"honesty, quality first. "with yhe company's products, you will have the strength and the future!
