| Prod Model: |
HIW ironworker |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color And Voltage: |
According to Customer's Request |
| Machine Type: |
Hydraulic Shearing and Punching Machine |
| Certificate: |
ISO&CE |
| Oil Drum: |
Single Cylinder |
| Power: |
Hydraulic Shearing Machine |
| Processed Material: |
Carbon Steel, Stainless Steel, Alloy |
| Model: |
Hiw-40, Hiw-45, Hiw-60 |
Product Description
Hydraulic ironworker/punching/shearing/notching/steelworker ironworker

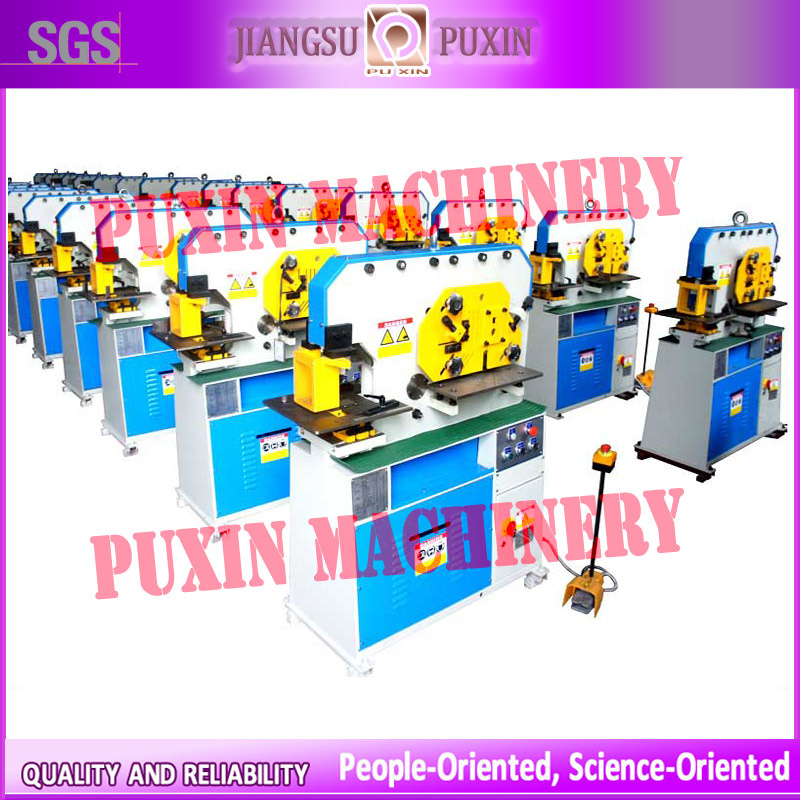

HIW Series One cylinder Hydraulic ironworker:
It's an ideal ironworker equipment for cutting angle, round, flat bar, punching, joist, as well as notching, channel, equipped with related stop device for cutting.
This kind of machine is the latest Iron Workers in our country, which adopts five-stage hydraulic transmission through repeated beam movement swing.
The whole machine is reasonable structured, light, low noise and easy to take. The tool adopts whole-structure compact designing, setting five-stage.
The fixing device can be adjusted by Helical Gear Transmission, simple and convenient.
|
Technical Data |
|
MODEL |
HIW-40 |
HIW-45 |
HIW-60 |
|
PUNCHING |
|
Rated Capacity |
40T |
45T |
60T |
|
Tensile strength of sheet metal(N/mm2) |
450 |
450 |
450 |
|
Max. Capacity(mm) |
20× 15 |
22× 15 |
28× 15 |
|
Diameter× Thickness(mm) |
38× 8 |
38× 8 |
38× 11 |
|
Stroke Length(mm) |
32 |
50 |
55 |
|
Speed-20mm travel(cycles/min) |
23 |
20 |
26 |
|
Throat Size(standard)(mm) |
175 |
175 |
220 |
|
Largest Hole(optional) |
57 |
110 |
110 |
|
Working Height(mm) |
1075 |
940 |
940 |
|
SHEARING |
|
Flat Bar-Max. thickness(mm) |
200× 13 |
200× 15 |
200× 20 |
|
Flat Bar-Max. width(mm) |
350× 6 |
300× 12 |
300× 15 |
|
Angle Iron Trim(mm) |
80× 10 |
80× 10 |
80× 10 |
|
Working Height(mm) |
1075 |
940 |
940 |
|
90° Cut(mm) |
80× 8 |
100× 10 |
127× 12 |
|
45° Mitre Cut(mm) |
50× 6 |
70× 6 |
80× 8 |
|
Working Height(mm) |
1210 |
1140 |
1140 |
|
SECTION CUTTING |
|
Round/Square Bar(mm) |
30/25 |
30/30 |
40/35 |
|
|
76× 38 |
80× 45 |
102× 51 |
|
Channel/Beam(optional)(mm) |
|
|
|
|
|
Tee(optional)(mm) |
38× 6 |
40× 7 |
76× 10 |
|
Working Height(mm) |
1160 |
1160 |
1160 |
|
NOTCHING |
|
Material Thickness(mm) |
-- |
8 |
10 |
|
Width(mm) |
-- |
35 |
42 |
|
|
-- |
60/75 |
60/100 |
|
Depth Vee/Rectangular(mm) |
|
|
|
|
|
Angle Flange(mm) |
-- |
80× 10 |
100× 10 |
|
Working Height(mm) |
|
940 |
940 |
|
TECHINICAL |
|
Motor |
3KW |
3KW |
4KW |
|
Net Weight/Gross Weight(Kg) |
570/640 |
1100/1200 |
1300/1450 |
|
Machine Dimension(cm) |
106× 55× 148 |
145× 59× 162 |
152× 59× 170 |
|
Packing Dimension(cm) |
122× 64× 159 |
159× 86× 182 |
177× 86× 186 |
|
OPTIONAL EQUIPMENT |
|
TUBE NOTCH |
|
Max. Outside Diameter(mm) |
40 |
60 |
|
|
BENDING |
|
Bar Bend Max. Capacity(mm) |
80× 10 |
100× 12 |
|
|
Sheet Bend Max. Capacity(mm) |
-- |
-- |
|
|
NOTE: Based on material strength of 450N/mm² tensile |
|
Design and specification, subject to change without notice. |
We are a hi-tech enterprise in Jingjiang. We are mainly specialized in the research and development of kinds of metal workers.
Products Include: Iron worker, hydraulic iron worker, electro-hydraulic synchronized CNC press brake, hydraulic punching, hydraulic press brake, bending machine, hydraulic shear, hydraulic shearing machine, hydraulic cutting machine, hydraulic swing beam shear, hydraulic guillotine shearing machine, autofeed hydraulic shear, hydraulic shear with pneumatic support device
Our ironworers, which have been sent to Australia, are all equipped with ATOS pump valve of Italy, and Electric's appliances. Before the installation, we will provide two solutions for customers' choices, respectively adopted different configurations of world brand products and Chinese famous brand products. We make sure the quality, and satisfy the clients with comprehensive after-sales service.
Jiangsu Puxin Machinery Manufacturing Co. Ltd is the production of various types of forging press machines and equipment professional firm, the company passed the ISO9001: 2000 quality system certificatian and export of electromechanical products through a national license certification and CE certification.
Company has first-class professional and technical personnel, strong technical skills, complete testing means. Our long-term accumulated experience and lessons to broad areas of advanced technology to constantly adjust product structure, to market the most sophisticated forging machinery. Selling products, a large number of exported to Europe, the Middle East and Southeast Asia, has long been Chinese and foreign custmers alike.
Each of the company manufacturing parts for each machine in a safe, functional, maintenance, and performance in line with the highest quality requirements, its design based on use of human and machine control based on the quality and reliability is our top priority. The company will adhere to the people-oriented, science as a precursor to new business ideas, science service, customers return to the company, and our aim is to"honesty, quality first. "with yhe company's products, you will have the strength and the future!
