| Price: | US $ 1000-1100/Ton |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 100/Piece |
| Pay Type: | L/C,T/T,D/P,Paypal |
| Prod Model: | Sa14-2 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |

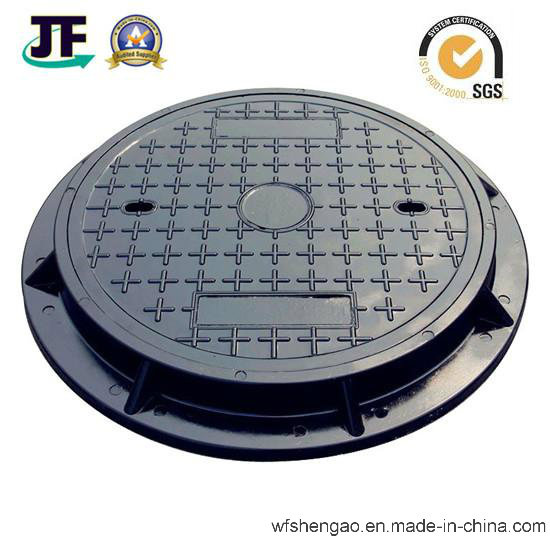

| Item: | Ductile Iron Sand Casting Manhole Covers |
| Raw Material: | Ductile Iron, Cast Iron, Qt500 |
| Size: | Dn100-1000mm |
| Techincs: | Sand Casting |
| Brand Name: | Shengao,OEM |
| Factory: | Over 15 Years'experience |
| Quality Control: | 100% Inspected |
| Advantages: | Within 20 Days After Receiving Last Confirm Info |
| Standard Or Nonstandard: | Nonstandard |
| Dimensions: | as Your Requirement |
| Type: | Clay Dry Sand |
2.Has advanced euipment and over 15 years experience.
3.Price:Competetive price , Precision made.Experience & Reasonable QC that you can reply on.
4.Process:Precision made.Experience & Reasonable QC that you can reply on.
5.Adequate supply capacity.Punctual delivery time.

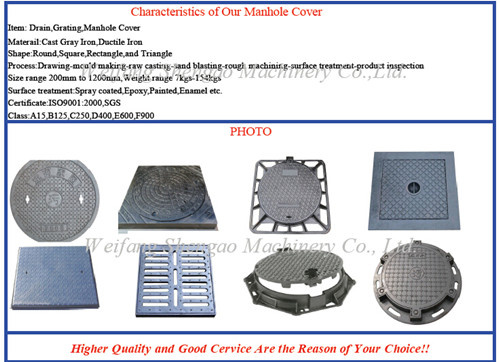

Characteristics of our manhole cover:
1. Material: cast gray iron, ductile iron.
2. Shape: round, square, rectangle and triangle.
3. Diameter: from 200mm to 1200mm.
4. Weight: from 7kg to 154kg or according to customers\' requirment
5. Packing: in wooden pallet with plastic layer
6. Annual output: 10,000 tons
7. Coating: black bitumen or Coating as per customers\' requirement
8. Use :municipal engineering, Traffic, pavement ,electronics,telecom, cable, petroleum, chemical industry, or drainage system and industrial facilities of valve well.
1. Advantage of our Manhole Covers
1) Can supply all kinds of load class Product such as A15/B125/C250/D400/E600/F900
2) Against theft and safety, double sealed, watertight type
3)material No. GGC50(DIN1693-73),QT500-7(GB/T1348-1988), 80-55-06(ASTM A536), FCD500(JISG 5502-2001),500/7(BS2789:1985).
4)Free charge of design.
5) 3 day pay for ready if the request in storck.
2. Detailed information of manhole cover
1) Various manhole cover made by GX Foundry strictly conform to standard and free from sand holes, blowholes,distortion or any other defects
2)Processes:
a) Automatic machine lines
b) Moulding boards
c) Green sand with hand moulding
3)Guarantee: GX Foundry will replace any heavy duty castings that have been properly installed and broken in normal use,free of charge after receipt of the broken castings.
Ductile Iron Sand Casting Manhole Covers in Road Sanitary
Products
Company Profile:
We mainly undertake the casting parts,machined parts and other products.Our Import and Export Department have many years experiences of foreign trade,products are mainly exported to the United States,Denmark,Italy,Russia,Australia etc.

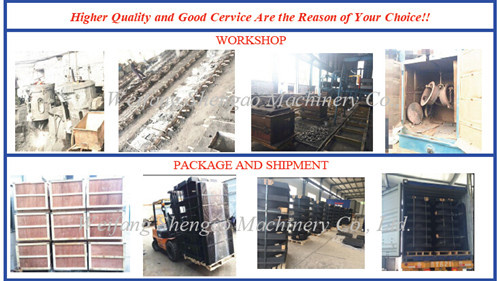

Casting Parts Workshop:
| name | Ductile Iron Sand Casting Manhole Covers in Road Sanitary |
| material | ductile iron GGG50/7, gray iron |
| standard | EN124/1433/1563 |
| class | A15,B125,C250,D400,E600,F900 |
| shape | Round |
| Size | 600*600,840*840, 850*850 or as per customers' drawing |
| paint | bituminous black |
| advantage | Non-slip and safe, easy installation, easy to clean, excellent anti-pressure and attractive appearance |
| molding | DISA Line |
| process | Drawing-mould making-raw casting-sand blasting-rough machining-surface treatment-product inspection |
| application | footway, pedestrians, car parks, aircraft pavements |
| certificate | BSI, ISO9001:2000 |
| Strict quality control | Tensile strength: 500Mpa Yield stress : 320Mpa Elongation rate : 7% Hardness: HBS170-230 |
| Main products | Manhole covers and grates, Furnace, bases, Machinery parts, cookers, Valve bodies, pipe fittings, Auto parts |
| other information | we can cast and process any type of iron casting products according to customers' drawing or samples |
Size( customized available for other dimensions)
| Order No. | Inner dia | grating | Outer dia | Height | Weight(kg) | Pressure(KN) |
| F0536-1 | 252 x 252 | 326 x 326 | 360 x 360 | 36 | 13.5 | C250 |
| F0536-2 | 350 x 350 | 400 x 400 | 470 x 470 | 40 | 20 | C250 |
| F0536-3 | 450 x 450 | 500 x 500 | 580 x 580 | 50 | 32 | C250 |
| F0536-4 | 550 x 550 | 600 x 600 | 680 x 680 | 50 | 39 | C250 |
| F0536-5 | 350 x 350 | 400 x 400 | 500 x 500 | 100 | 36.2 | D400 |
| F0536-6 | 450 x 450 | 500 x 500 | 600 x 600 | 100 | 49 | D400 |
1.Q:Why choose Shengao product?
A:We shengao have our own plant-- Weifang Shengao machinery Co.,Ltd, therefore, we can surely promise the quality of every product and provide you comparable price.
2.Q:Do you provide OEM Service?
A:Yes, we provide OEM Service.
3.Q:Do you provide customized manhole covers?
A:Yes.Customers give us drawings and specifications, and we will manufact accordingly.
4.Q:What is your payment term?
A:We provide kinds of payment terms such as L/C, T/T, Paypal, Escrow, etc.
Quality First,Pric Best,Service Foremost !
We assure you of our best services at all times !
