| Prod Model: |
GQ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Industrial |
| Material Quality: |
304/316stainless Steel |
| Voltage: |
Design for Different Country |
| Speed: |
High Rotation Speed |
| Type: |
Centrifuge |
| Condition: |
New |
| Object: |
Liquid-Solid |
Product Description
The bacteria body centrifuge separator has strong capability for bacteria separation from the yield.

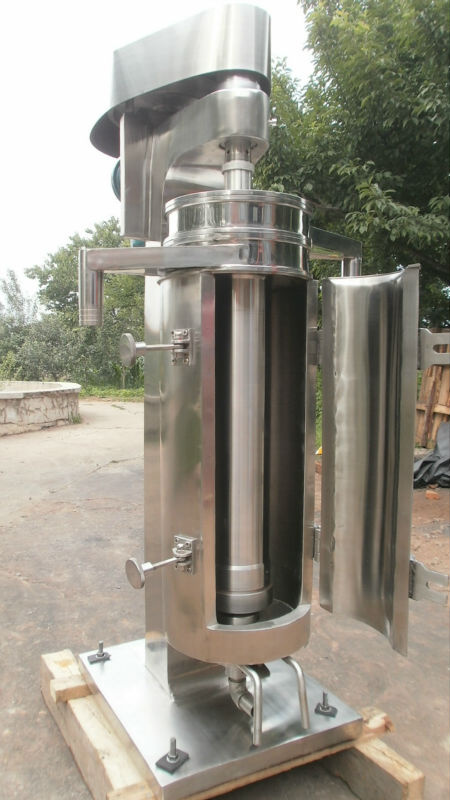

GQ Tubular Bowl clarification Centrifuge is mainly used for liquid-solid separation. It is a high-speed centrifuge with strong separating capacity. The bowl of the centrifuge rotates around its axis and forms a strong centrifugal force, the centrifugal force separates suspension into liquid and solid.
The suspension is fed through the bottom of the machine and is introduced into the bowl which has one outlet at the top. The clarified liquid is removed from the top outlet and leaving the solids deposit on the bowl's wall. The accumulated solids are recovered manually from the bowl when the centrifuge is shut down.
The bacteria body centrifuge separator has strong capability in separation. The parts contact with the material is made of stainless. The machine body can be stainless or iron casting with painting according to the requirement of the customer and the material to be separated.
Throughput capacity: 200L/h - 3000L/h.
Model | GQ80
| GQ105 | GQ125 | GQ150 |
Drum | ID(mm) | 75 | 105 | 125 | 147 |
| Height (mm) | 450 | 730 | 730 | 730 |
| Sedimentation volume(L) | 2.67 | 6 | 8 | 10 |
| Max speed(r/min) | 21000 | 19000 | 17500 | 16000 |
| Max separation factor | 22500 | 21000 | 21000 | 21000 |
| Inlet nozzle diameter (mm) | 3/4/6 | 4/6/8 | 6/8/10 | 8/10/12 |
| Material inlet pressure (Mpa) | ≥0.05 |
| Capacity (water capacity)L/H | 260 | 1600 | 2200 | 3200 |
| Actually Capacity L/H(according to the solid content) | 50-80 | 300-500 | 500-700 | 800-1000 |
| Motor model | 3 phase two pole motor |
| Motor power (kw) | 1.5 | 2.2 | 3 | 3 |
| Machine dimension (mm) | 500*700*1300 | 600*1000*1600 | 600*1000*1600 | 600*1000*1600 |
| Machine weight (kg) | 300 | 460 | 490 | 510 |
