| Prod Model: |
GQ/GF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material Quality: |
304/316stainless Steel |
| Voltage: |
Design for Different Country |
| Type: |
Separating Plant |
| Condition: |
New |
| Object: |
Liquid-Solid or Liquid-Liquid-Solid |
Product Description

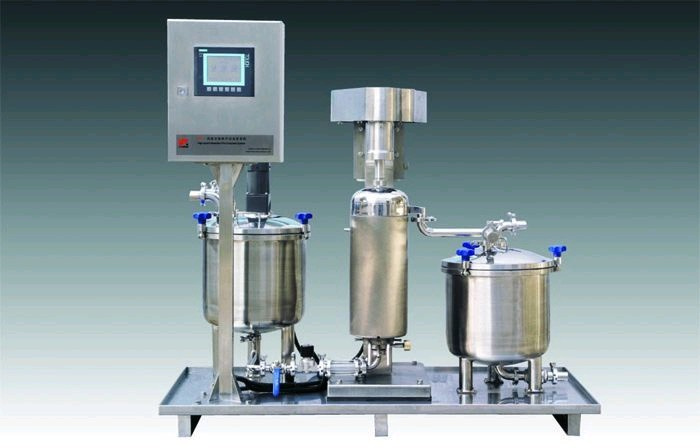

High Speed Vertical Centrifuge
High speed vertical tubular bowl centrifuge, generating centrifugal force in excess of 14000 times the force of gravity. This centrifuge used for continuous separation of two immiscible liquids having different specific gravities, and for clarification of liquid.
Application:
All chemical & food processing industries
Capacity 1250 liters per hour
This is a high-speed industrial centrifuge filter that is primarily used for separating two liquids and is a culmination of the latest technology with perfect designing.
Standard material
The high speed centrifuge has a prominent frame and a high-speed tubular bowl of CS/ss 304/ss 316 and is made of centrifugal casting.
Description
A slow acceleration special motor and starter operates this machine. The slurry is fed through the bottom of the bowl and the separation takes place inside the bowl by centrifugal force created by high speed. It creates separate circle of layers and comes out continuously through the bowl top and further separate discharges through covers.
Process requirements
The requirement or purpose of this device is to separate two liquids that are having different specific gravities. An automatic system is preferred with duplex separators.
Advantages
This item has left its impression globally, for its fine ability to separate liquids without spillage. It is thoroughly monitored during every stage of its inception and boasts of the following advantages: -
Increased daily production.
Highly economical operational costs.
No recurring expenses.
Zero spillage due to close and compact operations.
Easy to apply and user friendly.
Item
Model
Item | GQ75
| GQ105 | GQ125 | GQ150 |
Drum | ID(mm) | 75 | 105 | 125 | 147 |
| Height (mm) | 450 | 730 | 730 | 730 |
| Sedimentation volume(L) | 2.67 | 6 | 8 | 10 |
| Max speed(r/min) | 21000 | 19000 | 17500 | 16000 |
| Max separation factor | 22500 | 21000 | 21000 | 21000 |
| Inlet nozzle diameter (mm) | 3/4/6 | 4/6/8 | 6/8/10 | 8/10/12 |
| Material inlet pressure (Mpa) | ≥0.05 |
| Capacity (water capacity)L/H | 260 | 1600 | 2200 | 3200 |
| Actually Capacity L/H(according to the solid content) | 50-80 | 300-500 | 500-700 | 800-1000 |
| Motor model | 3 phase two pole motor |
| Motor power (kw) | 1.5 | 2.2 | 3 | 3 |
| Machine dimension (mm) | 500*700*1300 | 600*1000*1600 | 600*1000*1600 | 600*1000*1600 |
| Machine weight (kg) | 300 | 460 | 490 | 510 |
Liaoyang Hongji Machinery Co., Ltd. is specialized in manufacturing pharmaceutical machinery, especially professional in Separator and Centrifuge technology and manufacturing. The company possesses rich technologies, advanced production facilities and perfect test measurements and has developed many high-tech products. It has got the quality certification of ISO9001: 2000. Because of the advanced technology and reliable quality, the performance of the products has reached the advanced international level of 21st century. The company has won the support and trust from the customers due to its good reputation, reliable quality and first-class after-sale service.
Thus the products are sold all over China. Furthermore, they have been exported to many countries in Eurasia. The company's main products are as follows: Tubular centrifuges, Cup type precipitation centrifuges, 3-point setting centrifuges, 3-point filtering centrifuges and various centrifugal equipment, among which the tubular centrifuges are the "first" excellent and superior products. The machine can meet the requirements of GMP certification.
And centrifugal equipment of various materials can be specially made for different users. We are wholehearted to create brilliant future together with the friends at home and abroad!
