Dzg Conventional Pipe Rotator Pipe Welding Rotator

Prod Model:	DZG
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Welding Turning Rolls
Structure:	Platform
Rotaion Speed:	0.1-1rpm
Max Eccentricity Distance:	100mm
Tilting Angle:	0-90°
Welding Turning Rolls Type:	Self-Adjusting
Voltage:	110~575V
Color:	Customer Requirement
Optional:	Foot Switch
Delivery:	Timely

Product Description

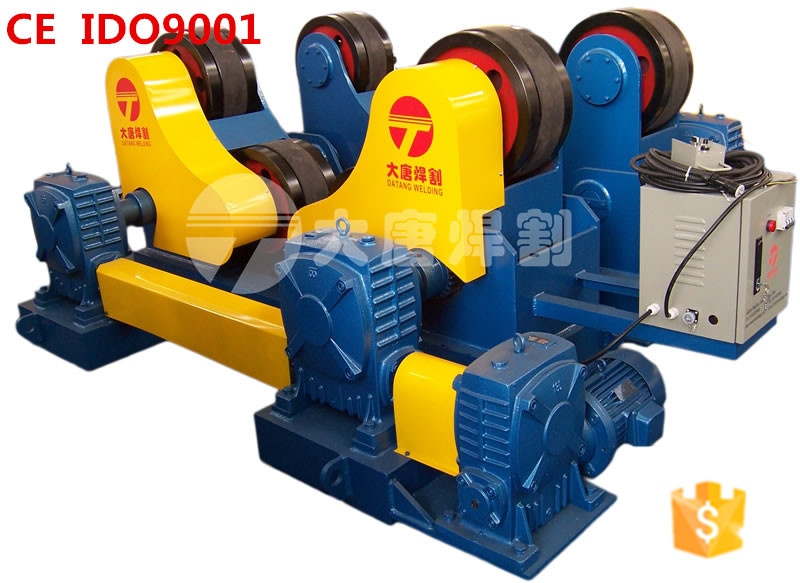

The Welding Rotator is mainly used for the seam welding of the metallic cylinder / tank. It is the necessary machine to manufacture the pressure vessel and pipe.

Equipment consistence:
1 set powered tank rotator and 1 set idle tank rotator and electrical control system.
L Powered tank rotator and idle tank rotator has the welded structure pedestal, which is frame structure and get rid of the stress after welding. It has the character of large loading capability and long time using life. At the same time, two roller holes on the pedestal is machined in one time, which ensures the concentric of both hole.
L Two clamp racks are installed on the tank rotator, it has two rollers, which will touch the workpiece well when the workpiece is put on the roller and the clamp rack will wave around the fixed shaft, so that the roller will suit for the different diameter workpiece and ensure the workpiece cover angle during the range of 45° To 110° .
L The roller is combined by rubber and metallic wheels, the metallic wheel adopts steel forging part, which is quenched on the roller surface with high hardness, the rubber wheel has the character as anti-press, anti-abrading and long time using life.
L The ruducer adopts worm gear and gear wheel couple reducing part, which has the character as resonable structure, steady runing, small cubage, large torque and lower noise, etc.
L The powered motor is protected by the electric components, the veriable frenquency speed adjusting, steady and reliable capability.
L All outsourcing parts are from the country professor manufacturers and ensure the quality and capability.

Type		DZG-5	DZG-10	DZG-20	DZG-40	DZG-60	DZG-80	DZG-100
Payload  (T)		5	10	20	40	60	80	100
Suitable size of job(mm)	Minφ	250	320	500	600	750	850	1000
	Maxφ	2300	2800	3500	4200	4800	5000	5500
Roller Specification(mm)	Rubber wheel Diameter(mm)	250	300	350	400	450	500	500
	Rubber wheel Width(mm)	100	120	120	120	120	120	120
	Metal wheel Diameter (mm)	240	290	340	390	440	490	490
	Metal wheel Width (mm)	20	25	30	40	50	60	80
Roller speed  m/h		6-60	6-60	6-60	6-60	6-60	6-60	6-60
Power of motor (KW)		0.75	1.1	1.5	3	4	4	5.5
Speed adjusting way		VFD

FAQ
Customer:    Can your machine or other products be customized?
we:    Yes,we are an professional manufacturer who specializes in welding equipment about 15 years old,we have a strong design team ,so any conventional products can be customized
Customer:    What about the transportion?
we:    Usually we take seaway ,cause its more convenient and cheaper for big machine,of course ,if it is allowed ,we also can take train ,its according to real condition.
Customer:  What about the after-sale service?
we:    We provide 12 months quality warranty after dispatch, and some easy abrasion spares of equipment for free. We also provide a long-term free technical advisory services and     technical  consults service. We can also provide installation and training for value.
Customer:   When we receive your machine ,is there any other Accessories we will get?
We:   Yes,some easy abrasion spare parts will be provided free in case when some small problems happen
