Product Description

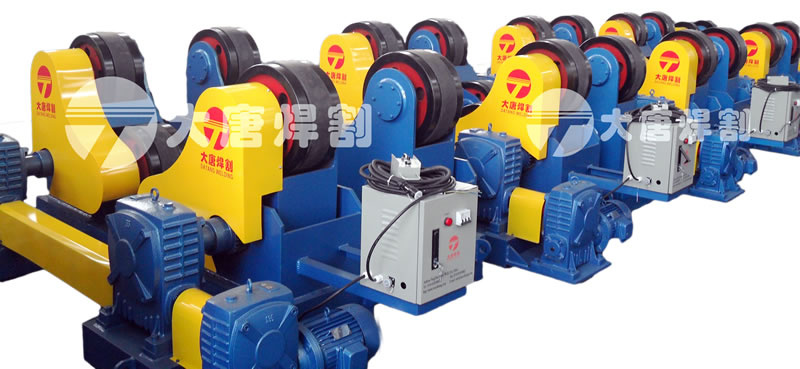

DZG type self -aligned welding rotator (turning roll) is designed on the base of welding requirements of pressure vessels, and absorbs advantage of similar products both from domestic and international market. The rotation of vessel is carried out by friction of Power unit and vessel. This kind welding rotator attribute a lot in the round and longitudinal welding of metallic cylinder (tank, pipe). HGZ welding rotator adjusts roller distance automatically, no need to do manual adjustment. Rotators are made of rubber, steel or PU, it is all on customers' decisions. Advanced techniques, sound quality and convenient operation guarantee customers' satisfaction.
Equipment consistence:
1 set powered tank rotator and 1 set idle tank rotator and electrical control system.
L Powered tank rotator and idle tank rotator has the welded structure pedestal, which is frame structure and get rid of the stress after welding. It has the character of large loading capability and long time using life. At the same time, two roller holes on the pedestal is machined in one time, which ensures the concentric of both hole.
L Two clamp racks are installed on the tank rotator, it has two rollers, which will touch the workpiece well when the workpiece is put on the roller and the clamp rack will wave around the fixed shaft, so that the roller will suit for the different diameter workpiece and ensure the workpiece cover angle during the range of 45° To 110° .
L The roller is combined by rubber and metallic wheels, the metallic wheel adopts steel forging part, which is quenched on the roller surface with high hardness, the rubber wheel has the character as anti-press, anti-abrading and long time using life.
L The ruducer adopts worm gear and gear wheel couple reducing part, which has the character as resonable structure, steady runing, small cubage, large torque and lower noise, etc.
L The powered motor is protected by the electric components, the veriable frenquency speed adjusting, steady and reliable capability.
L All outsourcing parts are from the country professor manufacturers and ensure the quality and capability.
|
|
Parameter |
|
|
|
Max Loading |
50000KG |
|
|
More than D3 loading |
50000KG |
|
D3 |
|
1440MM |
|
|
Less than D3 loading |
37500KG |
|
|
Working range |
d |
Φ 600MM |
|
D |
Φ 4200MM |
|
Roller Size |
Rubber Roller |
D1 |
400MM |
|
W3 |
120MM |
|
Metallic Roller |
D2 |
394MM |
|
W4 |
40MM |
|
|
Linear speed |
6-60 m/h |
|
|
Speed adjusting way |
VFD speed control |
|
|
Motor power |
3kw |
|
|
Voltage |
380V 3-phase power supply 50Hz in China ( May custom-made) |
|
Size |
Powered |
L1 |
2520MM |
|
W1 |
980MM |
|
Idler |
L2 |
2170MM |
|
W2 |
560MM |
|
H |
1000MM |
|
|
Roller span A |
1600MM |
|
|
Machine weight |
3000KG |
|
|
|
|
|
|
Safety |
|
|
|
All gear drives are fully covered to prevent accidental catching of cloths or fingers. |
|
NOTE |
Above are the standard parameter also we can design according to the customer requirement |
