Product Description

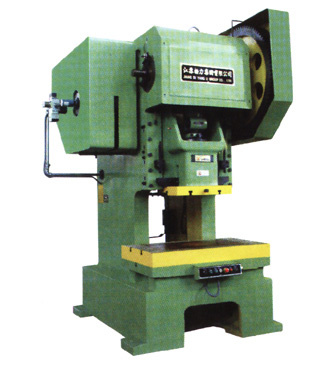

JE21 series open back press with fixed bed, using the structure of crankshaft placed horizontally, has the features of compact structure and beautiful contour. Using pneumatic friction clutch and brake, it has the features of stable combination, agile action and low noise level. With safe double-valve for control, it has the features of safe stable combination and reliability.
| JE21-25 | JE21-40 | JE21-63 | JE21-80 | JE21-100 | JE21-125 |
Nominal force | KN | 250 | 400 | 630 | 800 | 1000 | 1250 |
Stroke under nominal force | mm | 2.5 | 4 | 4 | 5 | 6 | 6 |
Slide block stroke | mm | 60 | 100 | 120 | 130 | 140 | 140 |
Number of stroke | min -1 | 100 | 70 | 60 | 53 | 40 | 40 |
Max die set height | mm | 180 | 220 | 300 | 350 | 320 | 320 |
Die set height adjustment | mm | 70 | 80 | 80 | 100 | 100 | 100 |
Distance from slide block centre to the frame | mm | 210 | 250 | 300 | 300 | 380 | 380 |
Worktable dimensions(W*L) | mm | 400×600 | 480×710 | 570×760 | 580×860 | 710×1100 | 720×1200 |
Dimensions of worktable hole | mm | 120 | 180 | 180 | 180 | 220 | 220 |
Thickness of bolster | mm | 70 | 80 | 90 | 100 | 120 | 120 |
Hole dimensions in bde(Diameter*F.B*L.R) | mm | 260×330 | 220×220 | 220×250 | 220×260 | 260×290 | 320×250×420 |
Dimensions of slide block bottom surface(W*L) | mm | 210×250 | 270×320 | 280×320 | 280×380 | 420×560 | 420×560 |
Size of the handle hole(Diameter*Depth) | mm | 40×70 | 50×70 | 50×80 | 60×75 | 60×80 | 60×80 |
Distance between columns of body | mm | 330 | 410 | 470 | 450 | 630 | 580 |
Motor | Type | KW | Y100L 2 -4 | Y132M 1 -6 | Y132M 2 -6 | Y160M-6 | Y160M-6 | Y160L-6 |
Power | 3 | 4 | 5.5 | 7.5 | 7.5 | 11 |
Xuzhou L&B Foreign Trade Co., Ltd is the export company of Xuzhou L&B Machine Tool Co., Ltd, a professional manufacturer and exporter specialized in various kinds of metal working machinery and relative equipments since 2000, our products include: Mechanical Press, Hydraulic Press, Shearing Machine, Bending Machine, Slitting Line, Cut to Length Line, Metal Moulds etc.
In the past 13 years, L&B machines have been exported to dozens of countries and regions all over the world, we have built long-term business relations with some well-known enterprises and accumulate good reputation in the international market, the annual gross sales has already more than twenty million US dollars every year. Some of our machines have CE or ISO9001 certificate, which can meet the safety standard for some countries.
We are ready to cooperate with customers according to our good experience and welcome to visit our company at any time, it is our great pleasure to supply good machinery with best price and sincere service.
