| Prod Model: |

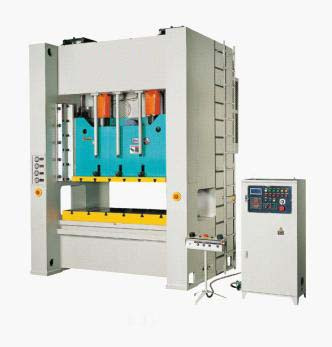

JM36/JMD36 Series |
Product Description
Steel plate welded framework structured machine body with four masts to ensure the high strength of the machine body Dual crankshaft in reverse rotation, completely eliminating side force Composite wet pneumatic clutch; Imported dry-type friction clutch optional hydraulic overload protection device, imported pneumatic pump, imported sealing ring Steel plate welded sliding block Four-corner, eight-side precision long guide rail Electrical die adjustment, digital display Raising-up style balance cylinder, imported sealing ring Duplex electromagnetic valve imported from Japan Three interlinked pieces for air source imported from abroad PLC of international brand name imported from abroad Buttons, indicators. AC contacts, air switches and other control devices imported from abroad Imported electronic camshaft, intelligent upper dead point stop function Series JM36 equipped with multi-connecting rod structure, making it more fitted to superficial stretch process.
|
|
JM36-160 |
JM36-200 |
JM36-250 |
JM36-315 |
JM36-400 |
JM36-500 |
|
JMD36-160 |
JMD36-200 |
JMD36-250 |
JMD36-315 |
|
Nominal force |
KN |
1600 |
2000 |
2500 |
3150 |
4000 |
5000 |
|
Stroke under nominal force |
mm |
6 |
6 |
8 |
8 |
10 |
10 |
|
Slide block stroke |
mm |
160 |
180 |
200 |
200 |
200 |
200 |
|
Number of stroke |
Fixed |
min -1 |
40 |
35 |
30 |
30 |
25 |
20 |
|
Variable |
35-50 |
30-40 |
25-35 |
20-35 |
20-30 |
/ |
|
Max die set height |
mm |
350 |
450 |
500 |
550 |
600 |
650 |
|
Die set height adjustment |
mm |
110 |
110 |
120 |
120 |
120 |
120 |
|
Worktable dimensions(W*L) |
mm |
740×1050 |
760×1130 |
800×200 |
850×1250 |
900×1350 |
1000×1500 |
|
Thickness of bolster |
mm |
150 |
160 |
170 |
170 |
180 |
190 |
|
Dimensions of side block bottom surface(W*L) |
mm |
650×800 |
650×850 |
700×900 |
750×950 |
800×1050 |
900×1200 |
|
Size of the handle hole(Diameter*Depth) |
mm |
65×90 |
65×90 |
70×90 |
70×90 |
80×90 |
80×90 |
|
Distance between columns of body |
mm |
1150 |
1200 |
1320 |
1370 |
1550 |
1700 |
|
Main motor power |
KW |
15 |
18.5 |
22 |
30 |
37 |
45 |
