| Prod Model: |
1500*5700, 1830*7000, 2200*7000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cement Mill Diameter: |
1.5-3.2m |
| Cement Mill Installation: |
Engineer Guide |
| Cement Mill Drawing: |
Supply |
| Price: |
Negotiate |
| Liner Material: |
Zgmn13 |
| Cement Mill Type: |
Dry |
| Warranty: |
One Year |
| Cylinder Material: |
Q235 |
| Colour: |
as Request |
| After Sale Service: |
Lifetime |
| Type: |
Ball Mill |
| Motor Type: |
AC Motor |
| Condition: |
New |
| Motor Power: |
According to Models |
| Application: |
Cement Plant |
| Materials: |
Cement,Clinker |
Product Description

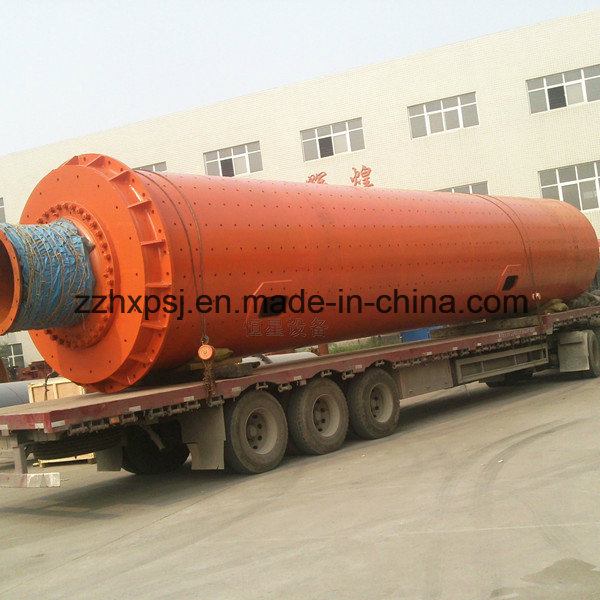

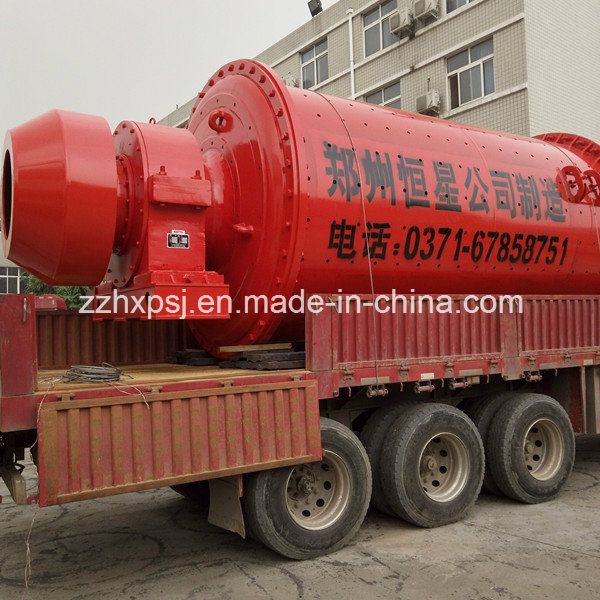

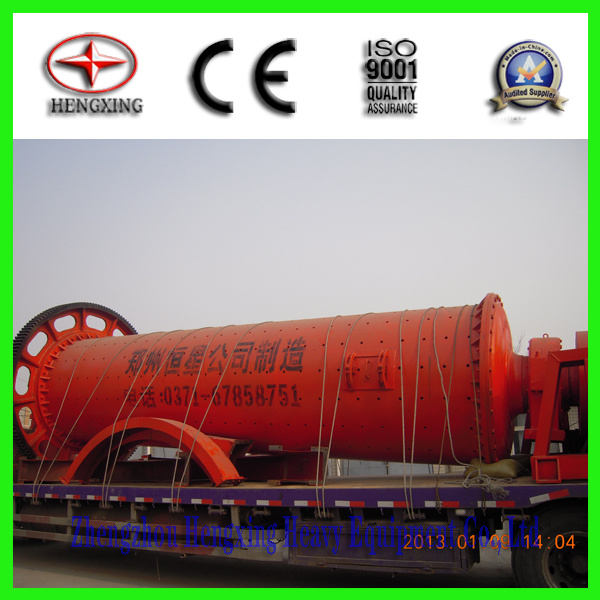

Edge Driving Cement Mill/Cement Clinker Ball Mill:High-efficiency cement mill is mainly used in grinding raw materials and final products in cement plant. And it is also suitable for grinding various ores and other materials in metallurgy, chemical, and power industry, etc. In our company,this machine has increased the productivity greatly, and the specific surface area is large, it is a new energy-saving grinding equipment, which has realized high capacity and super fine. Compared to internationally stipulated ball mill with same specifications, under the other situation of the same parameters, the output per machine hour has increased by 20%, and the power consumption per unit product has decreased by 10-15%. For open-circuit grinding, the specific surface area of cement can reach above 320square meters/kg. Besides, the performance of this machine has reached international advanced level, and it is suitable for close-circuit grinding, together with separator.
Cement Ball mill strucuture:
Cement Ball mill is made up of feedisng part, discharging part, gyre part, transmission part, (decelerator, small transmission gear, motor, electrical control) and so on.

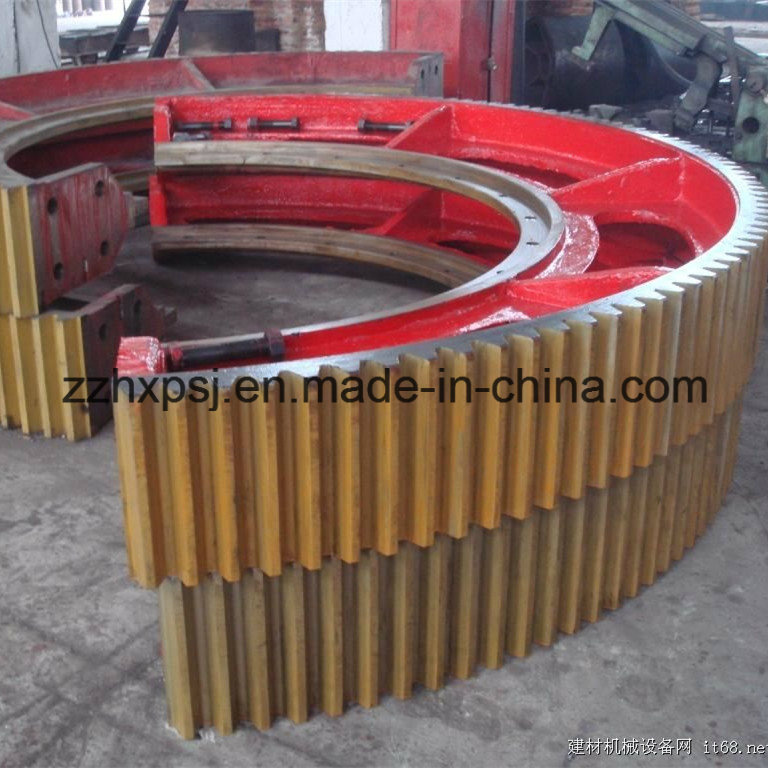

The hollow axis adopts the cast steel and the lining can replace, the rotating big gear processes in the way of casting rolling gear. The barrel body is wearable well and bears wearable scaleboard. This machine run steadily and works reliably.
Cement Ball mill Working Principle:
The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.
Cement Mill Technical Parameters:| Specification (D×L) | Rotary speed
(r/min) | Feed size(mm) | capacity (t/h) | Loading capacity of grinding medium
(t) | Main motor | Main reducer | weight
(t) |
| Model | Power (kw) | Rotary speed (r.p.m) | Model | Speed ratio |
| φ2.2×11 | 20.91 | ≤25 | 15~17 | 50 | TR1512-8 | 570 | 740 | Zd80 | 5.6 | 92 |
| φ2.4×8 | 20.91 | ≤25 | 14~18 | 39.5~42 | TRQ1512-8 | 570 | 740 | Zd80-9 | 5 | 76.4 |
| φ2.4×9 | 20.91 | ≤25 | closed 23~25 | 50 | TR1512-8 | 570 | 740 | Zd80-9 | 5 | 91 |
| φ2.4×10 | 20.91 | ≤25 | 16~22 | 50 | TR1512-8 | 570 | 740 | Zd80-9 | 5 | 111 |
| φ2.4×11 | 21 | ≤25 | open 19~24
closed 22~28 | 6265 | YR710-8/1180 | 710 | 740 | JDX630 | 5.6 | 125 |
| φ2.4×12 | 21 | ≤25 | open18~20
closed21~23 | 6365 | YR800-8/1180 | 800 | 740 | MBY710 | 6.3 | 127 |
| φ2.4×13 | 21 | ≤25 | open21~22
closed24~26 | 6668 | YR800-8/1180 | 800 | 740 | MBY710 | 6.3 | 131 |
| φ2.6×10 | 20.6 | ≤25 | 21~24 | 64 | YR800-8/1180 | 800 | 740 | JDX710 | 6.3 | 140 |
| φ2.6×13 | 20.6 | ≤25 | 28~31 | 81 | YR1000-8/1180 | 1000 | 740 | JDX800 | 6.3 | 158 |
| φ3.0×9 | 19.13 | ≤25 | 40~45 | 85 | YR1000-8/1180 | 1000 | 740 | MBY800 | 7.1 | 148 |
| φ3×11 | 18.92 | ≤25 | 44~47 | 95 | YR1250-8/1430 | 1250 | 740 | JDX900 | 7.1 | 177 |
| φ3×12 | 18.92 | ≤25 | 48~52 | 103 | YR1250-8/1430 | 1250 | 740 | JDX900 | 7.1 | 182 |
| φ3×13 | 18.92 | ≤25 | 39~45 | 116max | YR1400-8/1430 | 1400 | 740 | JDX900 | 7.1 | 200.7 |
Contact:
Ms Sara Pang
Mobile phone : 0086137 8347 1727
Zhengzhou Hengxing Heavy Equipment Co., Ltd. is a joint stock corporation integrating research and manufacture sale with the targt at the large and medium sized series of heavy equipment for mine machinery, wall materies, formed coal, metallurgy and etc. The company is located at No. 8 Hongye Road, West Hehuan Street, High-Tech Development Zone, Zhengzhou, China.
Since establishment, our company has gathered a group of scientific elites with modernized management system and accurate production as well as independent innovation. Furthermore, our company has realized the computer informationization of management, production, and the CAD and CAPP of production research and process design within our company. Our company is equipped with powerful machines and equipment for machining, forging, rivet welding, and carburization heat processing. At the same time the company has established long-term cooperative relationships with many research institutes from at home and abroad. With advanced technology, we can process and develop new products and promote new technology.
We adhere to the guideline of "survive on high quality, develop by good credit" on the basis of market development and customer service. We have provided better social and economic benefits and attained ISO9001-2000 Certificate. Our products sell very well at home and abroad, enjoying very high appraisement from users.
We would like to offer the most advanced technology, reliable quality, and preferential prices centering on clients. Improving customer satisfaction, we sincerely hope to co-operate with new and old customers, jointly creating the new glorious century.
