Product Description

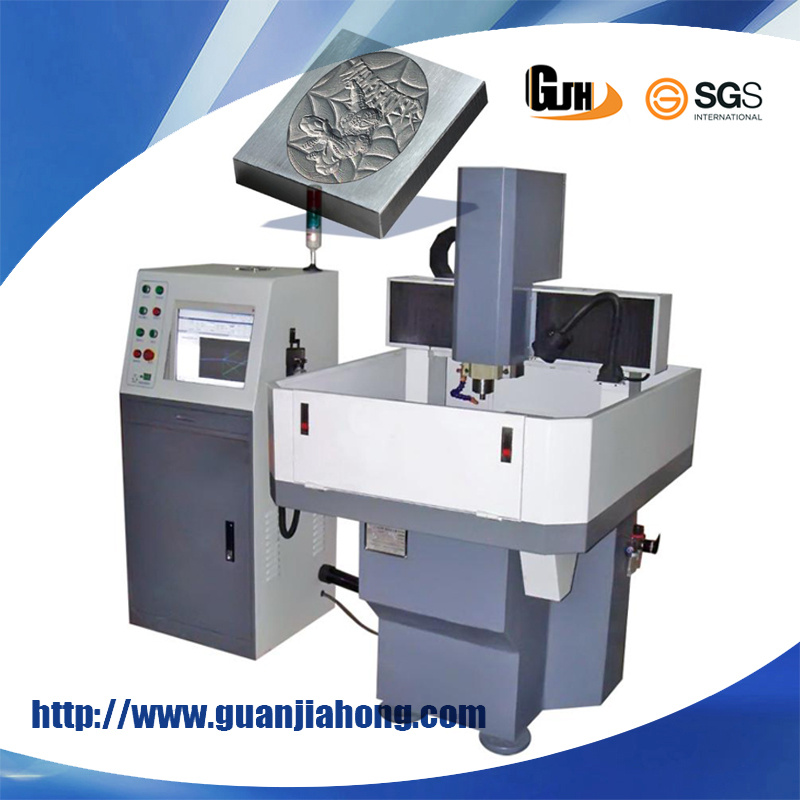

ESTUN SERVO, OVERALL CARSTINGS GANTRY & TABLE, HQD SPINDLE, PMI SCREW METAL MOLD CNC ROUTER
from PROFESSIONAL FACTORY:
1. FEATURE:
1) Overall casting gantry and bed moving ensured the smooth operation and high precision of the machine;
2) Screw transmission and Servo drive also ensured the stability of the machine under the high power;
3) Adopting Genuine NC Studio 53B control system, also with Handle wheel;
4) PMI Linear square rail and Screw imported from Taiwan;
2. PARAMETER:
Modle: DTM-5070
Packing size: 1500x1700x1900mm
Working area: 500mm×700mm
Total power: 4Kw
N.W.: 700Kg
3. CONFIGURATION:
| Parameter | Configuration | Optional |
| Transmission | X/Y/Z:Screw |
|
| Screw No. | PMI2510 (Imported) |
|
| Guild rail | PMI 20 |
|
| Driving mode | Stepper | Servo |
| Driver | Yako 2811Ma | Estun |
| Motor | Thank 450C | Estun |
| Motor power | 400W | 750W |
| Working voltage | 220V/110V |
|
| Gantry | 10MM welded structure |
|
| Operation system | Nc Studio 53B, with Handle wheel |
|
| Spindle | 2.2KW, Water-cooling, HQD |
|
| Lubrication | Auto |
|
| Dust proof | XYZ |
|
| Table | Castings and T-slot |
|
4. TECHNICAL PARAMETER:
| NO | Index | Index | Parameter | Optional |
| 1 | Traveling | X axis | 600mm |
|
|
| Y axis | 700mm |
|
|
| Z axis | 200mm |
|
| 2 | Accuracy | Working accuracy | 0.02mm |
|
|
| Reposition accuracy | 0.02mm |
|
| 3 | Transmission | X axis | Screw |
|
|
| Y axis | Screw |
|
|
| Z axis | Screw |
|
| 4 | Speed | Max Rapid | 8000mm/min |
|
|
| Max working speed | 5000mm/min |
|
| 5 | Spindle | Spindle power | 2.2KW |
|
| (Air-cooling) | Spindle speed | 0-24000r/min |
|
| 6 | Drive mode |
| Stepper | Servo: Estun |
| 7 | Working voltage |
| AC220/50HZ |
|
| 8 | Command language |
| G Code |
|
| 9 | Operation system |
| Genuine NC Studio 53B with handle wheel |
|
5. PACKING LIST:
| No. | Name | Unit | Qty |
| 1 | NC Studio 53B card | Set | 1 |
| 2 | 10mm Allen Wrench | Pc | 1 |
| 3 | Open spanner | Set | 1 |
| 4 | Clamp screw | Set | 1 |
| 6 | Tool kit | Pc | 1 |
| 7 | Chiller CW3000 | Pc | 1 |
| 8 | Water box | Pc | 1 |
| 9 | Water pump | Pc | 1 |
| 10 | Tool setting gauge | Pc | 1 |
| 11 | Operating manual of machine | Pc | 1 |
| 12 | Certificate of quality | Pc | 1 |
| 13 | Packing list | Pc | 1 |
