| Prod Model: |
DTM-5070 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Metal |
| Engraving Machine Type: |
CNC Engraving Machine |
| Power: |
High Power |
| Drive Type: |
Stepper Drive |
| Control: |
CNC |
| Certification: |
SGS |
| Current: |
AC |
| Condition: |
New |
| Driver: |
Yako 2811mA |
| Gantry: |
Overall Casting |
Product Description

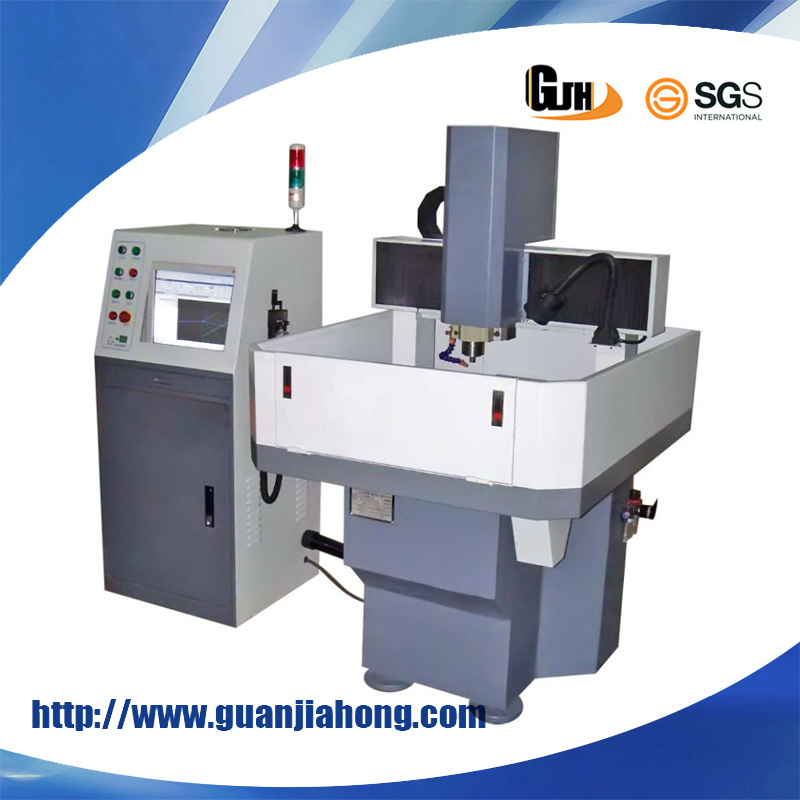

GENUINE NC STUDIO WITH HANDLE WHEEL, YAKO STEPPER, 2.2KW SPINDLE, METAL MOLD CNC ROUTER from PROFESSIONAL FACTORY:
1. FEATURE:
1) Model: DTM-5070
2)Overall casting gantry and bed moving ensured the smooth operation and high precision of the machine;
3) Screw transmission and Servo drive also ensured the stability of the machine under the high power;
4) Adopting Genuine NC Studio 53B control system, also with Handle wheel;
5) PMI Linear square rail and Screw imported from Taiwan.
2. PARAMETER:
Mode: DTM-5070
Packing size: 1500x1700x1900mm
Working area: 500mm×700mm
Total power: 4Kw
N.W.: 700Kg
3. CONFIGURATION:
| Parameter | Configuration | Optional |
| Transmission | X/Y/Z:Screw |
|
| Screw No. | PMI2510 (Imported) |
|
| Guild rail | PMI 20 |
|
| Driving mode | Stepper | Servo |
| Driver | Yako 2811Ma | Estun |
| Motor | Thank 450C | Estun |
| Motor power | 400W | 750W |
| Working voltage | 220V/110V |
|
| Gantry | 10MM welded structure |
|
| Operation system | Nc Studio 53B, with Handle wheel |
|
| Spindle | 2.2KW, Water-cooling, HQD |
|
| Lubrication | Auto |
|
| Dust proof | XYZ |
|
| Table | Castings and T-slot |
|
4. TECHNICAL PARAMETER:
| NO | Index | Index | Parameter | Optional |
| 1 | Traveling | X axis | 600mm |
|
|
| Y axis | 700mm |
|
|
| Z axis | 200mm |
|
| 2 | Accuracy | Working accuracy | 0.02mm |
|
|
| Reposition accuracy | 0.02mm |
|
| 3 | Transmission | X axis | Screw |
|
|
| Y axis | Screw |
|
|
| Z axis | Screw |
|
| 4 | Speed | Max Rapid | 8000mm/min |
|
|
| Max working speed | 5000mm/min |
|
| 5 | Spindle | Spindle power | 2.2KW |
|
| (Air-cooling) | Spindle speed | 0-24000r/min |
|
| 6 | Drive mode |
| Stepper | Servo: Estun |
| 7 | Working voltage |
| AC220/50HZ |
|
| 8 | Command language |
| G Code |
|
| 9 | Operation system |
| Genuine NC Studio 53B with handle wheel |
|
5. PACKING LIST:
| No. | Name | Unit | Qty |
| 1 | NC Studio 53B card | Set | 1 |
| 2 | 10mm Allen Wrench | Pc | 1 |
| 3 | Open spanner | Set | 1 |
| 4 | Clamp screw | Set | 1 |
| 6 | Tool kit | Pc | 1 |
| 7 | Chiller CW3000 | Pc | 1 |
| 8 | Water box | Pc | 1 |
| 9 | Water pump | Pc | 1 |
| 10 | Tool setting gauge | Pc | 1 |
| 11 | Operating manual of machine | Pc | 1 |
| 12 | Certificate of quality | Pc | 1 |
| 13 | Packing list | Pc | 1 |
Jinan Guanjiahong Trading Co., Ltd. Etablished in 2003, and located in the CNC router machine manufacturing center in China, it has rich experience for exporting business. In 2005, it invested its own factory --- Jinan DongTong CNC machinery manufacturing Co., Ltd., which is a professional manufacturer for research and development, production of CNC routers and laser machines. Our advantage products are: Woodworking, stone, metal engraving machine, CNC cutting machine, engraving and milling machine and etc. Our products selected imported original accessories, and all of them have been passed strict quality inspection. All specification can be customized.
After nearly 10 years of development, it has established a sound management system and quality guarantee system to provide customers with high quality and preferential price products sincerely.
