| Prod Model: |
ZYC or ZYZ Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Machine Size: |
8000*1400*1500mm |
| Machine Weight: |
7500kg |
| Main Power: |
15kw |
| Certificate: |
CE |
| Controlling System: |
Mitsubishi PLC & Converter |
| Roller Material: |
Cr12 Mould Steel with Quenched Treatment |
| Cutter Material: |
Cr12 Mould Steel with Quenched Treatment |
| Shafts For Rollers: |
Grand Twice, ID82mm Solid Steel |
| Operation Language: |
English or as Per Client`S Required |
| Cutting Style: |
Automatic Hydraulic Cut to Length |
| Forging Forming Method: |
Cold Roll Forming |
Product Description

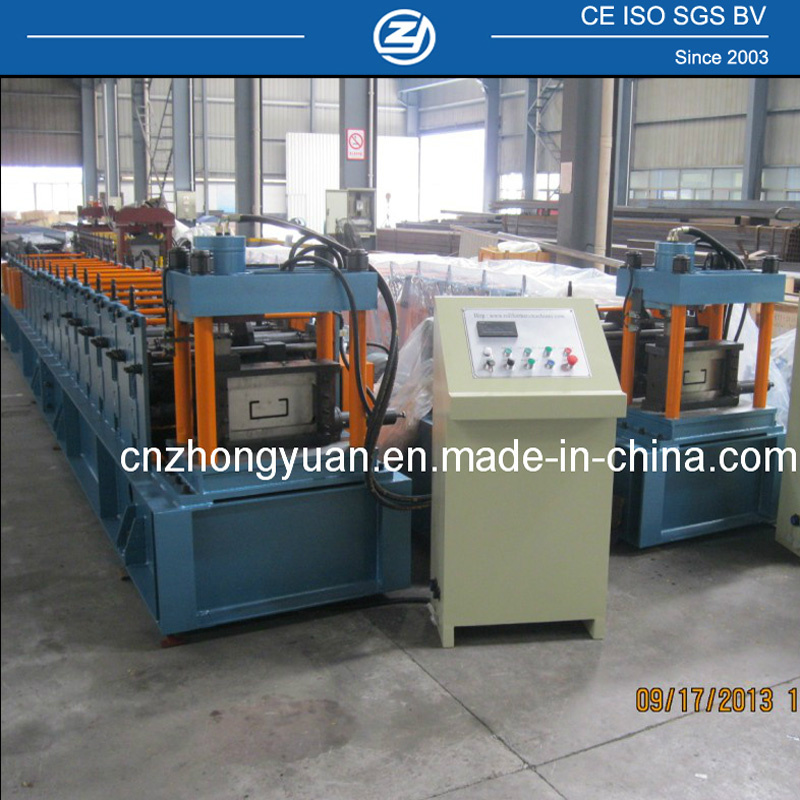

Factory Price Purlin Roll Forming Machine
This machine was designed by 15 years experienced R&D members with lifetime seivices.
1. One Purlin Forming Machine can produce many sizes of purlin.
2. Introduced Mitsubishi PLC with touch screen.
3. Need only one worker (minimum) to operate
4. Roller cover with 0.05mm chrome, ensure lifetime>10years
5. Cr12 mould steel cutter with quenched treatment. Blade with heat treatment.
6. Product cut-to-length.
Product Feature:
The C-shaped purlin formed by purlin forming machine have excellent anti-bending property and are easy to install. They are widely used as the supporter of roof and wall in large-scale and MID-scale construction, such as factory, warehouse, garage, exhibition center, cinema, theatre, garden.
Main technical parameters:
| Factory Price Purlin Roll Forming Machine |
| Item | Specification |
| Material | Type | Cold-rolled steel strip or
heat-treated galvanized steel strip |
| Thickness(mm) | 1.5 -3.0 |
| Yield strength(mpa) | 235 -345 |
| Roller material | Cr12 mould steel with quenched treatment |
| Forming speed(m/min) | About 10-12m/min |
| Speed adjusting mode | AC Frequency |
| Roller drive | Decelerating motor + Chain drive |
| Cutting mode | Hydraulic cutting |
| Cutter material | Cr12 mould steel with quenched treatment |
| Length measurement | Encoder |
| Control mode | Mitsubishi PLC |
| Operating mode | Button + Mitsubishi Touch screen |
| Main motor power(kw) | 15 KW (Depend on final design) |
| Hydraulic station power | 5.5K W (Depend on final design) |
| Total power(kw) | 20.5KW |
| Uncoiler's loading capacity | Max. Capacity: 3000kgs |
| Machine weight | About 7500kgs |
| Machine size | About 8*1.4*1.5m (Depend on final design) |
| Components of machine: |
| Decoiler | 1set |
| Feeding & guiding device | 1set |
| Pre-cutting device | 1set |
| Main roll forming machine | 1set |
| Punching equipment | 1set |
| Hydraulic cutting system | 1set |
| PLC Controlling system | 1set |
| Run out table | 1set |
| Process flow: |
| Decoiling the sheet → Leveling sheet→ Roll forming→ Punching--Measure length and cutting→ the Purline to the supporter |
Packing:
1. One 40feet container for loading one set machine with mechanical decoiler.
2. Main machine body and decoiler is load naked (tighten to container with steel wire rope).
3. Spare parts and operating tools are loading in tooling box.
Delivery : about 50 days after received advanced payment.
WHy us?
We care about QUALITY
1. ISO, CE certificate
2. Electric elements: Mitsubishi PLC & transducer from Japan.
Rollers: High grade No. 45 forged steel. Plated with 0.05mm hard chrome
Active shaft: High grade No. 45 carbon wrought steel. Well resisting.
Cutter blade: Cr12 mould steel with quenched treatment
Precision: shafts are tooled by grinding machine at least twice. Rollers are CNC processed.
We care about USER EXPERIENCE
Controller is the "CPU" of forming machine. We choose Mitsubishi PLC from Japan.
With touch screen mode, let your workers enjoy the easy operation;
With auto working mode, let your workers free their hands!
We care about YOUR CONCERN
Delivery: in only 5-8 weeks
Container was sealed
Machine installing and training: engineer overseas sevices
Inspecting and testing machine: before shiping
We care about the "SPECIAL"
Can not find the machine you need? Why not customize it!
We have: 12 years experience in making roll forming machine
15 years experience engineers
About us
We are professional in making roll forming machines since 2003. Company occupies 6650, in which 5650 for workshops.
1. Capacity: 12-15 sets/month
2. Delivery: in only 5-8 weeks for urgent order
3. Have our own tool center. 12 sets CNC machines.
4. Zhongyuan is a "All-in-house source"
--from raw material to the final high-precision forming machine. We have our precise tooling center.
5. You can rely on our team!
We have engineers with experience more than 15 years in metal forming industry.
Get Free:
"Send" below get profile drawing & design technical support by our 15 year experience technicians FOR FREE!
FAQ:
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome your visit us and test machine by yourself in our factory.
6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided).
Established in 2003, Zhongyuan Machinery Factory is experienced manufacturer of metal forming machinery with ISO quality system. We offer a vast range of products, including in sandwich panel line, metal tile forming machine, cladding forming machine, metal decking forming machines, etc. We also can supply steel coils, EPS sandwich panels, PU sandwich panels to suit diverse requirements of our global customers.
At Zhongyuan, our R&D department is staffed with senior engineers who has more than 10 years experience in metal forming machine industry, So we are able to assist customers with professional designing and solution. And more, Our own tooling center is equipped with CNC turning-lathes, Grinding machine for roller shaft, Heavy planing machine, etc, which allow us to complete the majority of our processing procedures on-site. So we can better control the machine quality and delivery time of machines. All our forming machines are undergoes a series treatments, like cutting frames with heat treatment to remove stress of steel, to ensure all our performance requirements are met.
At Zhongyuan, we endeavor to provide quality built metal forming machines at economical prices. By purchasing qualified raw materials from suppliers which we have long term relationships with, we greatly reduce our material cost. Our company is located in Hangzhou City, about 2 hours from Shanghai and 1.5 hours from Ningbo port. This location allows us to ship products quickly and economically to our customers all over the world. As a result, we are able to satisfy our customers with both a high quality and economical metal forming machines.
Today, we have established lasting business relations with customers in more than 20 countries, such as America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Australia, Fiji, Papua New Guinea, Kuwait, Syria, Oman, U. A. E, Nigeria, Tanzania, Ethiopia, Gana, South Sudan, Algeria, Niger, Philippines, Indonesia, India, and others.
We have rich experience for metal forming machine solution, competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.
