| Prod Model: |
KS-P2660 |
| Markets: |
South America,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
Product Description
PUNCHING MACHINE
ALUMINUM PUNCHING MACHINE

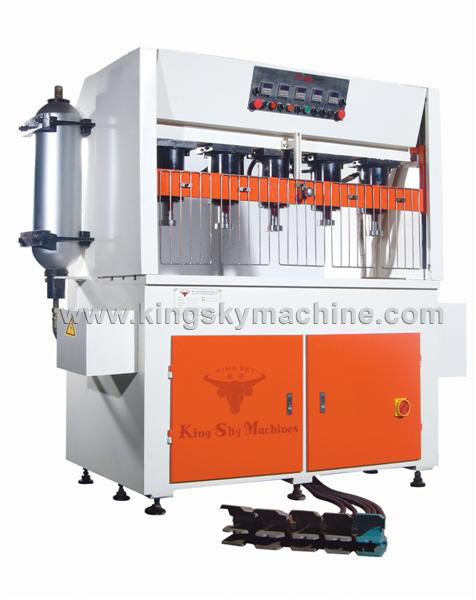

Five-cylinder hydraulic pressure punching machine is mainly used together with single mould and combination mould of aluminum alloy door and window series to finish the punching processing of all the holes and notches of various corresponding common profile and insulation profile . There is pressure compensating device equipped with the part of hydraulic power, i.e. the energy accumulator, to ensure that rated working pressure can be reached when five oil cylinders work at the same time. It is characterized by stable blanking, high speed and efficiency, pollution-free and high precession and possesses the function of automatic scrap discharge. The worktable is large and it is quick, convenient, safe and reliable to replace the mould.
TECHNICAL PARAMETER
Model | KS-P2660 Five-cylinder hydraulic punching machine |
Number of hydraulic oil cylinder | 5pcs |
Worktable Dimension (L*W) | 1340X420mm |
Maximum punching stroke | 50mm |
Diameter of oil cylinder | 140mm |
Maximum height of mould | 260mm |
Capacity of oil tank | 130L |
Power of electric motor | 5.5kW |
Maximum punching shear force | 5x12000kg |
Rated pressure of hydraulic oil pump | 16MPa |
Working power supply | Tri-phase 380VAC 50Hz |
Overall Dimension (L*W*H) | 1830x900x1900mm |
Machine Weight | 1800kg |
Foshan Kingsky Machinery Co., Ltd. is established by Hong Kong AUSDA International Group Co., Ltd. The company is professional in aluminum processing machinery business integrates R & D, Production, marketing, maintence and aluminum processing technology. The company has a total building area of over 50000 square meters and has staff more than 300 members.
By virtue of advanced techonlogies of German Bosch Group Co., Ltd. We developed and produced the 4-Axis CNC Auto- Feeding Drilling Milling and Cutting Machine, CNC heavy-duty arc bending machine, Four Rolls Plate Bending Machine. These machines have filled the gap and in a leading of the domestic production of the 3-axis, 4-axis, 5-axis machining center for aluminum profile processing. Also, the company is the first one developed a whole production line of alu-wood windows & doors and solutions in China.
The machinery produced by KingSky have passed the international CE prove and SGS testing, and the overall indicators have reached a international advanced level.
The products are warmly welcomed by the users home and adroad for it's advanced technology, high quality, reasonalbe price and excellent after sales service. The products already exported to more than 30 countries around the world in the Europe, Americal, Southeast Asia, The Middle East and Africa etc.
KingSky is a Global Supplier for aluminum window, door, curtain wall and aluminum profiles processing machinery!
