| Prod Model: |
KS-Y135A / KS-Y135 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

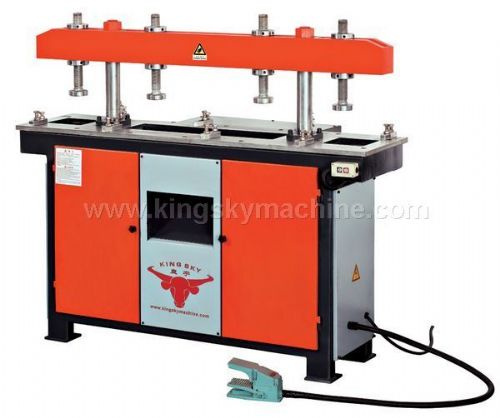

Window machine series.
This machine can be collocated with single or combination mold of aluminium doors and windows to punch all kinds of holes and gap of normal and heat-insulating profile, strip-type design with multifunction and 4 working procedures of single mold(max. 5), good stability, pressure balancing, high efficiency and reliablity, low noise, no pollution, big punching force and adaptive capacity, and safe, fast, convenient mold replacement.
|
Model |
KS-Y135A
Single-cylinder Hydraulic Punching Machine |
KS-Y135
Two-cylinder Hydraulic Punching Machine |
|
Number of punching positions |
12pcs |
12pcs |
|
Maximum closed height |
280mm |
280mm |
|
Minimum closed height |
140mm |
140mm |
|
Maximum punching stroke |
60mm |
60mm |
|
Diameter of oil cylinder |
80mm |
80mm |
|
oil tank Capacity |
40L |
55L |
|
Power of electric motor |
2.2Kw |
5.5Kw |
|
Maximum punching shear force |
8000Kg |
16000Kg |
|
Working Voltage |
380VAC/50HZ |
380VAC/50HZ |
|
Overall Dimension (L*W*H) |
1550X730X1280mm |
1550X770X1280mm |
|
Machine Weight |
800kg |
1000kg |
Foshan Kingsky Machinery Co., Ltd. is established by Hong Kong AUSDA International Group Co., Ltd. The company is professional in aluminum processing machinery business integrates R & D, Production, marketing, maintence and aluminum processing technology. The company has a total building area of over 50000 square meters and has staff more than 300 members.
By virtue of advanced techonlogies of German Bosch Group Co., Ltd. We developed and produced the 4-Axis CNC Auto- Feeding Drilling Milling and Cutting Machine, CNC heavy-duty arc bending machine, Four Rolls Plate Bending Machine. These machines have filled the gap and in a leading of the domestic production of the 3-axis, 4-axis, 5-axis machining center for aluminum profile processing. Also, the company is the first one developed a whole production line of alu-wood windows & doors and solutions in China.
The machinery produced by KingSky have passed the international CE prove and SGS testing, and the overall indicators have reached a international advanced level.
The products are warmly welcomed by the users home and adroad for it's advanced technology, high quality, reasonalbe price and excellent after sales service. The products already exported to more than 30 countries around the world in the Europe, Americal, Southeast Asia, The Middle East and Africa etc.
KingSky is a Global Supplier for aluminum window, door, curtain wall and aluminum profiles processing machinery!
