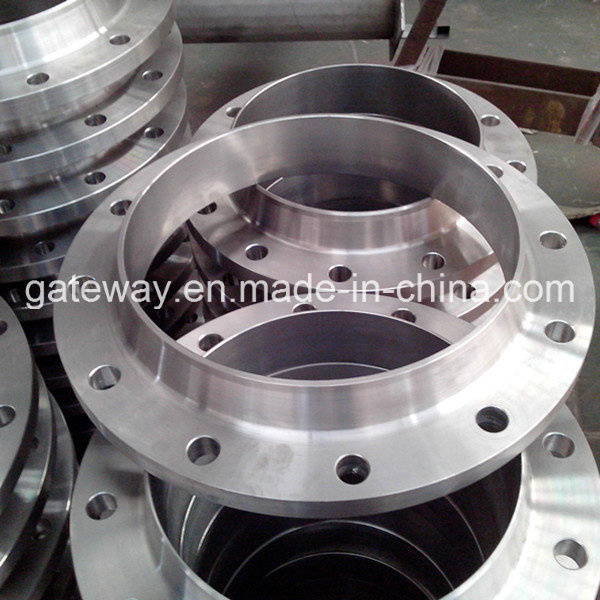

Flange

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Stainless Steel
Type:	Welding Flange
Standard:	GB
Manufacturing Way:	Forging

Product Description

1.Type
Welding Neck Flange, Slip On Flange, Blind Flange, Socket Welding Flange, Threaded Flange, Reducing Flange, Spectacle Blind Flange, Orifice Flange  Special flanges according to drawing
2.Connect Face
Raised face, Flat Face, Male& Female face, Tongue and Groove face, Ring Type Joint face, etc
3.Pressure:
150#, 300#, 600#, 900#,1500# ,5K,10K,16K,20K.DIN2573, 2572, 2631, 2576, 2527, 2632, 2543, 2527, 2633, 2545, 2527, 2635, 2634,
4.Executive Standard
ASME B16.5 ,B16.36,B16.47,B16.48, ANSI/AWWA C207, API 605,API590, EN1092 , EN1759, EN 1514, DIN 2848,DIN2874,BS1560,BS3293, BS4504 ,ISO7005, JIS B2220 JIS2216 JPI 7S-15 SABS 1123.
5.Material
A105/A105N, A182 F11,F12,F304,F304L,F316L, A350 LF1,LF2,LF3,LF5,LF9;A694F42,F46,F48,F52,F60,F70,P245GH,P280GH,P305GH
6.Surface Treatment and Packing
Paint Black Lacquer or Transparent Oil .Wooden Case or Wooden Pallet or as per customers' requirements.
7.Payment :30%T/T in advance, balance after BL copy.
8.Minimal qty of order:5pcs
9.Origin:China

Hebei Yupeng Heavy Industry Piping Equipment Co., Ltd.With more than 20 years experience in Steel Pipe Fittings field is an Top pipeline equipment manufacturing enterprise in north of China.First Grade Project Supplier of CNPC , SINOPEC, CNOOC , Shell Oil, Coal Chemical, Coal Liquefaction, Electric Power fertilizer industry, ship building, onshore platform etc .With years' of manufacturing experience , advanced production equipment and systematic inspection device , wide products series and devotion to R&D , we are ready to be your partner in steel butt weld pipe fittings industry.

The General ASTM Material For Flanges
Class and Sort		Chemical Components %								Mechanical Property
		C(Max)	Si(Max)	Mn(Max)	Cr(Max)	Ni(Max)	Mo(Max)	P(Max)	S(Max)	Tensile Strength      mpa(Min)	Yield Strength     mpa(Min)	Elongation     mpa(Min)	Hardness    (Max)	ψ %
ASTM  A105/A105M	A105	0.35	0.10-0.35	0.65-1.05	0.30	0.40	0.12	0.035	0.040	485	250	22	187	30
ASTM A182/A182M	F11CL1	0.05-0.15	0.50-1.00	0.30-0.60	1.00-1.50	...	0.44-0.65	0.030	0.030	415	205	20	121-174	45
	F11CL2	0.10-0.20	0.05-1.00	0.30-0.80	1.00-1.50	...	0.44-0.65	0.040	0.040	485	275	20	143-207	30
	F11CL3	0.10-0.20	0.05-1.00	0.30-0.80	1.00-1.50	...	0.44-0.65	0.040	0.040	515	310	20	156-207	30
	F12CL1	0.05-0.15	0.50	0.30-0.60	0.80-1.25	...	0.44-0.65	0.045	0.045	415	220	20	121-174	45
	F12CL2	0.10-0.20	0.10-0.60	0.30-0.80	0.80-1.25	...	0.44-0.65	0.040	0.040	485	275	20	143-207	30
	F304	0.08	1.00	2.00	18.0-20.0	8.0-11.0	...	0.045	0.030	515	205	30	...	50
	F304H	0.04-0.10	1.00	2.00	18.0-20.0	8.0-11.0	...	0.045	0.030	515	205	30	...	50
	F304L	0.030	1.00	2.00	18.0-20.0	8.0-13.0	...	0.045	0.030	485	170	30	...	50
	F316L	0.030	1.00	2.00	16.0-18.0	10.0-15.0	...	0.045	0.030	485	170	30	...	50
	F317	0.08	1.00	2.00	18.0-20.0	11.0-15.0	...	0.045	0.030	515	205	30	...	50
	F321	0.08	1.00	2.00	17.0-19.0	9.0-12.0	...	0.045	0.030	515	205	30	...	50
	F347	0.08	1.00	2.00	17.0-19.0	9.0-13.0	...	0.045	0.030	515	205	30	...	50
