Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Material: |
Stainless Steel |
Type: |
Welding Flange |
Standard: |
GB |
Manufacturing Way: |
Forging |

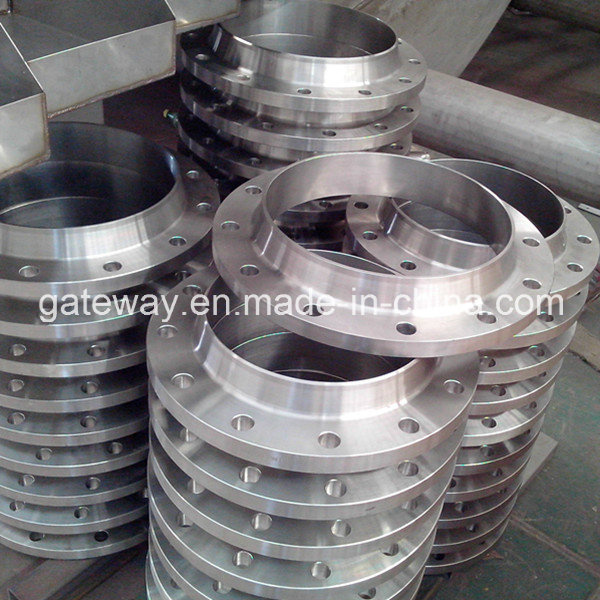

Product Description
1.Type
Welding Neck Flange, Slip On Flange, Blind Flange, Socket Welding Flange, Threaded Flange, Reducing Flange, Spectacle Blind Flange, Orifice Flange Special flanges according to drawing
2.Connect Face
Raised face, Flat Face, Male& Female face, Tongue and Groove face, Ring Type Joint face, etc
3.Pressure:
150#, 300#, 600#, 900#,1500# ,5K,10K,16K,20K.DIN2573, 2572, 2631, 2576, 2527, 2632, 2543, 2527, 2633, 2545, 2527, 2635, 2634,
4.Executive Standard
ASME B16.5 ,B16.36,B16.47,B16.48, ANSI/AWWA C207, API 605,API590, EN1092 , EN1759, EN 1514, DIN 2848,DIN2874,BS1560,BS3293, BS4504 ,ISO7005, JIS B2220 JIS2216 JPI 7S-15 SABS 1123.
5.Material
A105/A105N, A182 F11,F12,F304,F304L,F316L, A350 LF1,LF2,LF3,LF5,LF9;A694F42,F46,F48,F52,F60,F70,P245GH,P280GH,P305GH
6.Surface Treatment and Packing
Paint Black Lacquer or Transparent Oil .Wooden Case or Wooden Pallet or as per customers' requirements.
7.Payment :30%T/T in advance, balance after BL copy.
8.Minimal qty of order:5pcs
9.Origin:China
Hebei Yupeng Heavy Industry Piping Equipment Co., Ltd.With more than 20 years experience in Steel Pipe Fittings field is an Top pipeline equipment manufacturing enterprise in north of China.First Grade Project Supplier of CNPC , SINOPEC, CNOOC , Shell Oil, Coal Chemical, Coal Liquefaction, Electric Power fertilizer industry, ship building, onshore platform etc .With years' of manufacturing experience , advanced production equipment and systematic inspection device , wide products series and devotion to R&D , we are ready to be your partner in steel butt weld pipe fittings industry.
The General ASTM Material For Flanges |
|
Class and Sort | Chemical Components % | Mechanical Property |
|
C(Max) | Si(Max) | Mn(Max) | Cr(Max) | Ni(Max) | Mo(Max) | P(Max) | S(Max) | Tensile Strength mpa(Min) | Yield Strength mpa(Min) | Elongation mpa(Min) | Hardness (Max) | ψ % |
ASTM A105/A105M | A105 | 0.35 | 0.10-0.35 | 0.65-1.05 | 0.30 | 0.40 | 0.12 | 0.035 | 0.040 | 485 | 250 | 22 | 187 | 30 |
ASTM A182/A182M | F11CL1 | 0.05-0.15 | 0.50-1.00 | 0.30-0.60 | 1.00-1.50 | ... | 0.44-0.65 | 0.030 | 0.030 | 415 | 205 | 20 | 121-174 | 45 |
F11CL2 | 0.10-0.20 | 0.05-1.00 | 0.30-0.80 | 1.00-1.50 | ... | 0.44-0.65 | 0.040 | 0.040 | 485 | 275 | 20 | 143-207 | 30 |
F11CL3 | 0.10-0.20 | 0.05-1.00 | 0.30-0.80 | 1.00-1.50 | ... | 0.44-0.65 | 0.040 | 0.040 | 515 | 310 | 20 | 156-207 | 30 |
F12CL1 | 0.05-0.15 | 0.50 | 0.30-0.60 | 0.80-1.25 | ... | 0.44-0.65 | 0.045 | 0.045 | 415 | 220 | 20 | 121-174 | 45 |
F12CL2 | 0.10-0.20 | 0.10-0.60 | 0.30-0.80 | 0.80-1.25 | ... | 0.44-0.65 | 0.040 | 0.040 | 485 | 275 | 20 | 143-207 | 30 |
F304 | 0.08 | 1.00 | 2.00 | 18.0-20.0 | 8.0-11.0 | ... | 0.045 | 0.030 | 515 | 205 | 30 | ... | 50 |
F304H | 0.04-0.10 | 1.00 | 2.00 | 18.0-20.0 | 8.0-11.0 | ... | 0.045 | 0.030 | 515 | 205 | 30 | ... | 50 |
F304L | 0.030 | 1.00 | 2.00 | 18.0-20.0 | 8.0-13.0 | ... | 0.045 | 0.030 | 485 | 170 | 30 | ... | 50 |
F316L | 0.030 | 1.00 | 2.00 | 16.0-18.0 | 10.0-15.0 | ... | 0.045 | 0.030 | 485 | 170 | 30 | ... | 50 |
F317 | 0.08 | 1.00 | 2.00 | 18.0-20.0 | 11.0-15.0 | ... | 0.045 | 0.030 | 515 | 205 | 30 | ... | 50 |
F321 | 0.08 | 1.00 | 2.00 | 17.0-19.0 | 9.0-12.0 | ... | 0.045 | 0.030 | 515 | 205 | 30 | ... | 50 |
F347 | 0.08 | 1.00 | 2.00 | 17.0-19.0 | 9.0-13.0 | ... | 0.045 | 0.030 | 515 | 205 | 30 | ... | 50 |
FOSHAN GUOSHENGWEI METAL PRODUCTS Co., Ltd Located in NO. 20, BLOCK 3, BLOCK F, LIYUAN METAL LOGISTICS MALL, CHENCUN, SHUNDE DIST, FOSHAN, GUANGDONG, China (MAINLAND), it is near the carton fair. The area of our factory is 17, 000 square meters, which is a professional processing manufacturer of all kinds of the customized metal products. Specializing in making Storage Tank, Pressure Vessel, Tank Head, Welded Pipe and providing the shearing, bending, polishing, welding and laser cutting service. We specialize in this field for 15 years, provide all kinds of OEM and ODM service. In other word, all of the metal products can be drawing customized. As long as you send a drawing or a sample to us, we can make for you.
Our products application in food, wine fermentation, medical, Laboratory, device, petroleum and chemical industry, Painting industrial and the other field.
Our company has many professional and technical personnel and production equipment, advanced technology which make our products are exported to all over the world. With the strength of production, research and development, our company has become a large professional manufacturer of metal processing enterprises.
