| Prod Model: |
Flexible coupling shaft |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Western Europe |
| Material: |
Aluminum |
| Certification: |
ISO9001: 2000 |
Product Description

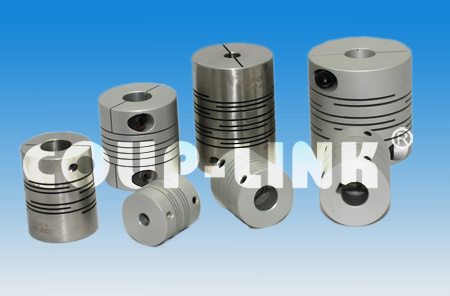

Coupling features:
One-piece metallic spring coupling;
Zero backlash;
Absorption of parallel, angular misalignemnts and shaft end-play by spring action;
Material: Aluminum alloy and stainless steel
Coupling capacity:
Transfer nominal torque tn=0.5~14.0n. M
Allowable speed n=6000~10000rpm
High resistance, constant velocity turning.
0.1mm limited radial deviation: 0.1mm
2.0° Limited angle deviation:
± 0.15mm limited axle deviation: ± 0.15mm
Stainless steel with high causticity character and widely apply to coder and mini motor transmission.
Integration, minitype, low inertia.
There are our goods of informations by the following:
1. Minimum order 10PCS
2. Delivery time 7 working days.
3. Price term T/T or Western Union
4. Quality Aluminum alloy - 6011, 7075 5. Screw is imported from Taiwan and plastic is imported from Germany.
Stainless steel - 303
Steel - 45
6. We passed ISO9001: 2000 international quality management.
7. Our brand is COUP-LINK made in China.
8. No complaint about customers and keep on time to delivery the goods.
9. The price is the most competitive in the market with excellent quality.
10. We always promise the excellent quality of goods like our good service for customers.
Guangzhou Link Automation Equipment Co., Ltd is a coupling manufacture enterprise. The company mainly produces high-quality couplings, such as servomotor couplings\step motor couplings\Micro motor couplings and encode couplings. Due to our advanced technological processes, superior designing and R&D teams, excellent processing equipment and testing/inspecting facilities, and sound quality assurance systems and passed ISO9001: 2000 International Quality Management system, now the couplings have fifteen series, are available for different high precise drive connecting, the products had been exported to Taiwan\ Indonesia, Singapore, Malaysia and Iran.
